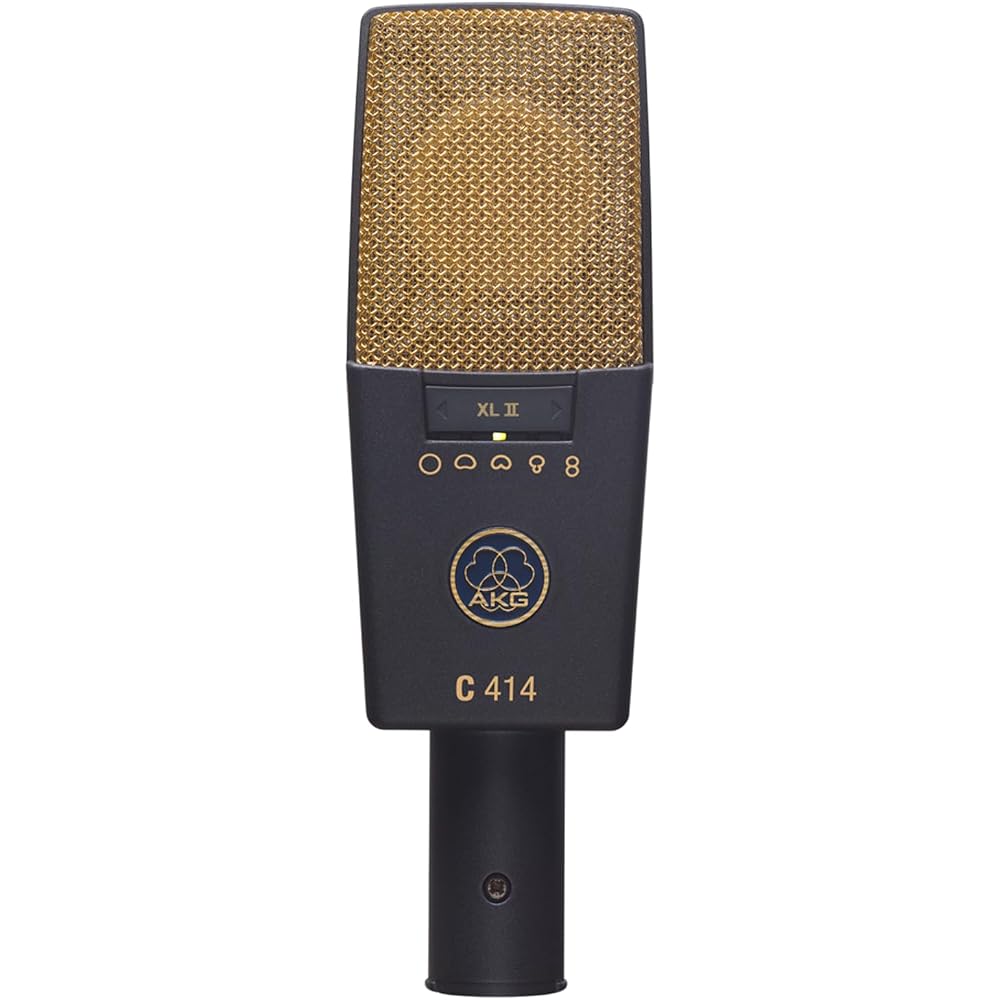

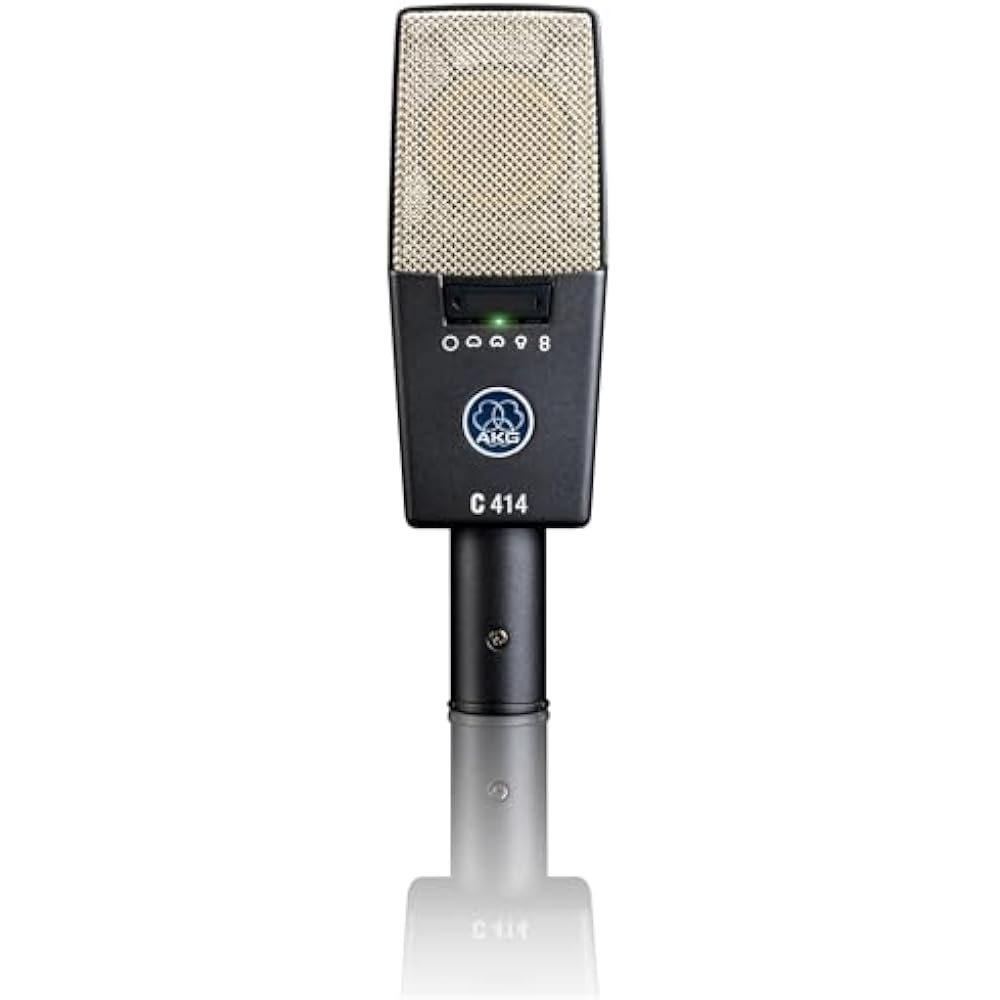

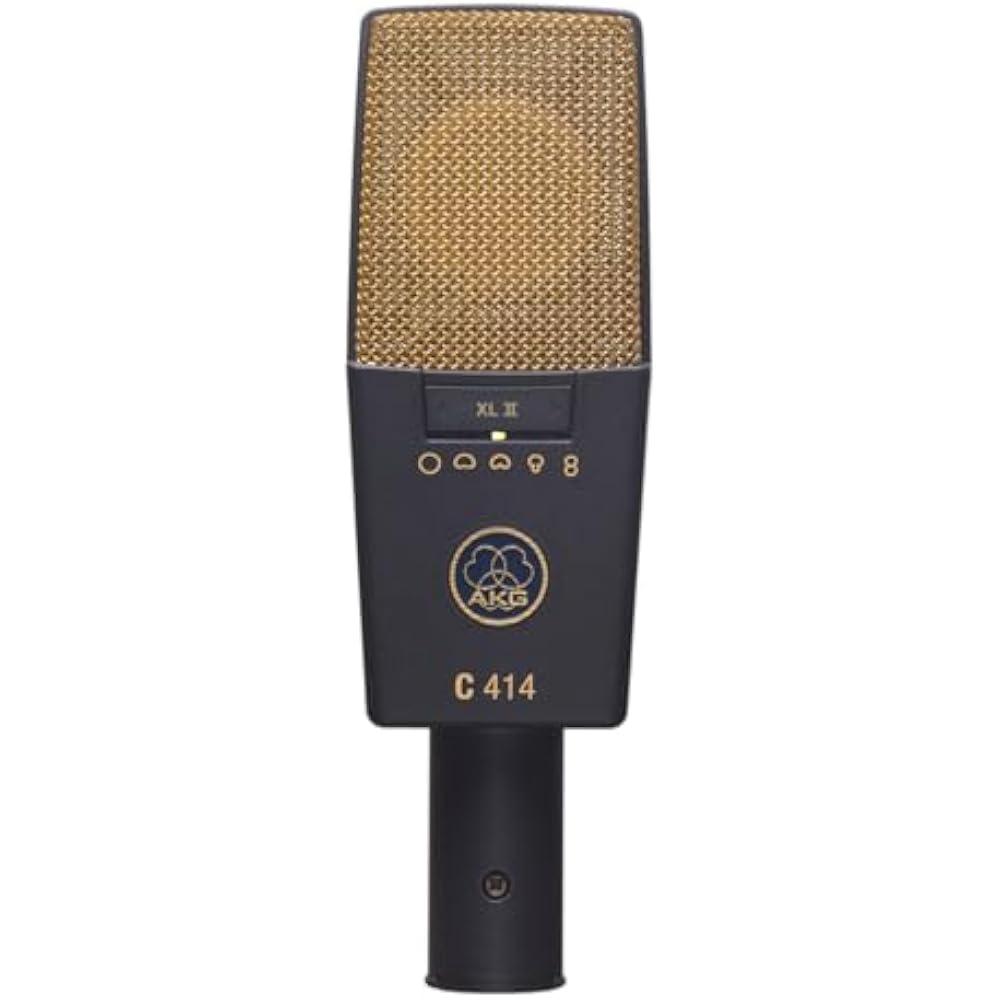

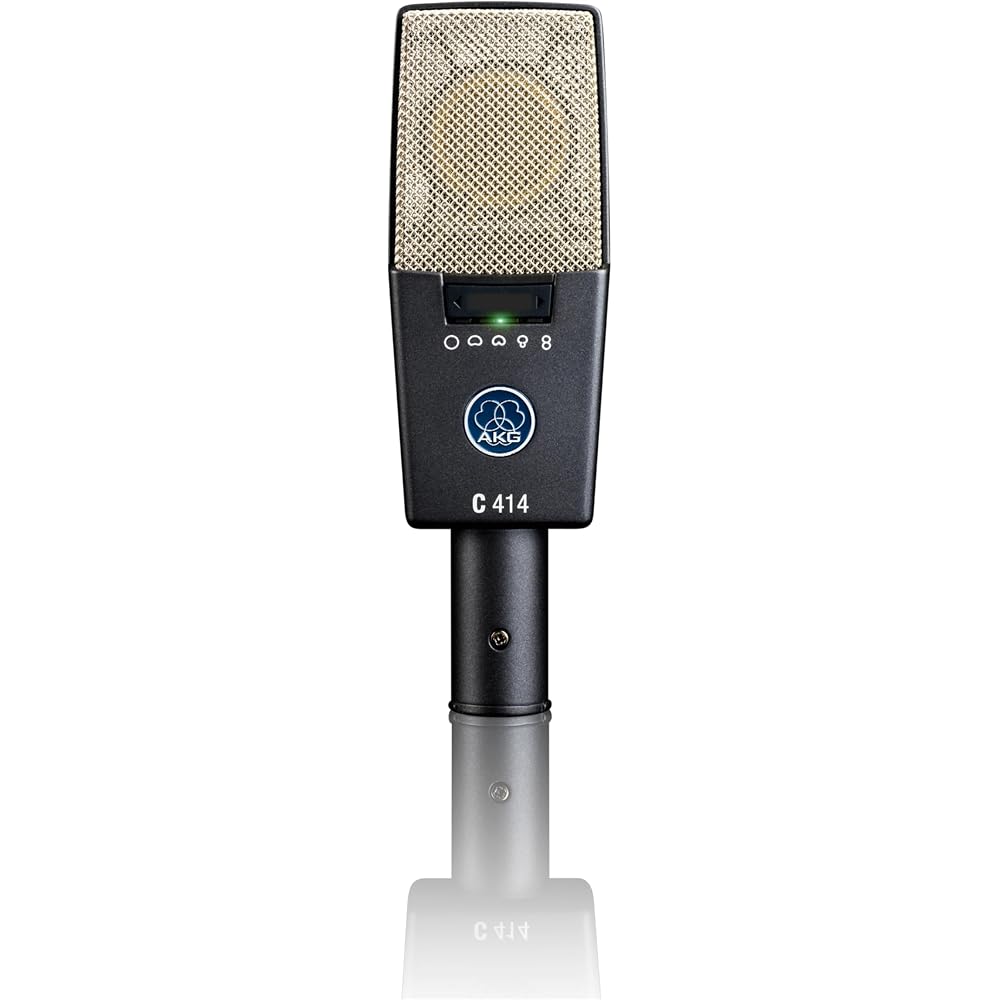

AKG C414 XL II Side Address Condenser Microphone

AKG C414 XL II Side Address Condenser Microphone

It follows the characteristics of the “C12” and produces a brilliant sound with a strong presence between omnidirectional/wide cardioid/cardioid/hypercardioid/bidirectional

Product introduction

AKG C414XL II Side Address Condenser Microphone It follows the characteristics of the “C12,” which was the predecessor of the C414. A brilliant sound that enhances the appeal of the original sound is output due to high-rise characteristics raised at 4 kHz or more. Perfect for parts of an ensemble where you want to stand out from the rest of the sound sources. The sound quality is unconventional, and can be used for various sound sources such as vocals, guitars, wind instruments, and pianos.

The dual diaphragm configuration in which the two diaphragms are arranged in close proximity and in parallel minimizes the effects of proximity effects. Clear sound collection is possible across the entire band. Effects of external noise, temperature, humidity, etc. are reduced by adopting transformerless circuits, high-quality mounting parts, and an all-metal chassis. An extremely low equivalent noise level of 6 dB is achieved, and even fine sound signals are collected. The maximum sound pressure level reaches 140 dB, making it compatible with sound sources with high sound pressure. It is also equipped with a pad that can be switched between 4 levels. Directivity can be selected from 9 levels, and optimal settings are possible according to the usage environment. An elastic suspension that supports the diaphragm at 4 points using rubber is adopted, and countermeasures against vibration noise are also perfect. If the attached holder with suspension is used together, sound collection with clearer sound quality can be achieved. Equipped with a 4-stage switchable low-cut filter with a lock function. It also has an LED that lights up just before the output is overloaded, making it useful even in live scenes. A windscreen and pop screen are included as standard to suppress the effects of pop noise.

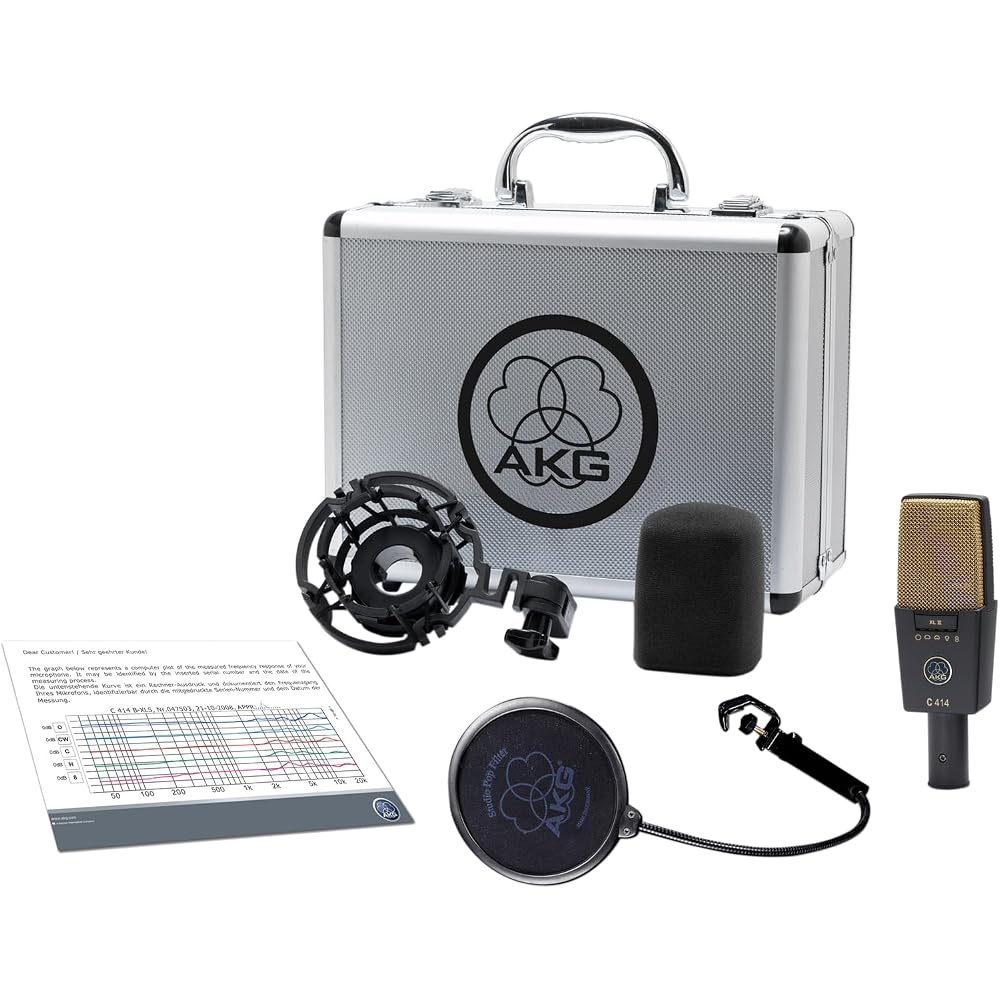

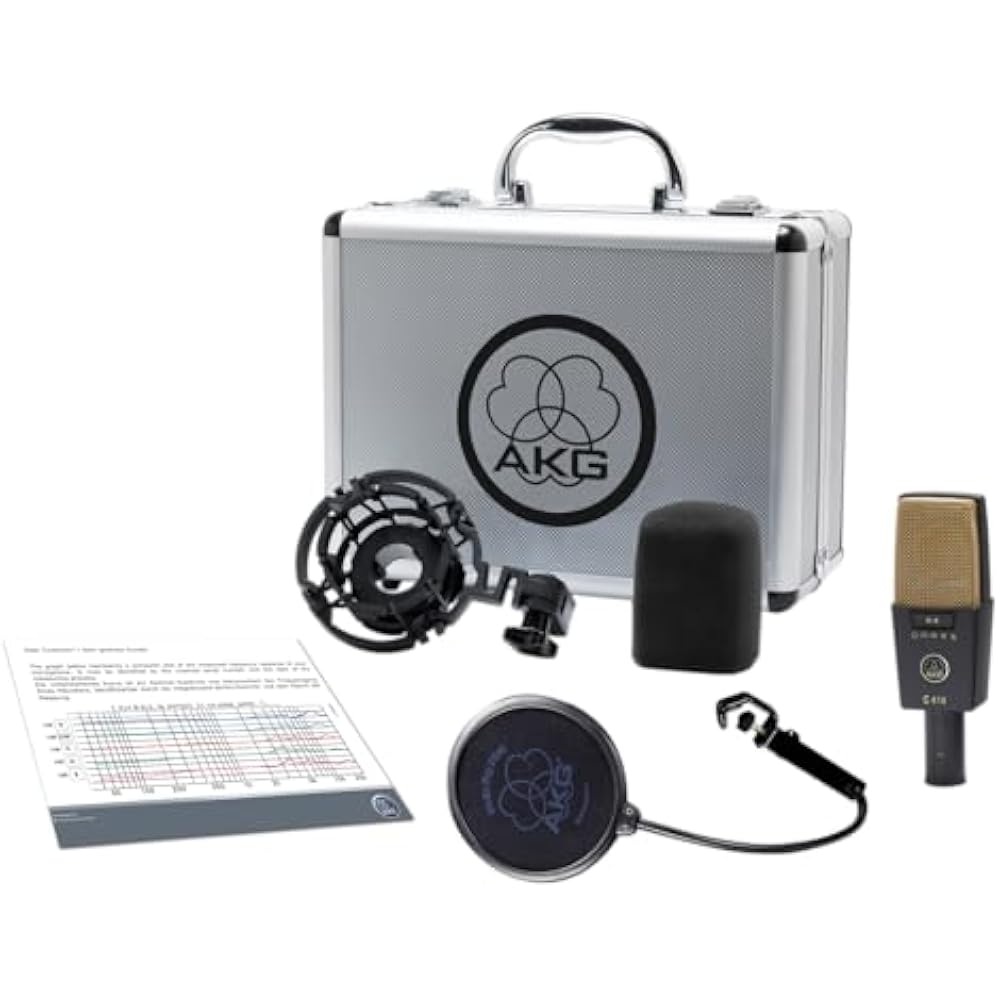

Type Condenser Directional characteristics between omnidirectional/wide cardioid/cardioid/hypercardioid/bidirectional Frequency characteristics 20Hz~20kHz Open circuit sensitivity - 33 dB re 1 V/Pa (± 0.5 dB) Maximum sound pressure level 140dB SPL (pad off, THD 0.5%) Equivalent noise level 6 dB SPL (A weight) Pad 0/6/12/18dB Low cut filter Flat/40Hz (12dB/oct) /80Hz (12dB/oct) /160Hz (6dB/oct) Impedance 200 ohms or less Power phantom DC48V/approx. 4.5 mA Connector XLR 3-pin Dimensions (W×H×D) 50×160×38mm Weight 300g accessory Holder with suspension (H85) windscreen (W414) Pop screen (PF80) *The PF80 is not included with the stereo pair. Characteristics data sheet fabric pouches carrying hard case

Note (Disclaimer) > Please be sure to read

Since this is a condenser microphone, a power supply [phantom DC48V/approx. 4.5 mA] is required
