Product description

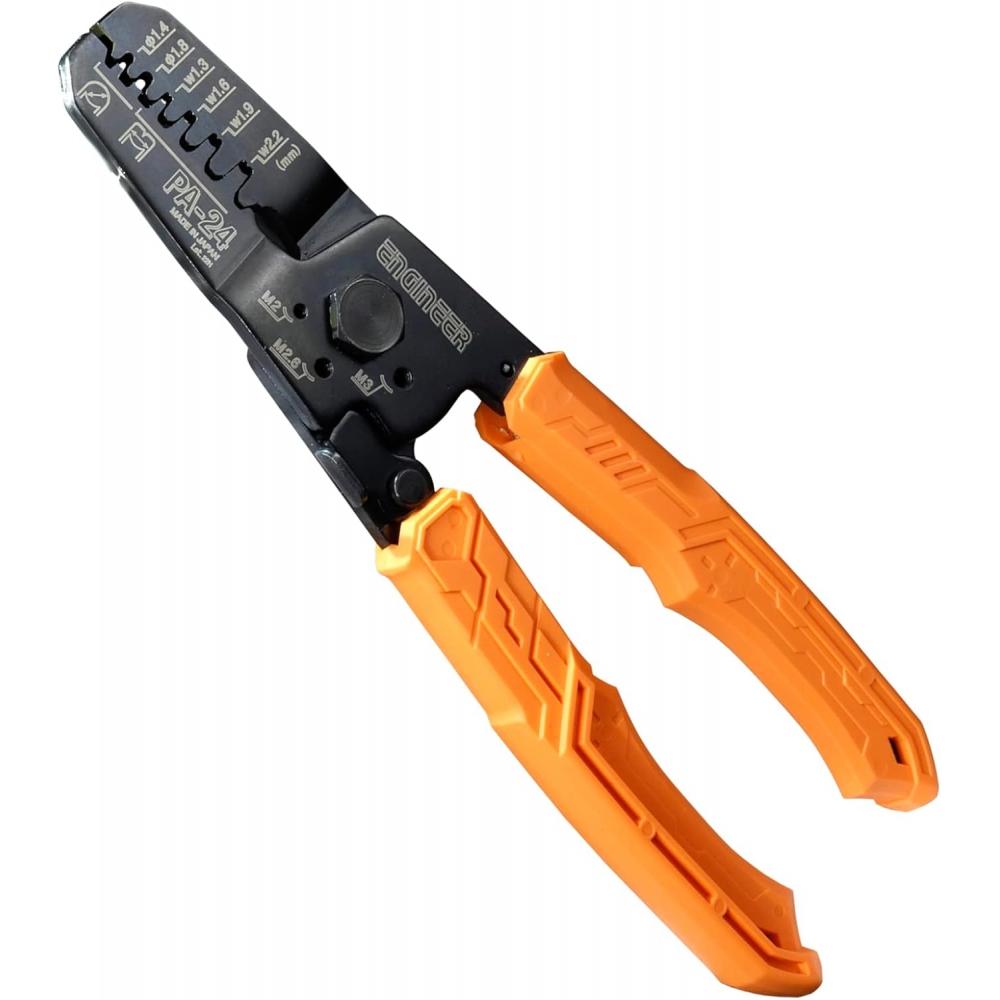

Crimping pliers suitable for crimping small open barrel terminals and QI terminals with high precision dies.
[Features]
Equipped with 2 types of dice: M-shaped dice and round dice.

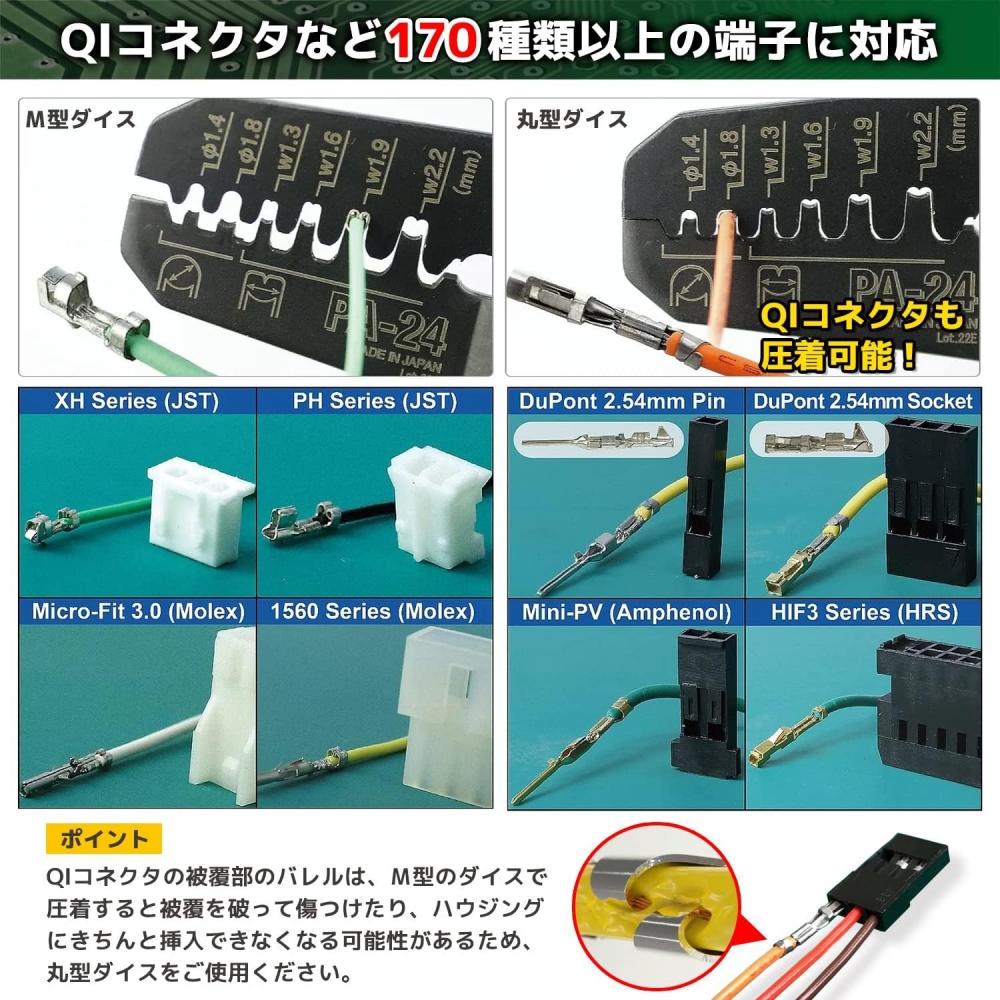

Since core barrels and coated wire barrels are individually crimped, over 170 types of terminals can be crimped with high accuracy.
It has high visibility during crimping and prevents poor crimping.
Compact design that fits in the palm of your hand
Equipped with a bolt cutter, the length of the machine screw can be adjusted.
The grip is an environmentally friendly elastomer with excellent oil resistance. Designed grips that fit well in the hand.
[Applications]
For crimping small open barrel terminals.
For crimping QI terminals.
Harness prototyping and connector repair
[Specs]

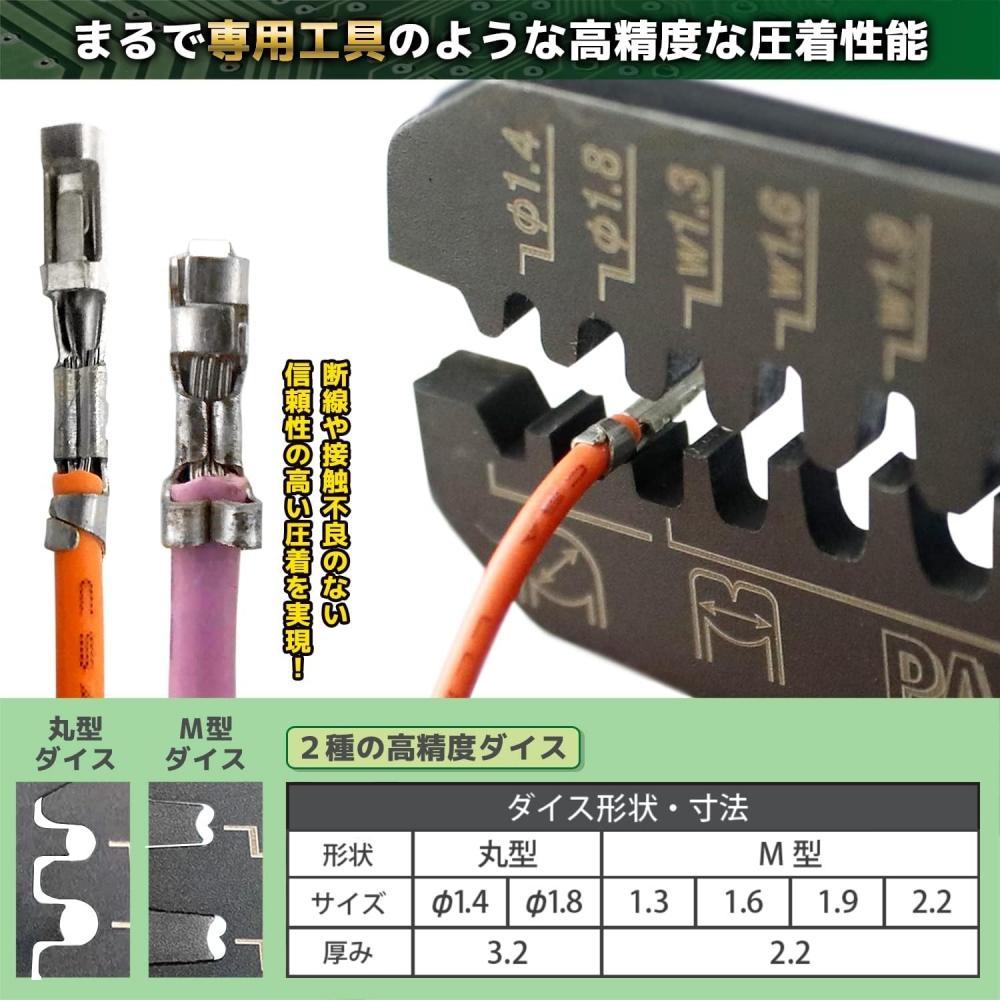

die width: round/φ1.4, φ1.8, M-type/1.3, 1.6, 1.9, 2.2 mm
Total length: 160mm
Grip Width:48mm
weight: 115g
{'isProductSummaryAvailable': false, 'device': 'desktop'}
Precision crimping pliers compatible with small open barrel terminals and QI connectors.
With the high-precision die, over 170 types of terminals can be crimped cleanly as if it were a special tool.
Compact design that fits in the palm of your hand Total length: 160 mm; weight: 115 grams

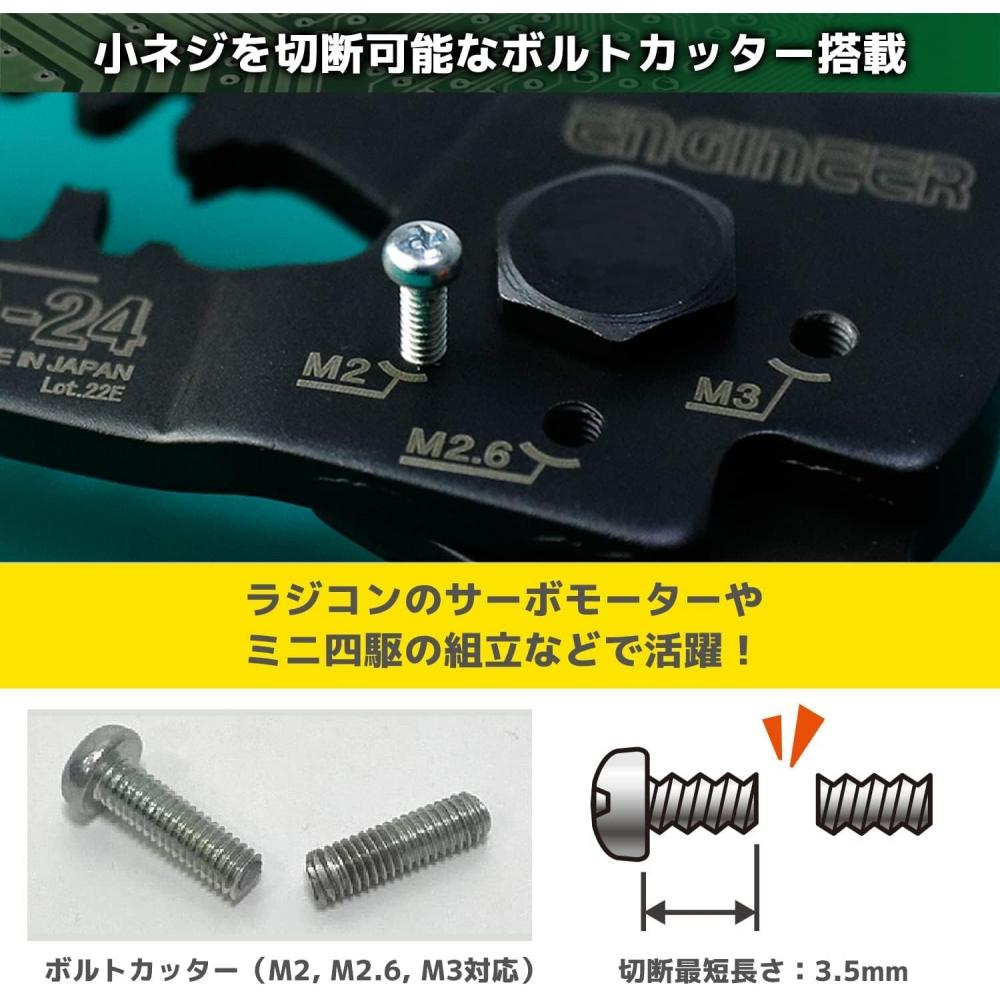

Equipped with a bolt cutter that can cut small screws (M2, M2.6, M3) to the required length.
die width: round/φ1.4, φ1.8 mm, medium type/1.3, 1.6, 1.9, 2.2 mm
