Hakko Hakko Dial Type Temperature Control Soldering Iron High Heat Capacity Type For Stained Glass Fx601 01 Single Item

Explanation by manufacturer

Hakko (HAKKO) High Heat Capacity Dial Type Temperature Control Soldering Iron FX601

・Temperature (MAX) 540℃

・Use a trowel tip with a large heat storage capacity

・Suitable for soldering that requires a lot of heat: for high heat capacity soldering of chassis, large connectors, transformers, etc.

· Excellent thermal conductivity: The T19 series has enhanced thermal conductivity by reviewing the exterior, design, and internal structure of the trowel tip. By adopting this trowel tip, a strong heat recovery rate is achieved without increasing power consumption (number of watts).

data

＜Measurement Conditions＞

・Test method: Solder tip temperature when soldering ø1.0 x 5 mm solder once every 3 seconds

・Substrate used: paper phenol copper clad laminate

· Trowel tip shape: 5D type

・Solder used: lead-free solder

＜Measurement Conditions＞

・Test method: Solder tip temperature when soldering ø1.0 x 5 mm solder once every 3 seconds

・Substrate used: paper phenol copper clad laminate

· Trowel tip shape: 5D type

・Solder used: lead-free solder

FEATURES

Lightweight design that is compact and easy to hold

Even with a compact design that fits in the hand, soldering of large parts can be carried out smoothly with high heat recovery.

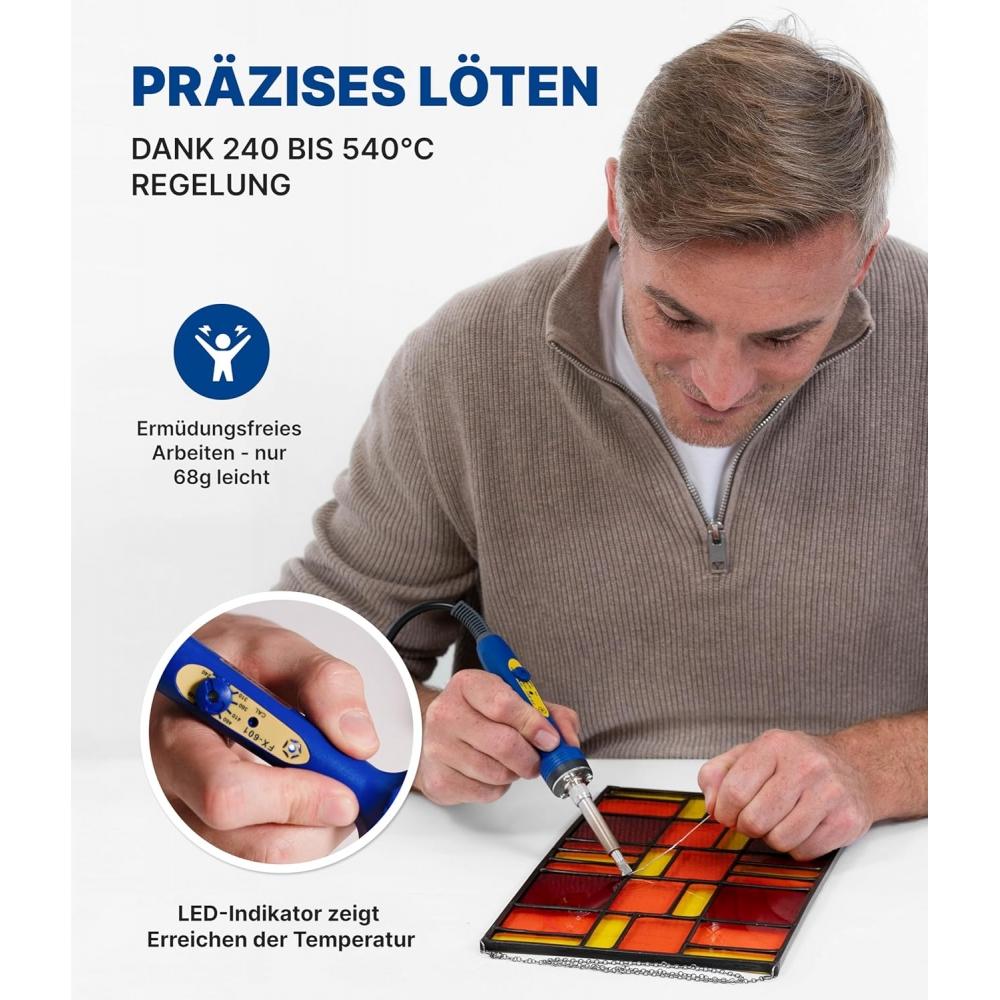

Use LED to let you know the temperature The LED indicates that the set temperature has been reached.

Temperature correction is possible with the CAL knob

Dial for easy temperature setting: temperature controller built into the grip The temperature can be set simply by turning the dial.

※Temperature control is performed accurately even when it is not an eyesore.

Remove the dial to lock the set temperature

How to remove the dial

The set temperature can be locked by removing the screw in the center and removing the dial.

※The screw head on the dial may be damaged, so use a “No. 00” screwdriver when removing and installing the screw.

The state with the dial removed

After removing it, use a special lock key to change it.

Change settings with the lock key

※The structure makes it impossible to easily change the temperature setting without using a dedicated lock key.

{'isProductSummaryAvailable': false, 'device': 'desktop'}

Power: AC 100V 50/60Hz

Power Consumption: 47W

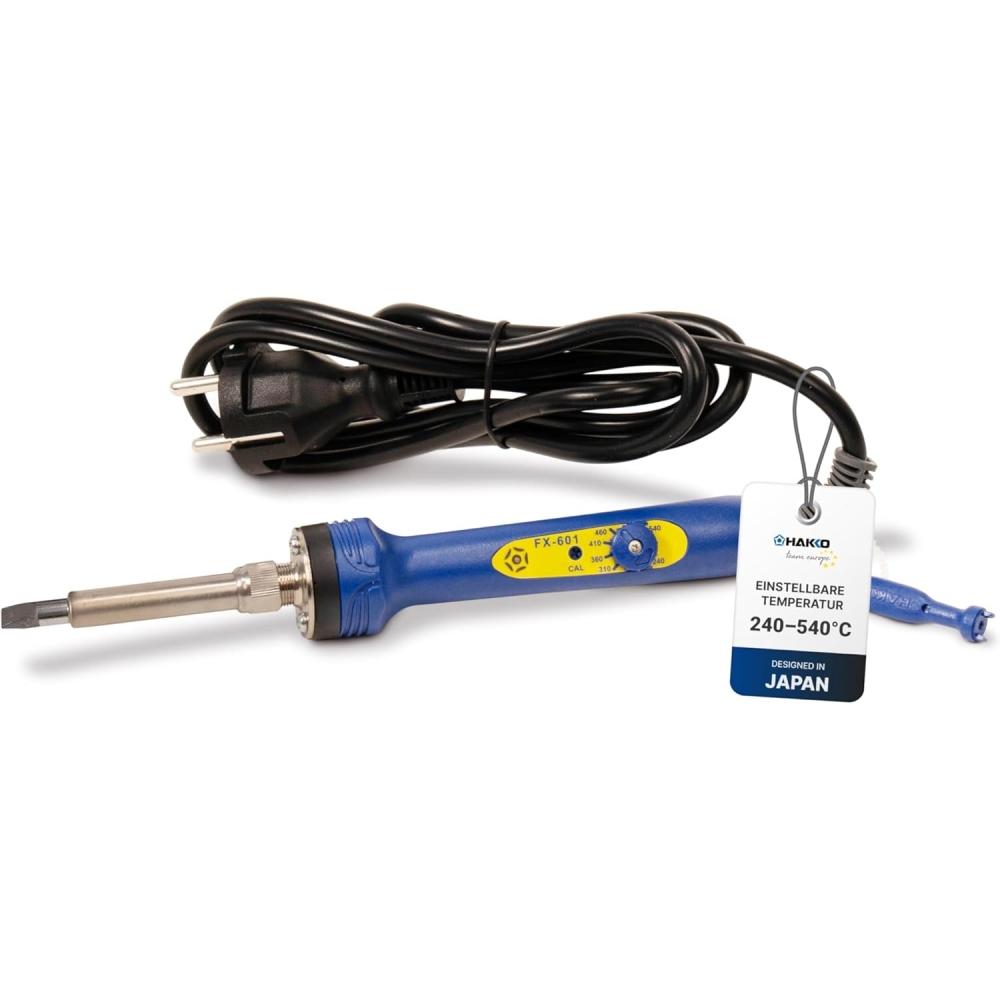

Set temperature range: 240~540℃

Attached trowel tip: 6.5C type (part number T19-C65)

Plug Shape: Flat Plug

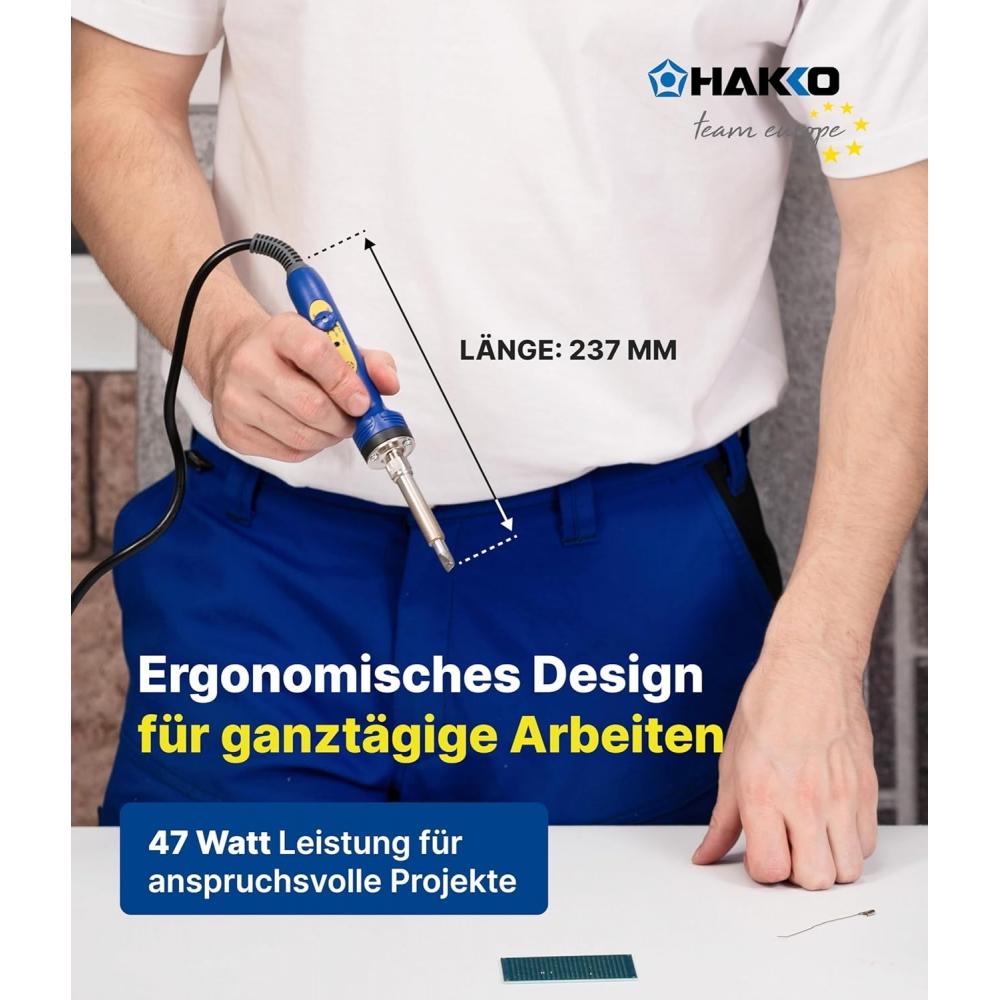

Total length: 233 mm (when a 6.5 C type trowel is attached)

Weight: 68g (when the 6.5 C type trowel is attached)
