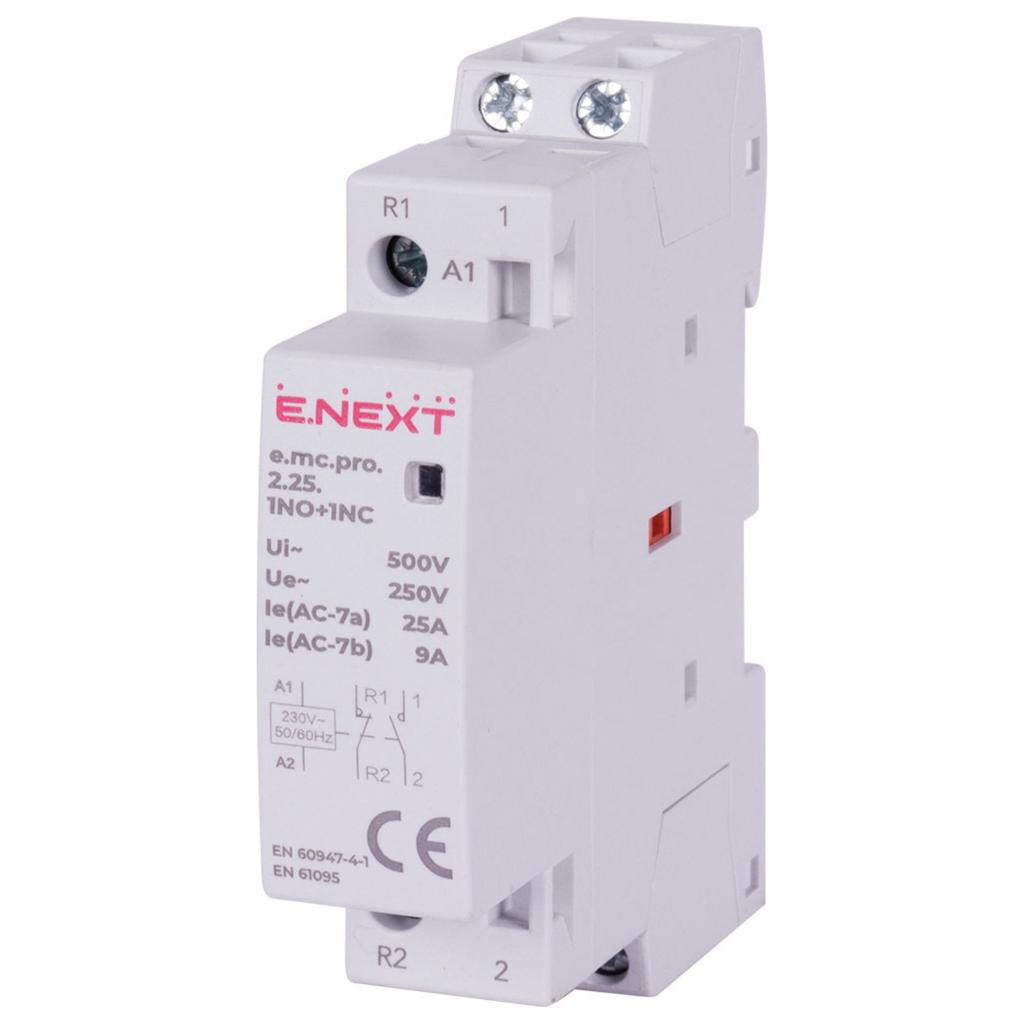

E.NEXT p005220 MODULAR CONTACTOR PRO 2P 25A 1NO+1NC 230V ACThe E.NEXT PRO modular contactor is a reliable device designed for switching electrical circuits on and off in domestic, office, and industrial installations. Thanks to the 1NO+1NC contact configuration, it enables flexible control of various circuits, ensuring safety, energy saving, and operational durability. The device is mounted on a standard 35 mm DIN rail, which guarantees simple installation and integration with other elements of the electrical system.. The compact design allows for space saving in the distribution board.
Technical data:Number of poles: 2PControl coil voltage Uc: AC 230VOperating voltage Ue: AC 230VRated current In: 25Contact arrangement: 1NO+1NCCategory of use: AC-1, AC-7a, AC-7bRated short-circuit current: 3000A Impulse withstand voltage Uimp: 4kVInsulation voltage Ui: 500VFrequency: 50HzMechanical/electrical durability: 1 000 000 / 150 000 cyclesMax. connection cycles per hour: 30 Maximum conductor cross-section: 10mm²Tightening torque: 0.8 NmDegree of protection: IP20 Operating temperature: -25...+60°CInstallation height: do 2000m n.p.m.Dimensions (width): 18mmAssembly: 35mm DIN railWorking position: any
Application:✔️ Lighting control in residential and commercial buildings✔️ Circuit automation in domestic and industrial installations✔️ Control of electrical devices with medium power consumption✔️ Safe switching on and off of resistive and inductive loads✔️ Compact solution for modern distribution boards
Why choose E.NEXT PRO contactors?✅ High durability – over 1 million mechanical cycles✅ Flexible control thanks to the combination of 1NO+1NC✅ Compact design – width only 18mm✅ Easy installation on a 35mm DIN rail✅ Operational safety thanks to compliance with standards and IP20
Completion: 1 piece E.NEXT modular contactor p005220
