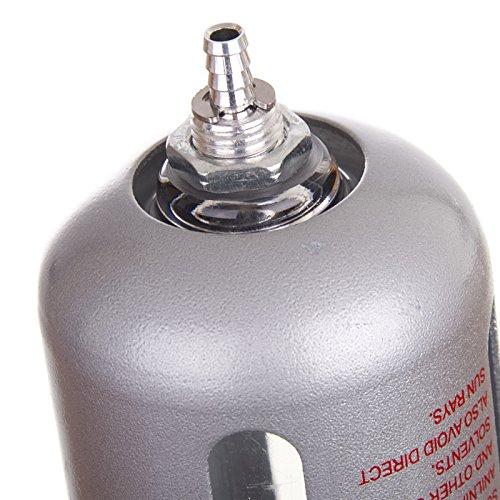

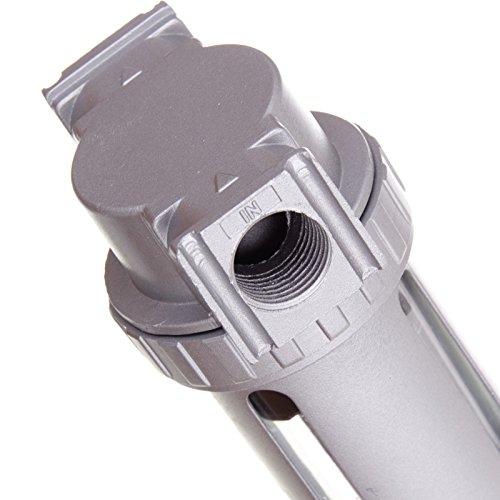

Air Filter 2 Microns Separator Oil Separator Dehydrator 1/2 Compressor

Air Filter, Separator, Oil Separator, Water Drainer AF804 FILTRATION DEGREE - 2 MICRONS, OR 0.002mm. This is one of the most precise filtration levels available in compressor filters - TWENTY TIMES more precise than the simplest models with 40-micron filters - ensuring the capture of the smallest particles of contaminants. This filter is used to dry air. It is an essential element of every pneumatic system. By using this filter, you prevent, among other things, rusting of tools, streaks during painting with spray guns, damage to hoses, etc. The filter requires no additional mounting; it is held on the nipple or coupling that will be attached to the compressor. Draining the water is accomplished by pulling the valve located at the bottom of the filter. It also separates oil and other contaminants. It is equipped with a metal tank cover. Technical data: Height: 155 mm Width: 80 mm Filtration: 0.002 mm Threads: 1/2" (approx. 18-21 mm) Maximum pressure: 10 bar Regulation range: 0.5-8.5 bar Threaded part material: aluminum Maximum flow: 4000 l / min Tank capacity: 80 ml Approx. weight: 0.3 kg
