Feature:
1. DMX512: DMX decoder adopts advanced computer control chip to receive the international widely used DMX 512 standard digital control signal into PWM controller signal to drive LED.
2. Extended Connection: It can be connected with DMX digital console, which can boost the decoder to continuously expand the output channels to realize more dimming or various program change effects. High power output, 4 output channels, 8A per channel.

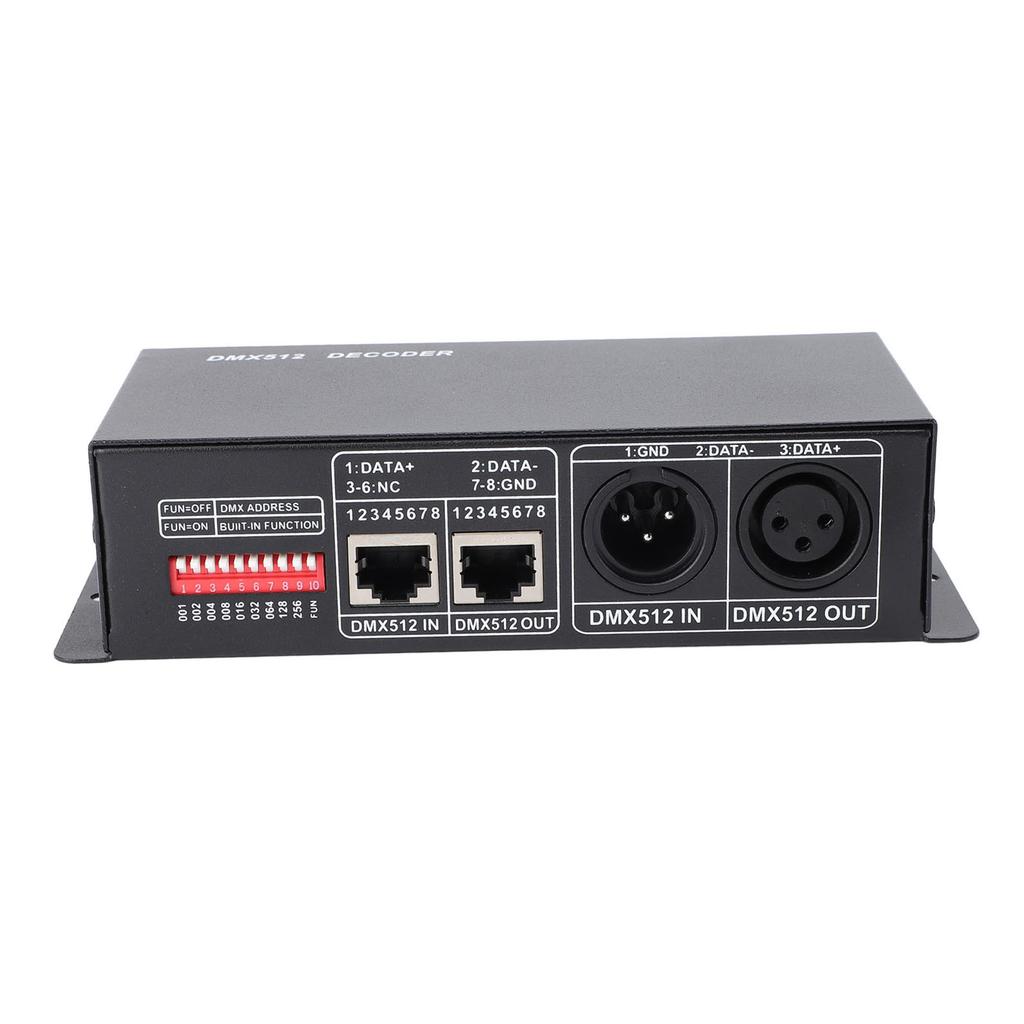

3. Setting Address Code: Each decoder occupies 4 addresses, which are set by coding switches. Positions 1‑9 of the coding switch are binary digit coding switches used to set the DMX512 starting address code, position 1 is the lowest position, position 9 is the highest position, a total of 511 address codes can be set.
4. Multi Function: 4CH DMX decoder can enter music mode by adjusting switches 8 and 9, switches 1‑7 can adjust the sensitivity of the music, and has engineering grade sound quality and sound effects, allowing you to enjoy an immersive music experience.
5. Application: This 4 channel DMX512 decoder has a wide range of applications and can be used in homes, bars, hotels, pubs and other public places. Flexible and convenient to operate.
Specification:

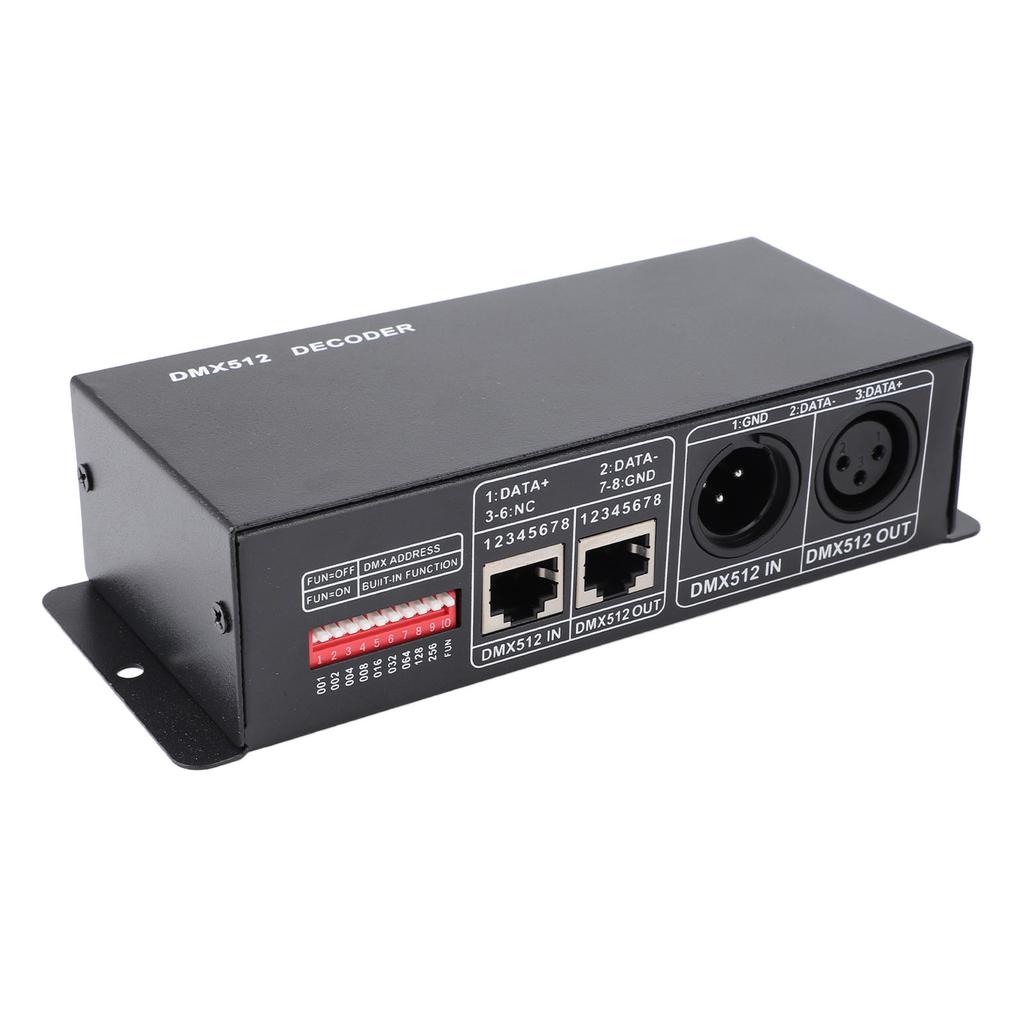

Item Type: DMX512 Decoder
Material: Iron, PCB
Working Temperature: -20°C to 60°C
Input Voltage: 12V-24V
Output Current: Rated Current 8A/ch
Output Power: 12V: ≤384W, 24V: ≤768W
Channels: 4CH RGB
Gross Weight: Approx. 358g / 12.6oz
How to Use:
Operate according to the instruction manual.
Package List:
1 x DMX512 Decoder

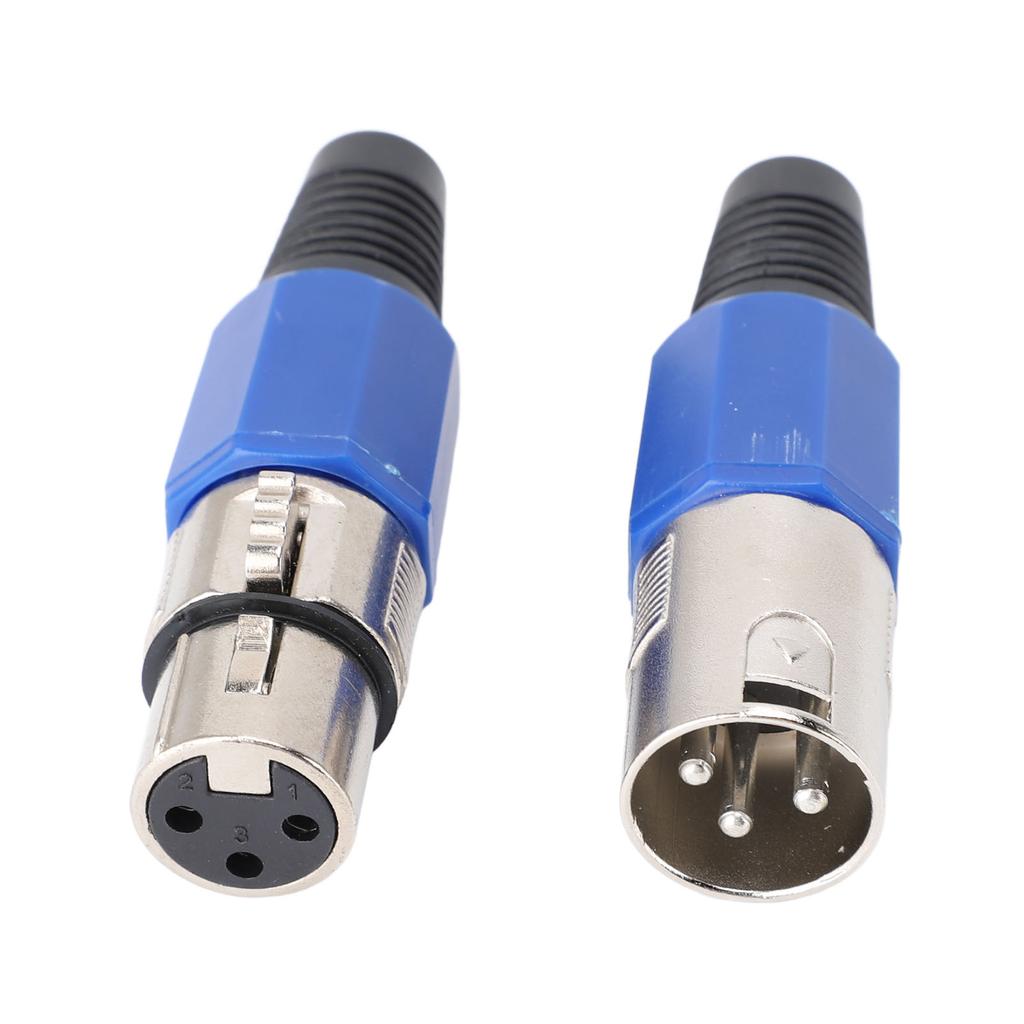

2 x Accessories
1 x User Manual
