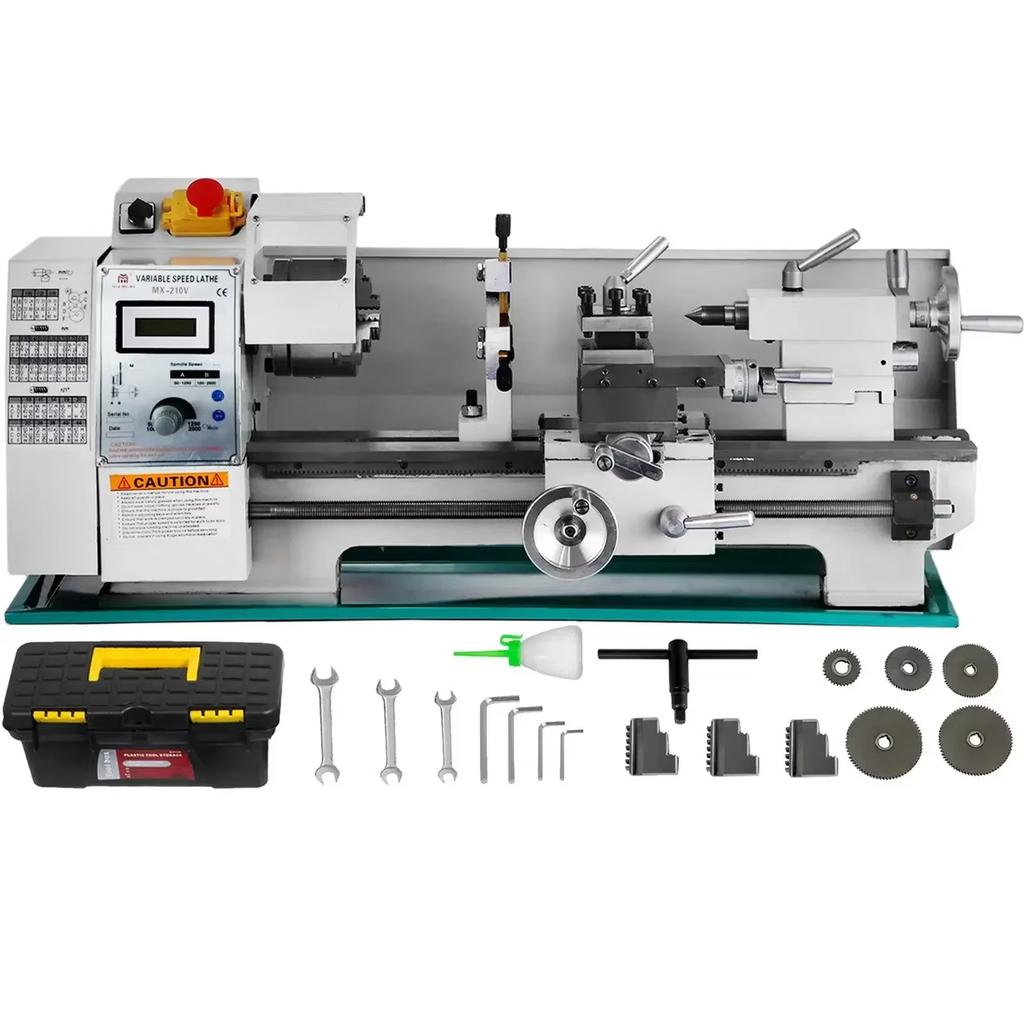

Product: SIHAO Metal Lathe Mini
Characteristics:
Power: 750W
Volt: 220V 50Hz
Phase: Single Phase
Swing Over Bed: 8.7" / 220 mm
Distance Between Centers: 29.5" / 750 mm
3-Jaw Chuck Diameter: 4.9" / 125 mm
Hole Through Spindle: 1.5" / 38 mm
Spindle Accuracy: 0.01 mm

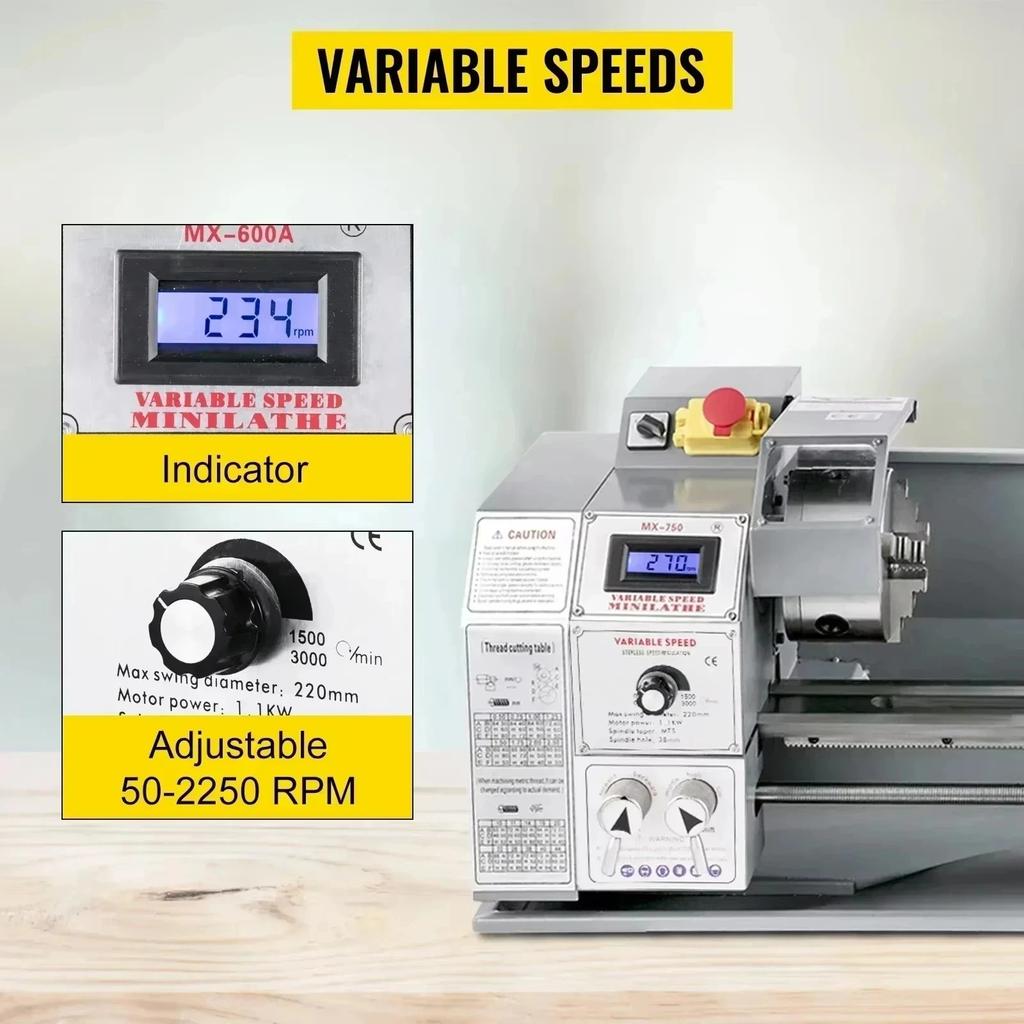

Variable Speed(Rpm): 50-2250±10%
Range of Imperial Threads: 8-44 T.P.I
Range of Longitudinal Feed: 0.5-2.5 mm
Gear Material: Metal
Item Weight: 186 lbs / 84 kg

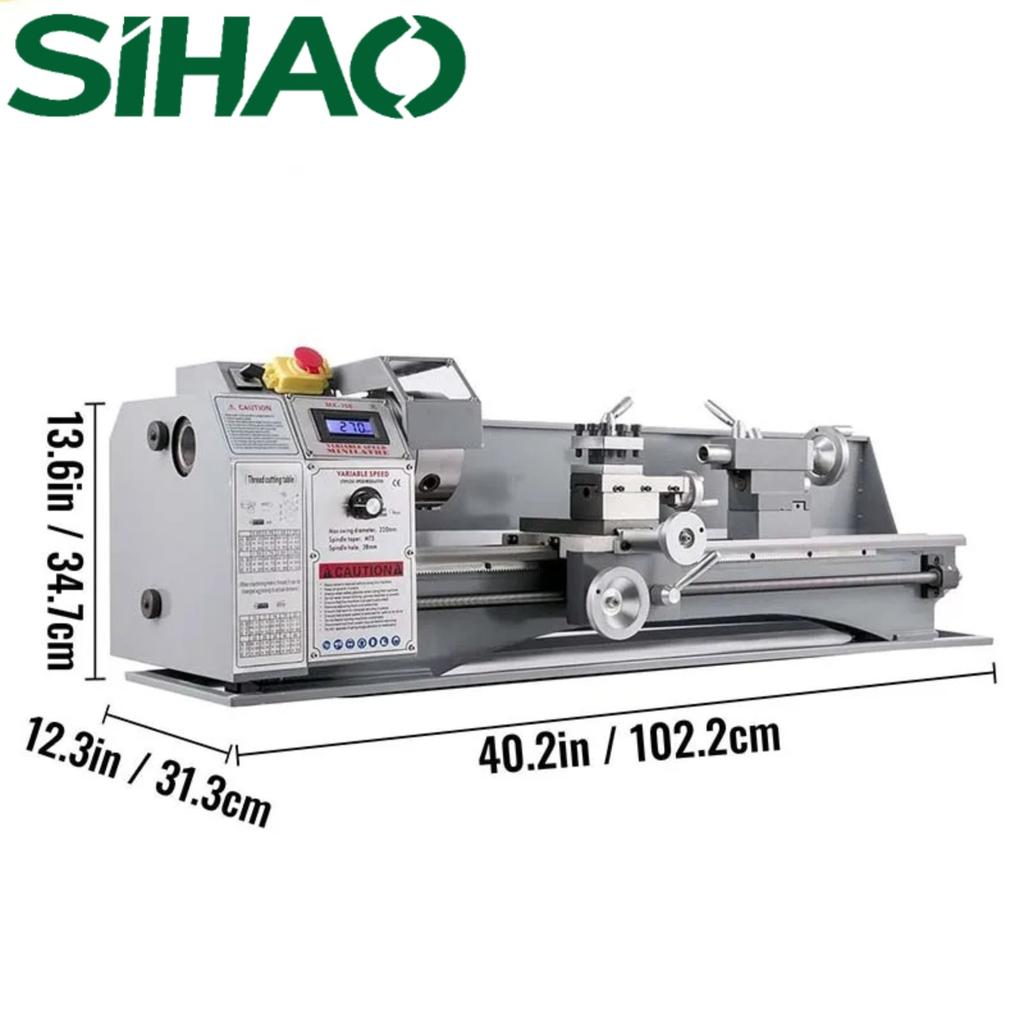

Item Dimension: 40.2 × 12.3 × 13.6 in / 102.2 × 31.3 × 34.7 cm

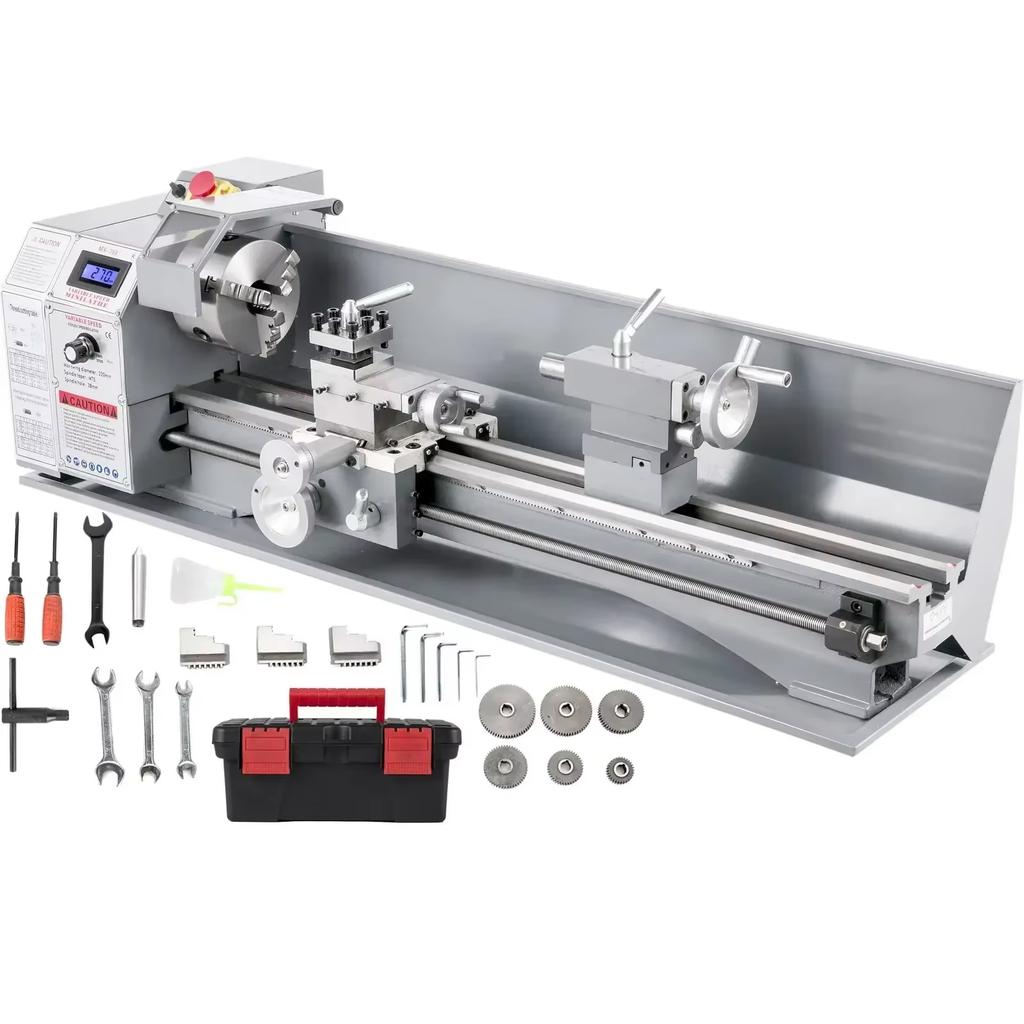

Package Content:
1 x Metal Lathe
1 x Center Rest
1 x Dead Center MT2
1 x Oil Gun
3 x Jaw
6 x Metal Gear
1 x Instruction Manual
2 x Screwdriver
1 x Accessory Kit
1 x Chuck Wrench
3 x Wrench
3 x Chuck Jaw
Power: 1100W
Motor Type: Brushless
Volt: 220V 50Hz
Phase: Single Phase
Swing Over Bed: 8.7" / 220 mm
Distance Between Centers: 23.6" / 600 mm
3-Jaw Chuck Diameter: 4.9" / 125 mm
Hole Through Spindle: 1.5" / 38 mm
Variable Speed(Rpm): 50-3000±10%
Taper of Spindle: MT#5

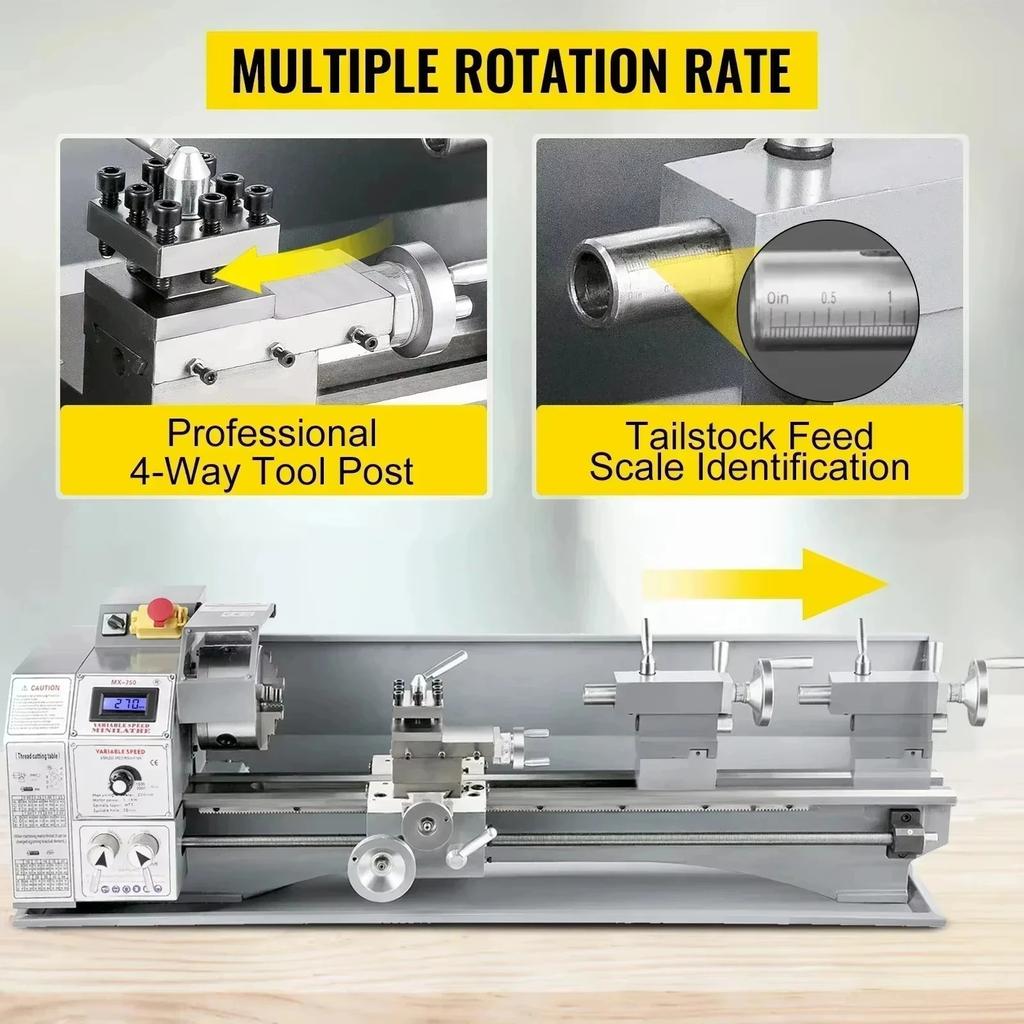

Taper of Tailstock: MT#2
Spindle Accuracy: 0.01 mm
Range of Imperial Threads: 8-44 T.P.I
Range of Longitudinal Feed: 0.5 - 2.5 mm
Gear Material: Metal
Item Weight: 183 lbs / 83 kg
Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

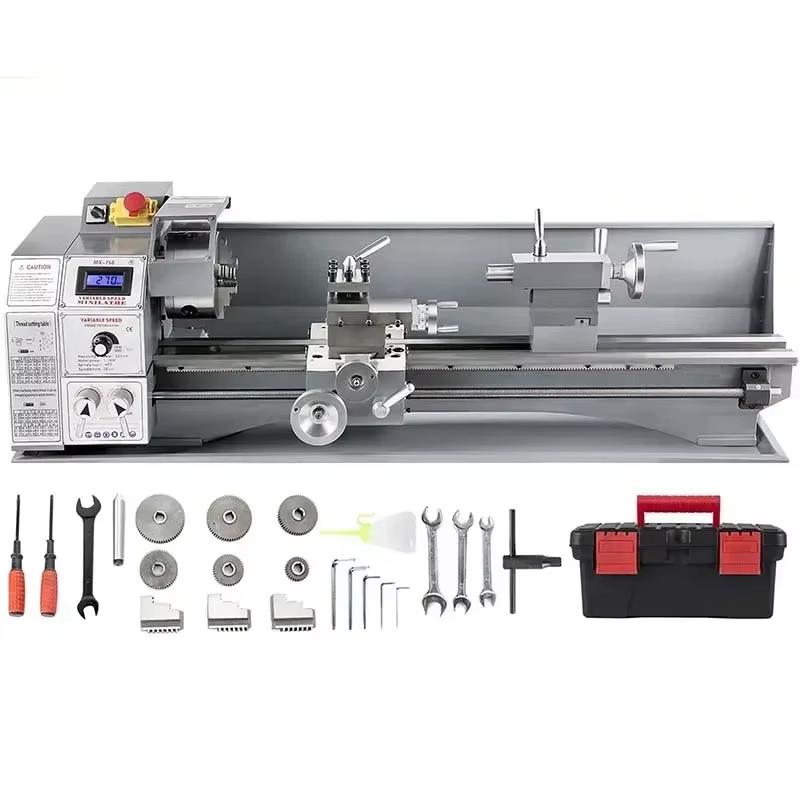

Package Content:
1 x Metal Lathe
1 x Tool Rest
5 x Hex Wrench
1 x Dead Center MT2
1 x Oil Gun
3 x Jaw
5 x Gear
1 x Instruction Manual
2 x Screwdriver
1 x Accessory Kit
1 x Chuck Wrench
3 x Wrench
3 x Chuck Jaw
Power of Motor: 550W DC Single Phase
Spindle Speed: 0 - 2250 RPM
Swing Over Bed: 7.09" / 180 mm
Swing Over Cross Slide: 4.3" / 110 mm
Chuck Diameter: 3.94" / 100 mm
Centers Distance: 13.78" / 350 mm
Spindle Bore: 0.83" / 21 mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 2.53" / 65 mm
Top Slide Travel: 1.36" / 35 mm
Spindle Accuracy: 0.0004" / 0.01 mm
Inch Thread: 12 - 52 T.P.I
Metric Thread: 0.5 - 2.5 mm
Net Weight: 102.7 lbs / 46.6 kg
Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

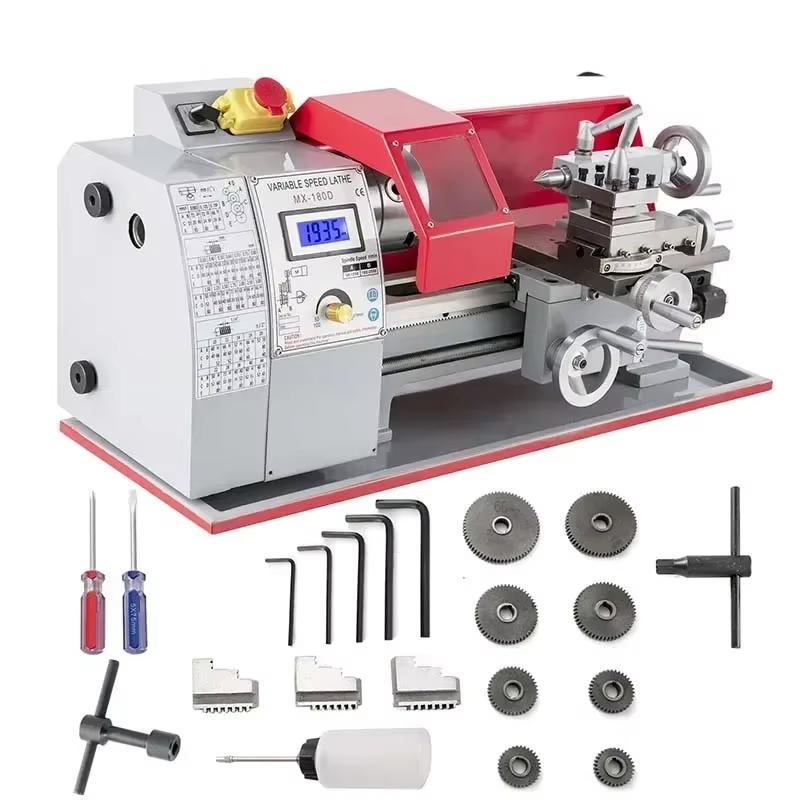

Package Content:
1 x Mini Metal Lathe
3 x Chuck Jaws
1 x Lathe Center
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrenches
9 x Plastic Nylon Gears
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Bo
Power: 600W 220V 50Hz
Distance Between Centers: 12" / 300 mm
Swing Over Bed: 7" / 180 mm
Swing Over Cross Slide: 4" / 95 mm
Taper of Spindle Bore: MT3
Spindle Bore: 0.8" / 21 mm
Range of Spindle Speeds: 50 - 2500 RPM
Max. Slide Travel: 2.2" / 55 mm
Cross Slide Travel: 3" / 75 mm
Tailstock Quill Travel: 2.5" / 60 mm
Taper of Tailstock Quill: MT2
Gross Weight: 149.6 lbs / 68 kg
Item Dimensions(L x W x H): 27.5 × 11.5 × 13 inches / 70 × 297 × 33 cm
Package Content:
1 x Mini Lathe
1 x Splash Guard
1 x Oil Can
1 x Manual
1 x Chuck Key
8 x Metal Gears
2 x Bolt Drivers
5 x Hex Keys
3 x Chuck Jaw
Swing Over Bed: 8.3 in / 210 mm
Swing Over Cross Slide: 15.7in / 400 mm
Motor Power: 750W
Volt: 220V
Phase: Single Phase
Spindle Bore: 0.83 in / 21 mm
Spindle Taper: MT5
Tail Stock Taper: MT2
Gear Material: Metal
Spindle Speed Ranges: Low 0-1250, High 100-2250 RPM
Spindle Accuracy: 0.0004-0.0012" / 0.01-0.03 mm
Compound Rest Travel: 2-1/8 in / 54 mm
Cross Slide Travel: 3 in / 76 mm
Tail Sleeve: φ1 in / 25 mm
Inch Threads: 8-44 T.P.I
Metric Threads: 0.5-3.0 mm
Footprint: 31.5 x 10.5 in / 800.1 x 266.7 mm
Item Weight: 169.8 lbs / 77 kg
Item Dimensions: 31.5 × 11.8 × 13.6 in / 80 × 30 × 34.5 cm
Package Content:
1 x Metal Lathe (Equipped with a 3-jaw Chuck)
1 x Center Rest
1 x Tool Storage Box
1 x Oil Can
3 x Wrench
3 x Allen Key
3 x Jaw
5 x Metal Gear
Motor Power: 750W
Voltage: 220V 50Hz
Spindle Taper: MT3
Tail Stock Taper: MT2
Range of Spindle Speeds: 50 - 2500 RPM
Distance Between Centers: 16" / 400 mm
Swing Over Bed: 8" / 210 mm
Chuck Diameter: 5" / 125 mm
Hole Thru Spindle: 1.5" / φ38 mm
Max. Compound Slide Travel: 2" / 55 mm
Max. Cross Slide Travel: 3" / 75 mm
Net Weight: 158.7 lbs / 72 kg
Item Dimensions (L x W x H): 31.5 x 11.5 x 13.5 in / 80 x 29 x 34.3 cm
Package Content:
1 x Mini Lathe
1 x Set of Accessories
Power of Motor: 550W DC Single Phase
Variable Speed: 0-2500PRM
Swing Over Bed: 7.09"/180mm
Center Distance:13.78"/350mm
Inch Thread: 12-52 T.P.I
Metric Thread: 0.5-2.5 mm
Voltage: 220V 50Hz for EU&AU, 110V for US
Material: Metal
Product Size: 30"x 11.8"x 11.4"
Net Weight: 40 kg /88.18 lb
Package Content:
1 x Mini Metal Lathe
1 x Working Light
3 x Chuck Jaw
7 x Turning Tool
1 x A Set of Accessories
Condition: new
Plug type: European socket
Voltage: 110V/220V
Description:

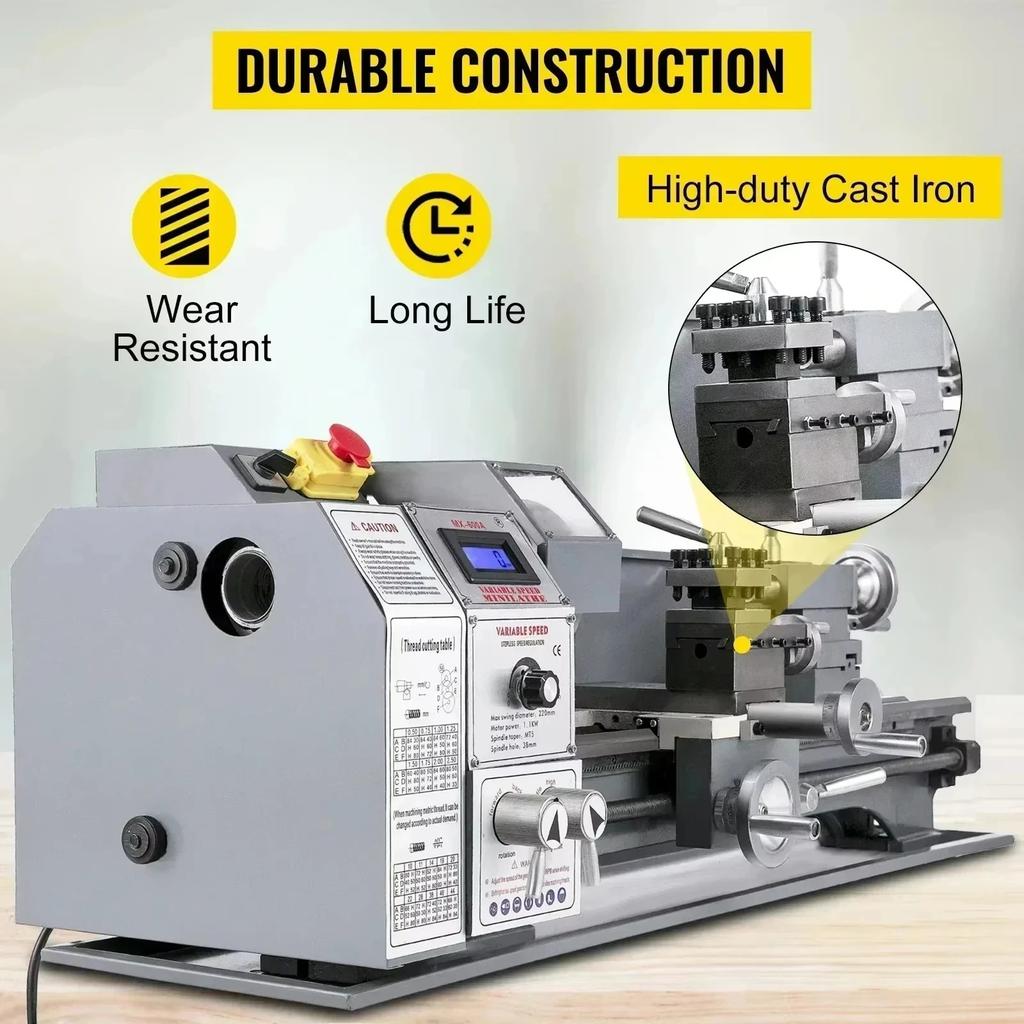

This SIHAO mini metal lathe is designed for various metalworking tasks. It features a powerful motor and variable speed control for precise operation. The lathe includes a chuck, center rest, and a comprehensive set of accessories for immediate use. Its durable metal construction ensures longevity and stability during operation. This model is suitable for both hobbyists and professionals for tasks such as turning, threading, and more. The package includes all necessary components for setup and operation, including multiple gears, wrenches, and an instruction manual.
Condition: new
Plug type: European socket
Voltage: 110V/220V
