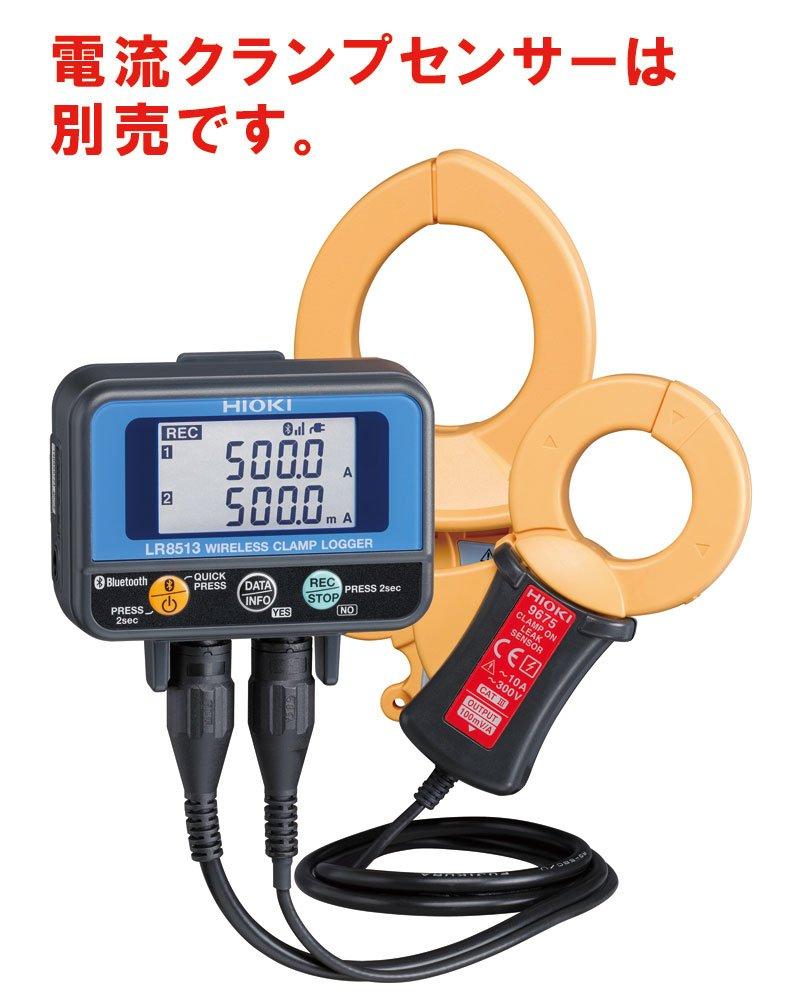

Hioki (Hioki Electric) LR8513 Wireless Clamp Logger - Compact, Small, Made In Japan, Measures Current, Load Current, Leakage Current, Bluetooth Commun

Easily collect diverse data wirelessly and record load current/leakage current with a clamp. Wireless Clamp Logger LR8513

● For measuring AC/DC load current and AC leakage current (using a clamp sensor) ● Eight types of current sensors to choose from ● Monitor measurements from outside even when placed inside a distribution panel with the door closed ● Simple power measurement is possible by setting voltage and power factor ● Compact 2-channel model that doesn't require much installation space ● Measurement data is sent to LR8410 or LR8416 via Bluetooth® wireless technology ● Measurement data is retained even when communication is interrupted ● 3-way power supply (AC adapter, AA alkaline batteries, external power supply 5~13.5V) ● Memory capacity: 500,000 data per channel

*Clamp sensors are sold separately. Measurement is not possible with the LR8513 unit alone.

■Basic Specifications (Accuracy Guarantee Period: 1 Year) [Operation] Measurement data is transmitted wirelessly to LR8410 or LR8416. LR8410 or LR8416 is required for data acquisition. Up to 7 units can be controlled, up to 30m line of sight. [Measurement Functions] [Number of Channels] 2ch (Common GND) ______[Measurement Items] AC load current, DC load current, AC leakage current (by current sensor) ______[Measurement Range] AC 500.0mA to 2000A, DC 10.00A to 2000A (by current sensor) ______*Intermittent currents and leakage currents cannot be measured. [Measurement Accuracy] ±0.5%rdg. ±5dgt. (DC, AC 50/60Hz) *When a current sensor is connected, the sensor... Accuracy Addition [Recording] [Interval] 0.5-30 seconds, 1-60 minutes, 14 selectable intervals, [Mode] Instantaneous value, average value recording [Power Supply] AC adapter Z2003 (AC100-240V, 50/60Hz), 2 x AA alkaline batteries (LR6), external power supply DC 5-13.5V [Continuous Use Time] Approximately 10 days of instantaneous value with AA alkaline batteries (1 second interval, Bluetooth® ON) [Dimensions/Weight] 85W x 75H x 38D mm, 130g (excluding batteries) [Accessories] CD-R (Instruction Manual, Logger Utility) x 1, Measurement Guide x 1, Precautions for Radio Wave Use x 1, 2 x AA alkaline batteries (LR6) Country of Manufacture: Japan Note: Measurement is not possible with the LR8513 unit alone. Clamp-on sensor is optional (sold separately).
