Rosfix Reducer 0.5X | Magnification Lens | C-Mount 25Mm | For Odm-180X | Magnification 0.35X-2.25X | Wd 200-240Mm | Pcb Smd Inspection

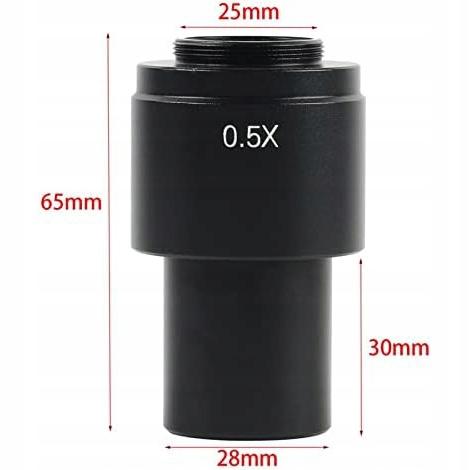

Rosfix Reducer 0.5X | Magnification Lens | C-Mount 25mm | For ODM-180X | Magnification 0.35x-2.25x | WD 200-240mm | PCB SMD Inspection INCREASES FIELD OF VIEW — LARGER OBSERVATION AREA TWICE THE WORKING DISTANCE — FREEDOM TO WORK SMOOTH MOUNTING FOR C-MOUNT LENSES (25MM) HIGH-END GLASS OPTICS WITH ANTI-REFLECTIVE COATING IDEAL FOR SOLDERING, PCB SERVICE, INSPECTIONS AND PRECISION WORK The 0.5X Magnification Reducer is a specialized auxiliary lens mounted on microscope objectives with C-Mount 25 mm thread . Its task is to reduce the total magnification of the microscope by half, while increasing the field of view and significantly enlarging the working space between the objective and the examined object. Main benefits of using the 0.5X reducer: Larger field of view You can view a larger section of the object at once — especially useful for larger PCBs, complex electronics, telecommunications modules or mobile device repairs. Greater working distance The lens increases the working distance by up to 100% — you have more space to maneuver tools: tweezers, soldering irons, cables or test probes. Greater work comfort Reduces eye and neck fatigue during longer observations; comfortable working position during soldering and precision repairs. Examples of applications after using 0.5X: Soldering and servicing of SMD electronics Repair of motherboards for laptops, phones, mobile devices Inspection of large-area PCBs Production quality control Numismatics and jewelry inspection Scientific and educational research Biological, medical and dermatological research Assembly work, mechanical and precision inspection 0.5X Reducer Technical Specifications: Reduction Magnification: 0.5X Mounting Thread: C-Mount 25mm (Industry Standard) Bottom Diameter: 28mm Overall Height: 65mm Bottom Part Height: 30mm Material: Optical Glass, Anti-Reflective Coating Compatibility: Fully Compatible with ODM-180X Why choose the 0.5X reducer? Larger field of view without sacrificing image quality Comfortable work on larger details and areas More space for tool manipulation Comfortable working conditions at the service station Precise and fast inspection of larger components
