Features:

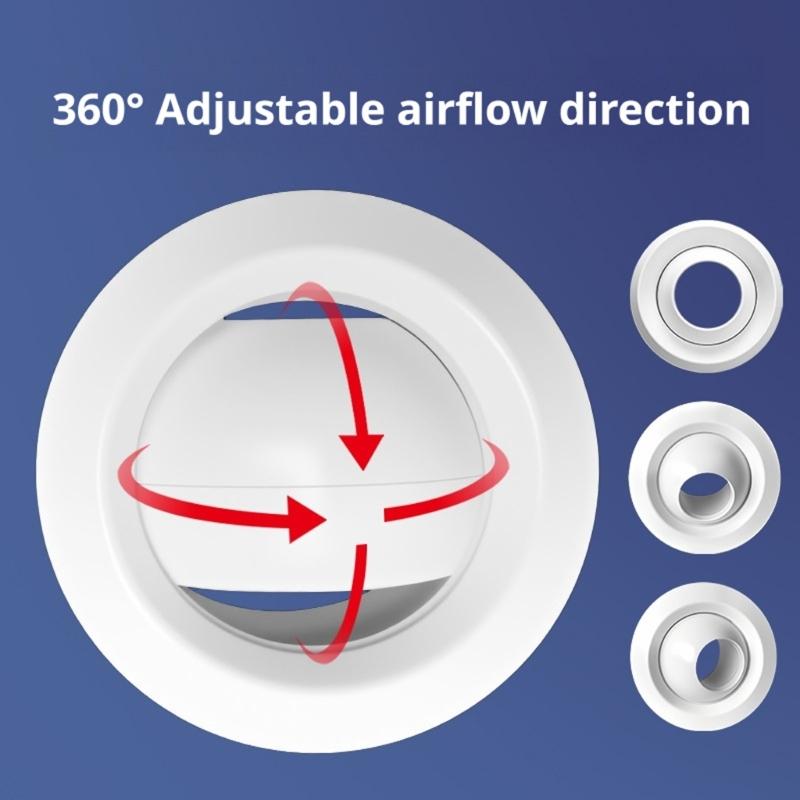

Targeted Air Direction: The ball center lets you point supply air where needed, helping direct circulation across duct outlets or sidewall vent locations without changing the full fitting.

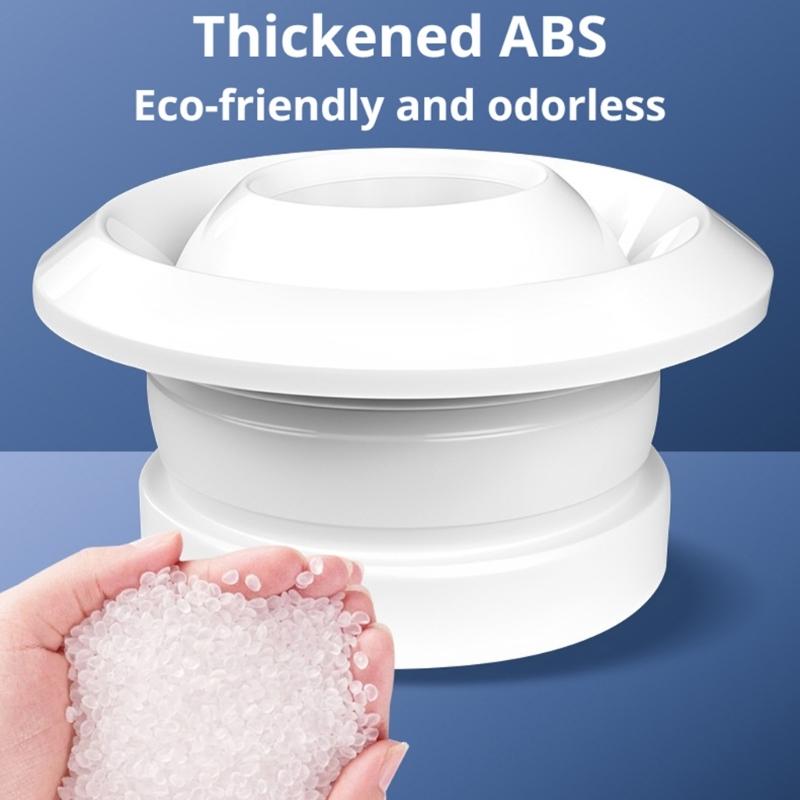

ABS Vent Housing: The molded ABS body provides a clean round outlet structure for HVAC installation work while keeping the construction claim aligned with supported product facts.
Round Outlet Installation Fit: This vent is designed for round duct or sidewall outlet placement, giving installers a straightforward replacement component for directional air distribution tasks.
Clean Shared Vent Profile: The round frame and centered outlet give supply openings an orderly finish in ventilation projects where directional air movement and a neat visible outlet both matter.
Package Contents Included: Each package contains a vent outlet, making it easy to plan replacement jobs, staged room updates, or maintenance work that calls for a clearly defined fitting.
Specifications:
Component: ABS

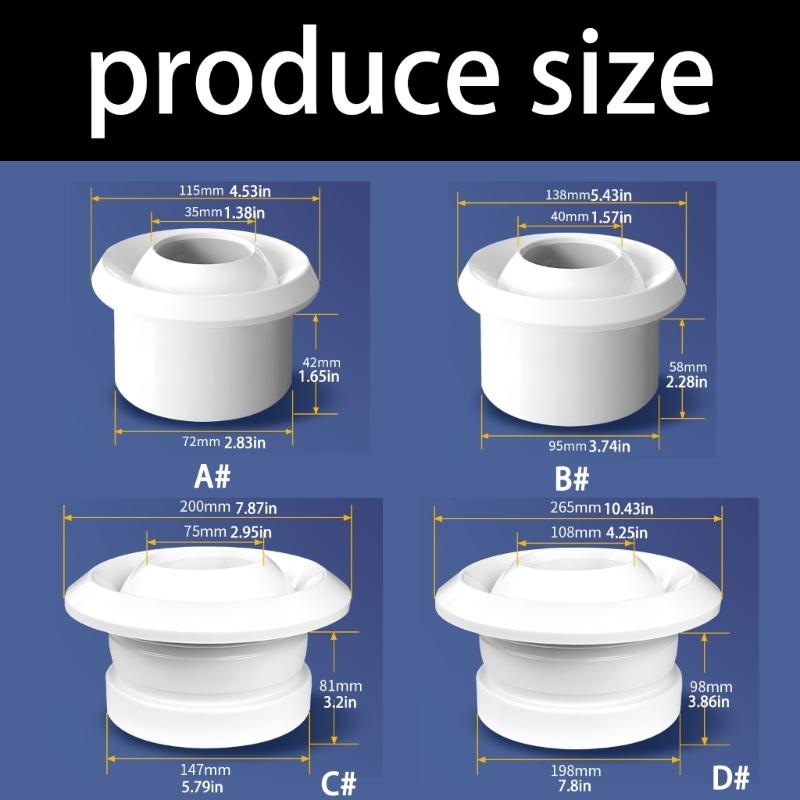

Size A: Flange OD 115mm/4.53in, Inner Hole 35mm/1.38in, Bottom OD 72mm/2.83in, Height 42mm/1.65in
Size B: Flange OD 138mm/5.43in, Inner Hole 40mm/1.57in, Bottom OD 95mm/3.74in, Height 58mm/2.28in
Size C: Flange OD 200mm/7.87in, Inner Hole 75mm/2.95in, Bottom OD 147mm/5.79in, Height 81mm/3.2in
Size D: Flange OD 265mm/10.43in, Inner Hole 108mm/4.25in, Bottom OD 198mm/7.8in, Height 98mm/3.86in
Package Includes:
1 piece Air Vent Nozzle
note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you donot mind before you order.
2.Due to the differences between different monitors, the picture may not reflect the actual color of the item.
