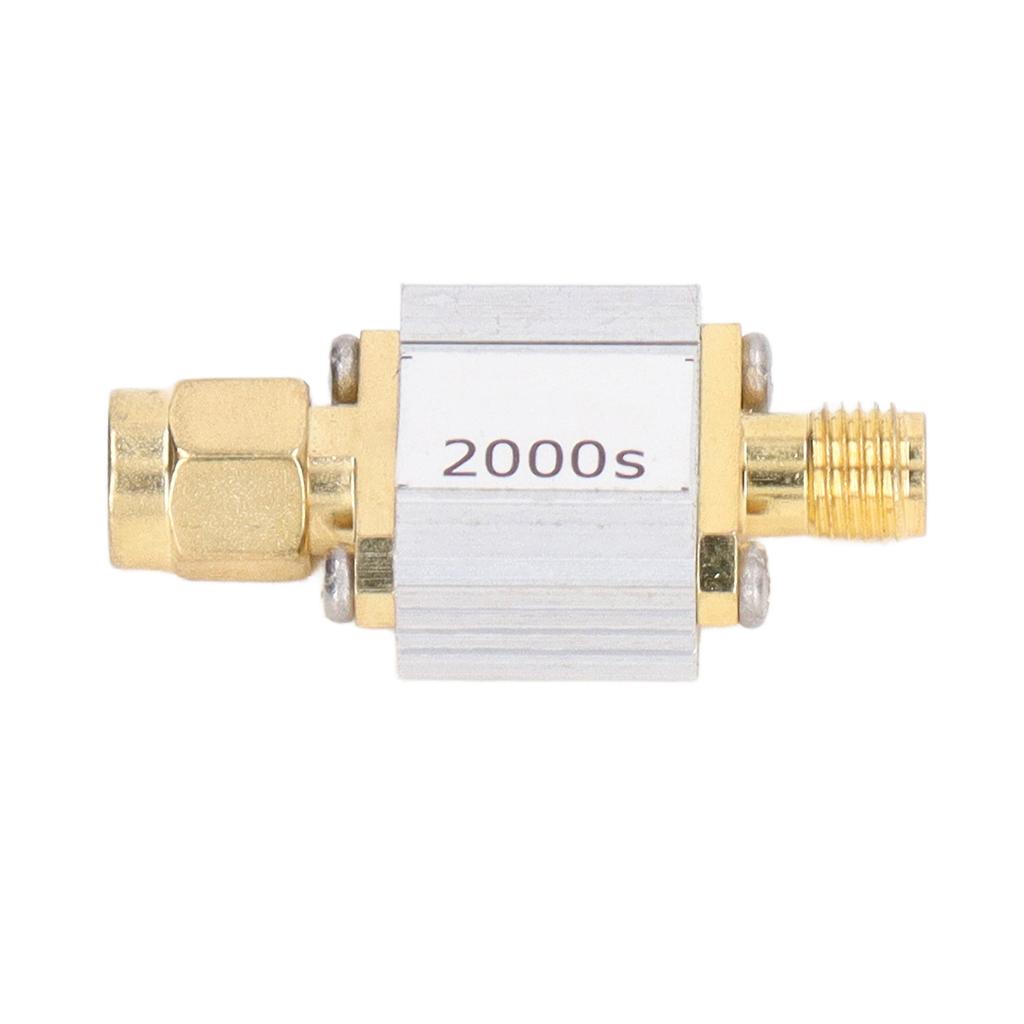

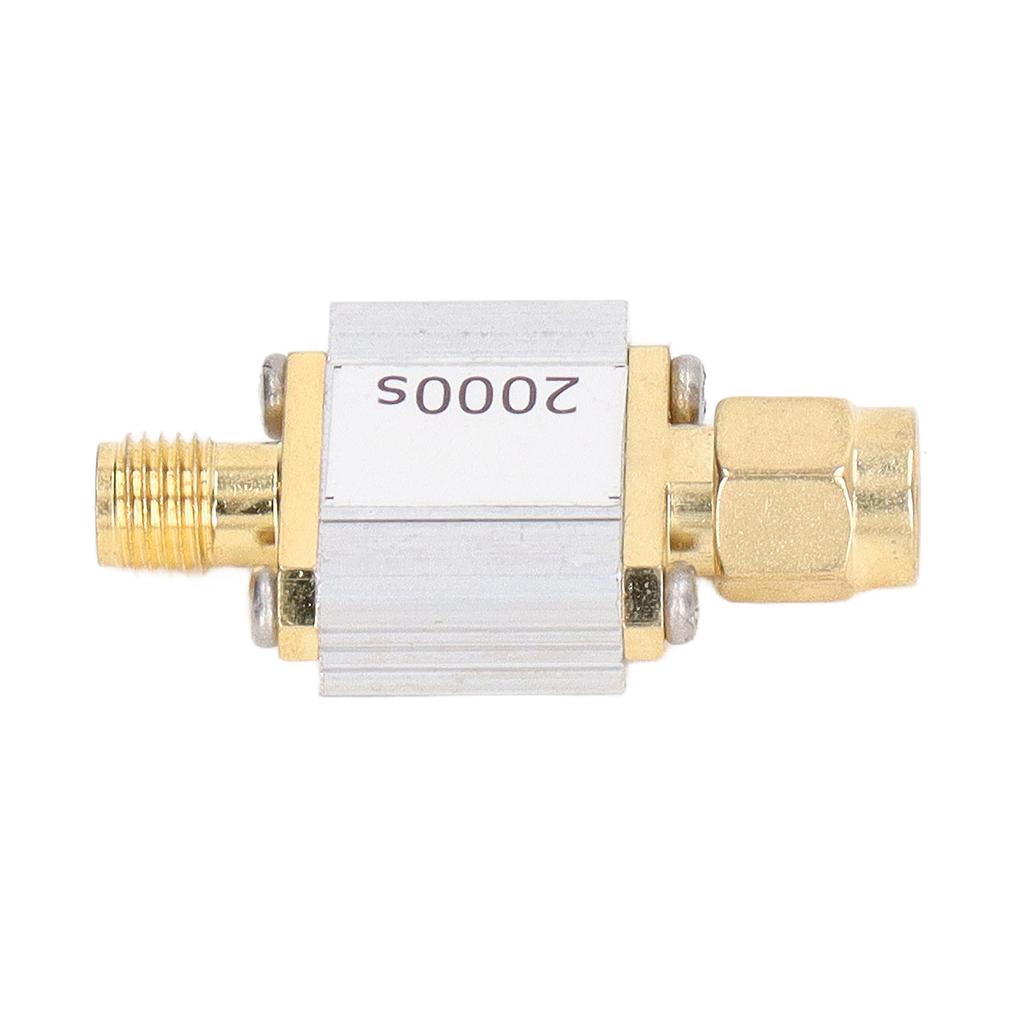

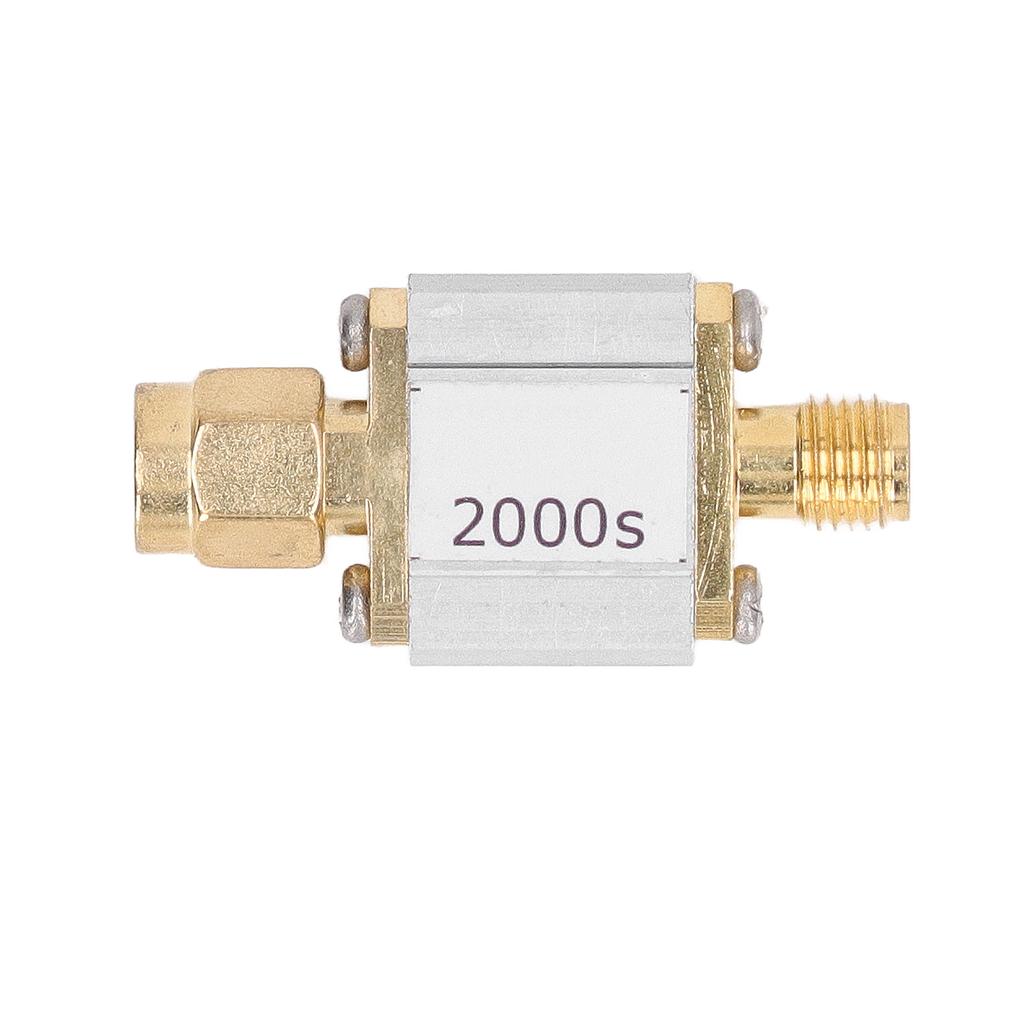

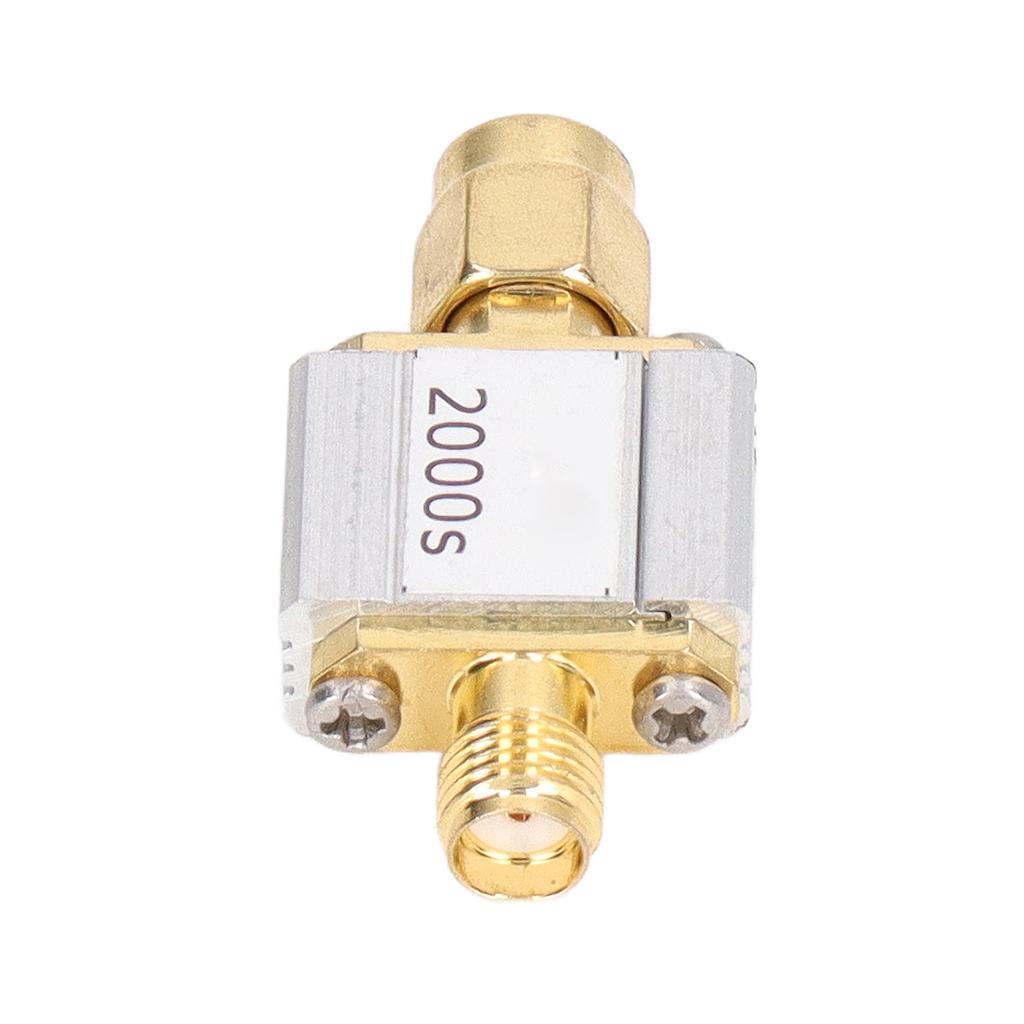

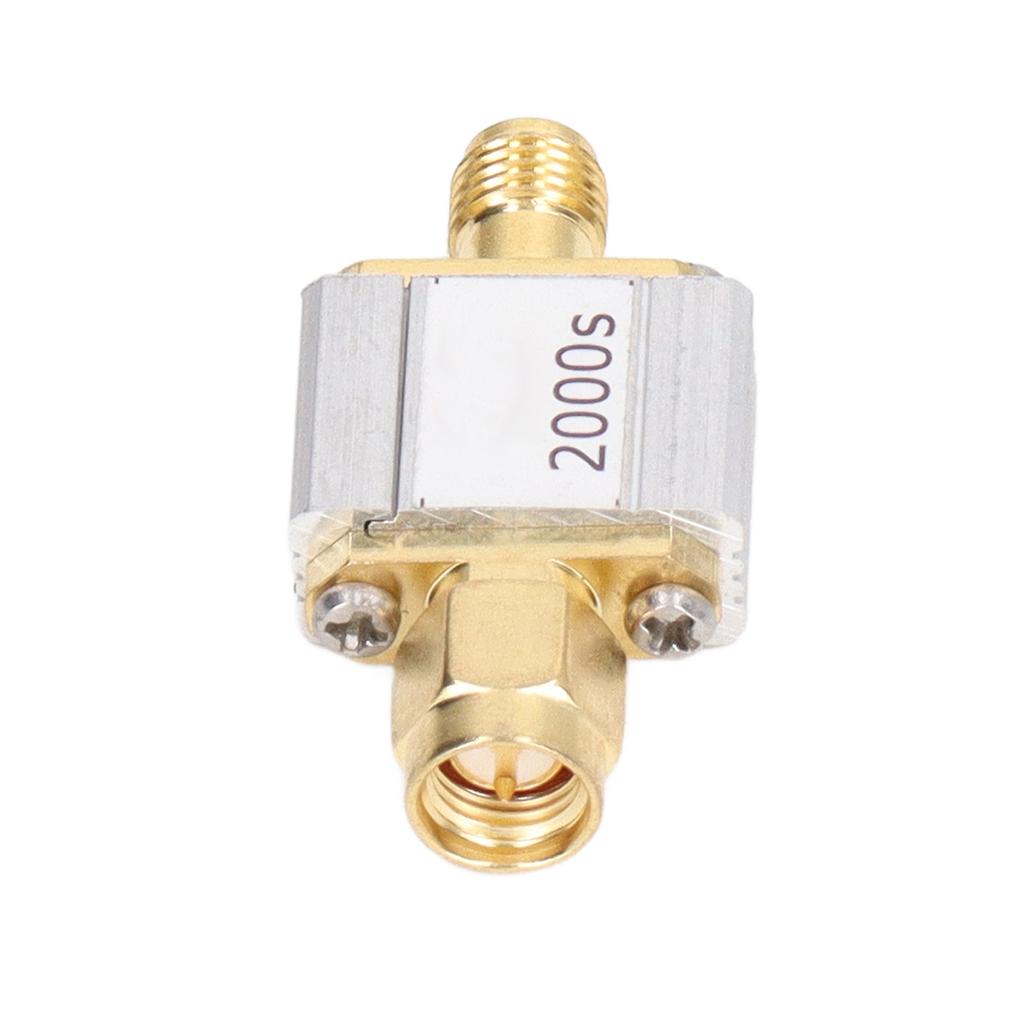

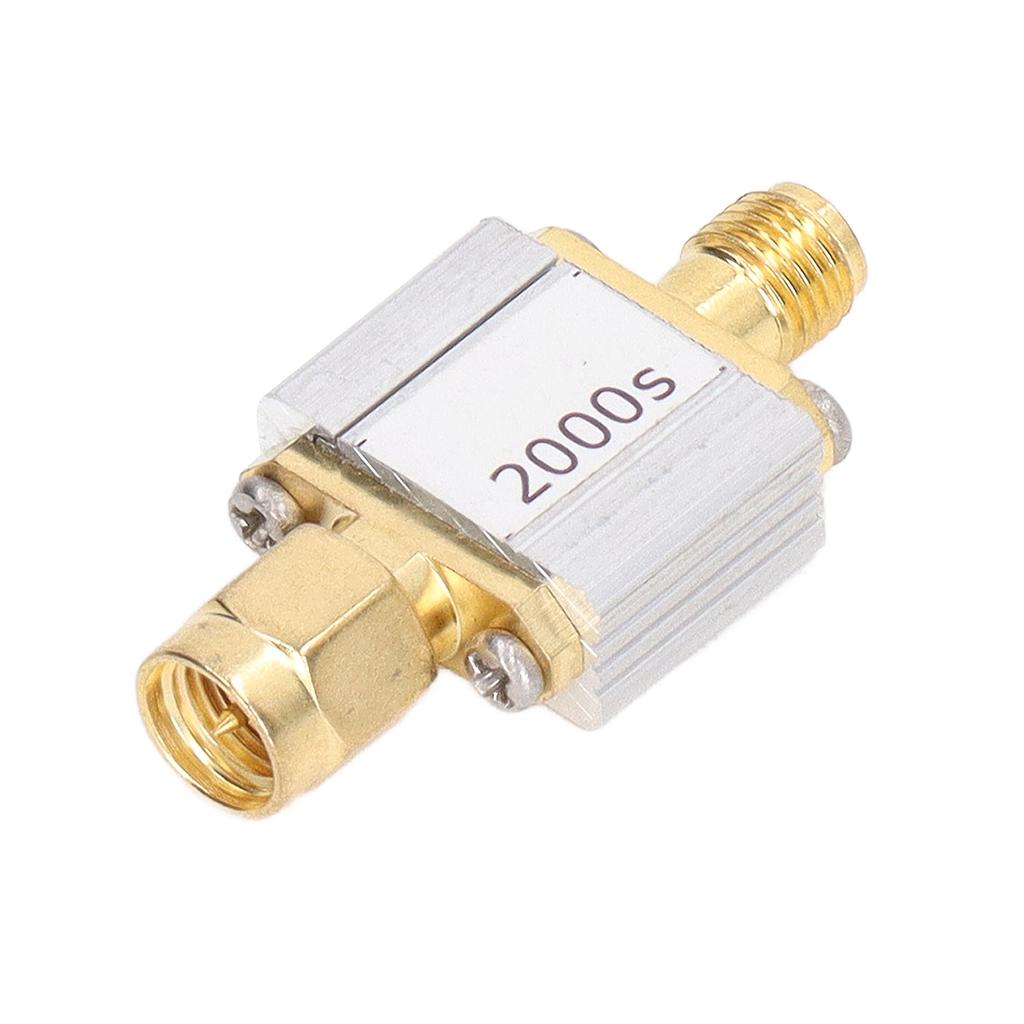

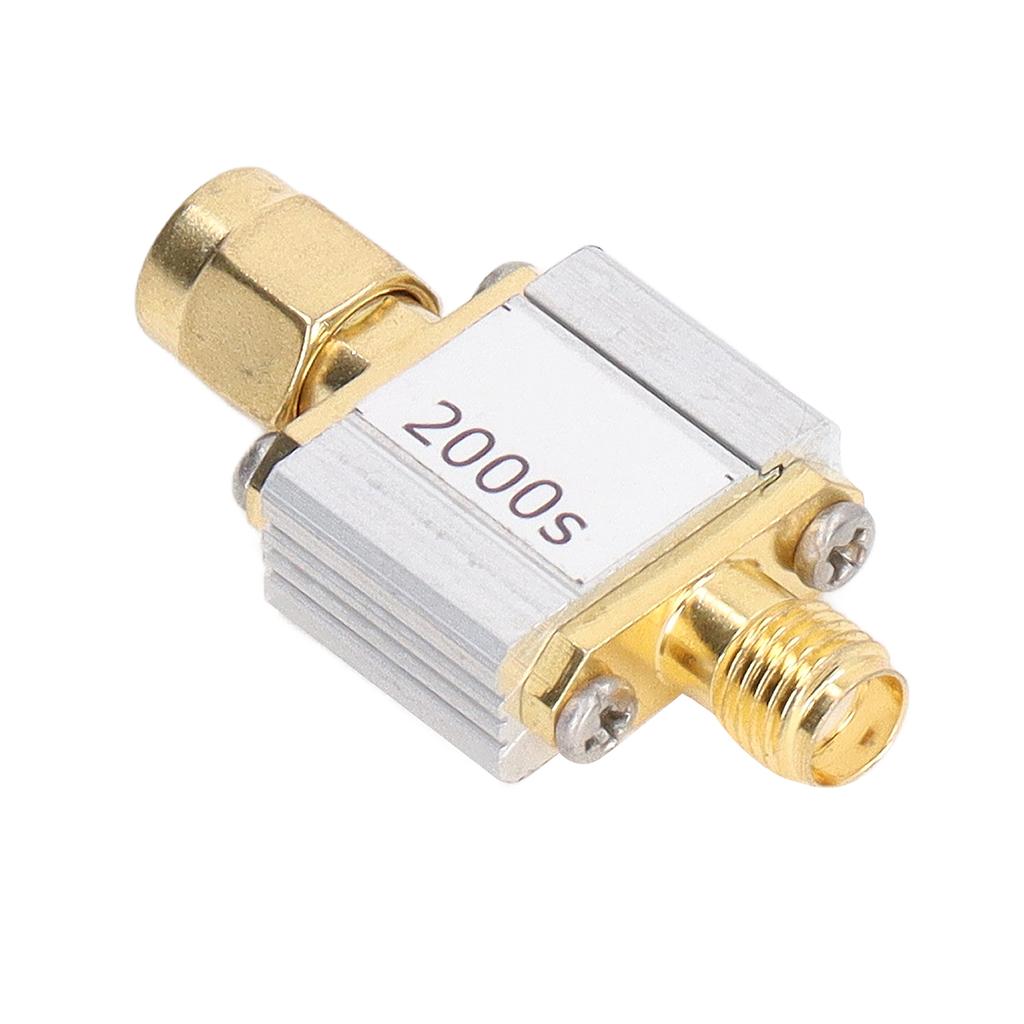

Receiver Bandpass Filter 2000MHz 50Ohm Low Insertion Loss Band Pass Receiver Filter with SMA Interface

Feature: 1. 2000MHz Center Frequency: This bandpass filter is dedicated for receiving equipment with a center frequency of 2000MHz 2. Low Insertion Loss: The band pass filter has low insertion loss, and the in band insertion loss is less than 5dB 3. Easy to Debug: The bandpass filter is easy to debug, has good selectivity and has stable and reliable performance 4. High Performance: This band pass filter features high stopband rejection, high image attenuation, high power tolerance 5. Easy to Use and Carry: The receiver band pass filter is small in size, sturdy and durable, easy to use and convenient to carry Specification: Item Type: Receiver Bandpass Filter Material: PCB Impedance: 50 Ohms Center Frequency: 2000MHz 3dB Passband: 1985 2015MHz In Band Insertion Loss: <5dB Maximum Carrying Power: 100mW (20dBm) Interface: SMA M, SMA F. Package List: 1 x Receiver Bandpass Filter Note: Pay attention to the correct operation.
