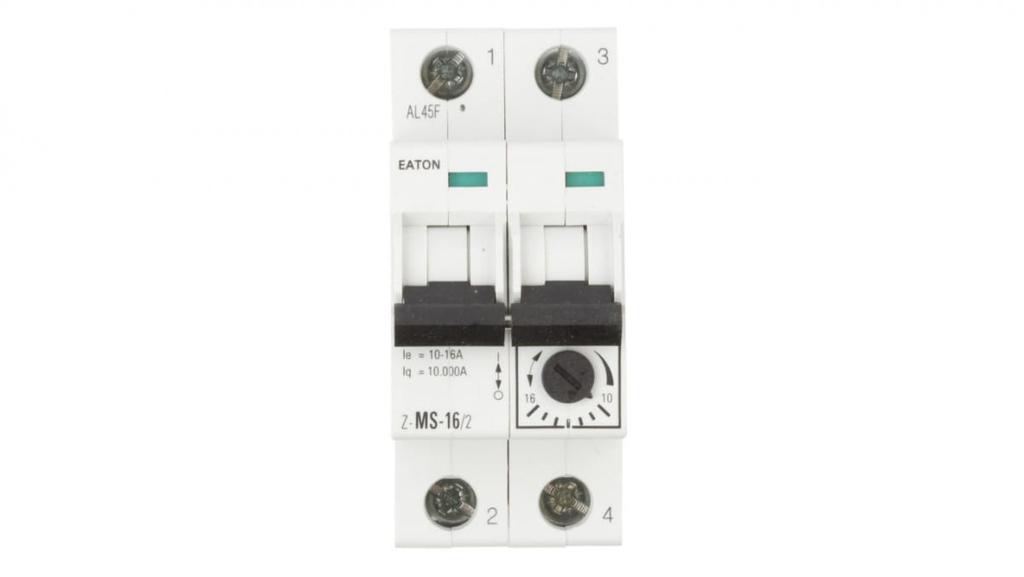

Motor Circuit Breaker 2P 2.2Kw 10-16A Z-Ms-16/2 248399

series: Z-MS

Degree of protection (IP): IP20

Setting range of the instantaneous short-circuit release [A] to: 208

Setting range of the instantaneous short-circuit release [A] from: 160

Setting range of the overload release [A] to: 16

Setting range of the overload release [A] from: 10

Rated operating power at AC-3, 230 V [kW]: 2.2000

Rated short-circuit breaking capacity Icu at 400 V, AC: 10

Rated continuous current Iu [A]: 16

CN: 85362010 Phase loss sensitivity: No Length: 85 EAN: 4015082483999 Manufacturer index: 248399 Number of poles: 2 PKWiU: 27.12.22.0 Type of main circuit connection: Screw connection Trigger method: Thermomagnetic Width: 76 Weight: 0.2400 Height: 40 With integrated auxiliary contact: No With integrated undervoltage release: No
