Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 5V 9V 12V
Application : MOBILE PHONE
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Product Features：
1. Supports PD 100W high-power fast charging, compatible with mainstream devices, significantly reducing charging waiting time.
2. Type-C port supports bidirectional PD fast charging, meeting high-speed charging and discharging needs.

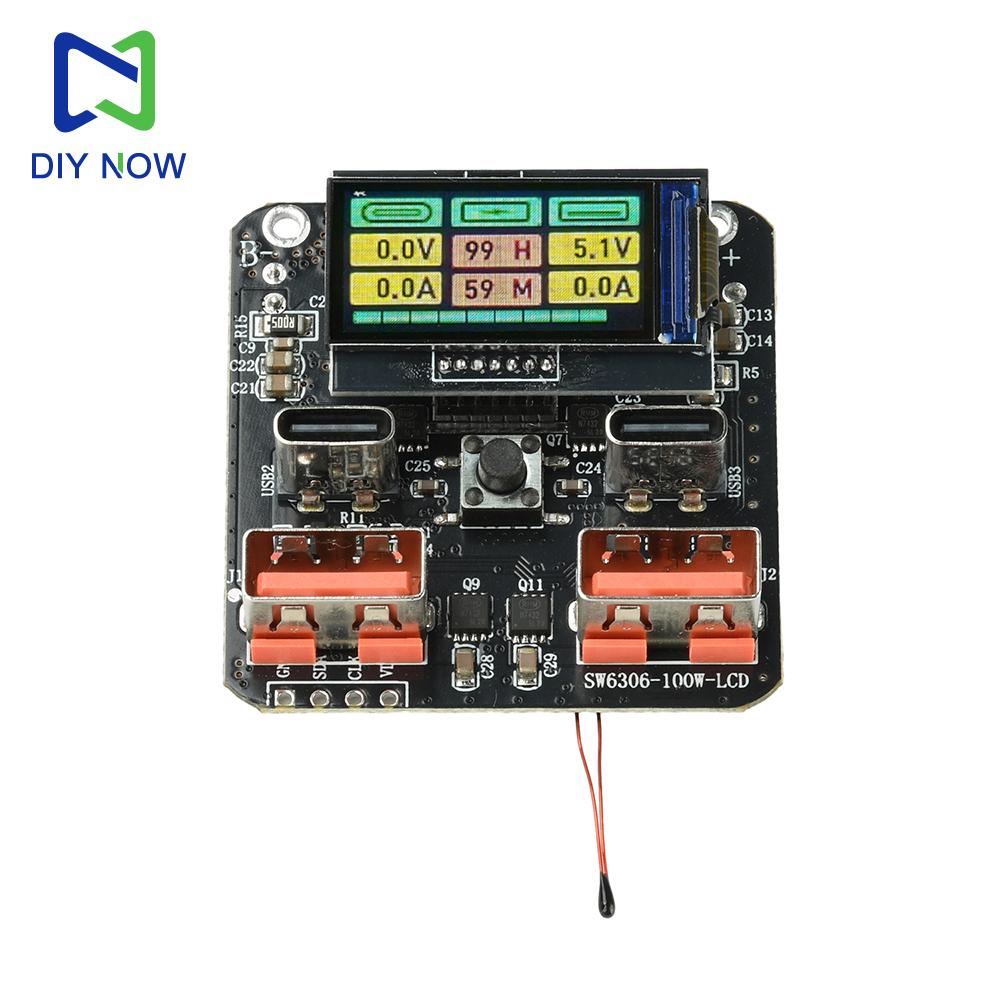

3. Equipped with a high-definition color screen, displaying voltage, current, and remaining charging/discharging time in real time, making the working status intuitively visible.
4. Equipped with a high-performance main control chip, supporting multiple fast charging protocols, high conversion efficiency, and stable charging and discharging process.
5. Supports mainstream fast charging protocols, widely compatible with various devices, strong compatibility, and rich application scenarios.
Product Parameters：
Type-C1 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
Type-C2 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
Type-C1 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-5A
Type-C2 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A A
USBA1 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W), 20V-5A (ufcs protocol)
USBA2 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W), 20V-5A (ufcs protocol)

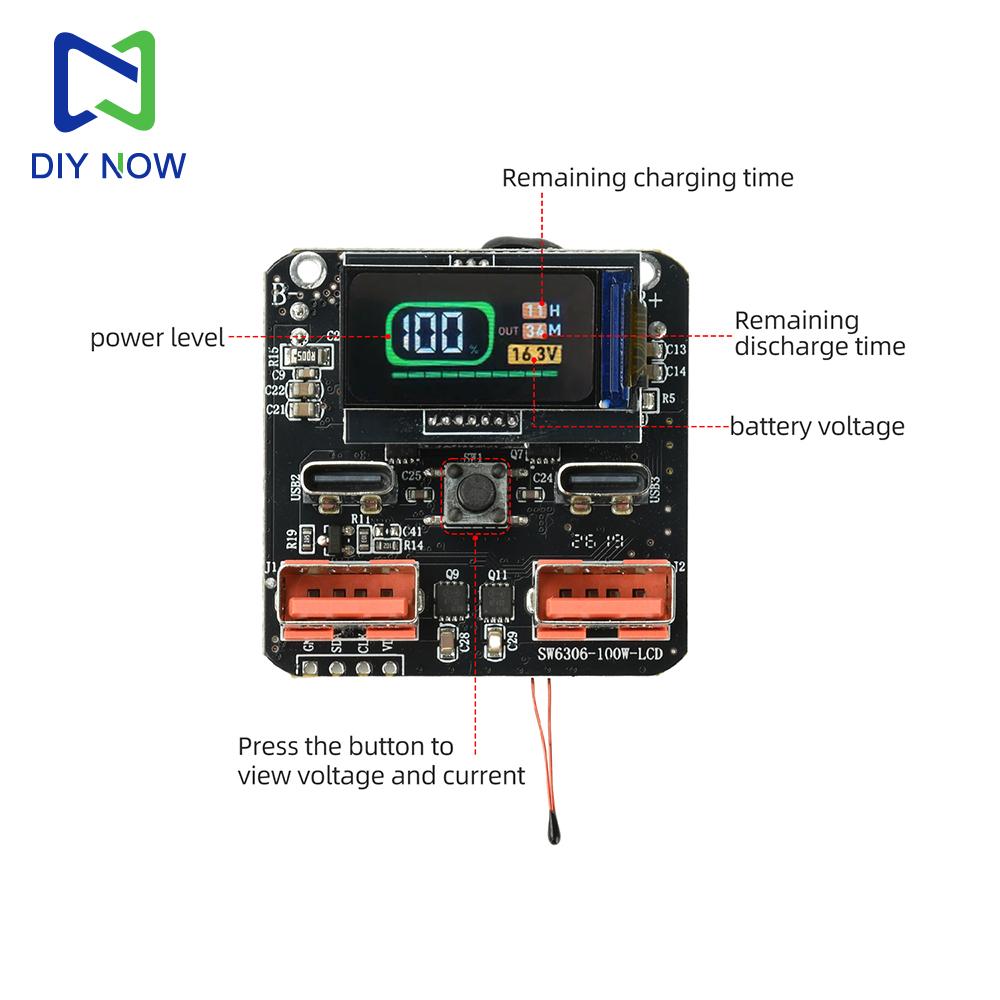

Real-time display of battery level, voltage, current, and remaining charge/discharge time
Precautions：
1. Do not solder while the circuit is powered on. When soldering the + and - wires on the motherboard, the protection board will not output voltage, preventing 99.99% of potential accidents.

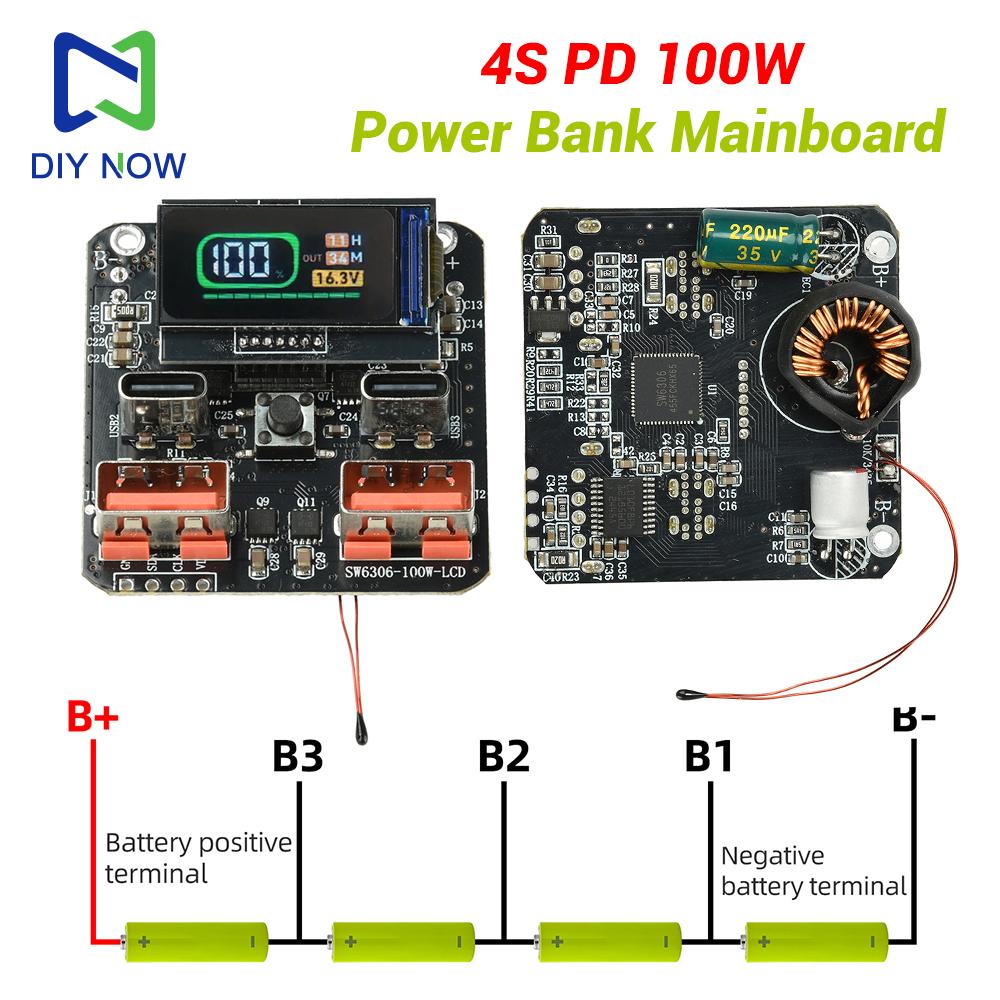

2. The motherboard only has + and - wires. Soldering while powered on can easily burn the circuit due to shaky hands. Please disconnect the power before soldering. Connect the motherboard + and - wires first. Solder the negative terminal of the battery pack last! The two wires on the motherboard cannot balance the battery; the balancing protection function is on the lithium battery protection board.
3. The chip still uses a coulomb counter to calculate the battery level. The battery level may not be displayed correctly on the first power-on; it will return to normal after a cycle.
Package List：
Motherboard Module *1
label:yes
Battery capacity: 43200
Charge indicator: No
Number of ports: 1 port
No-delivery refund
