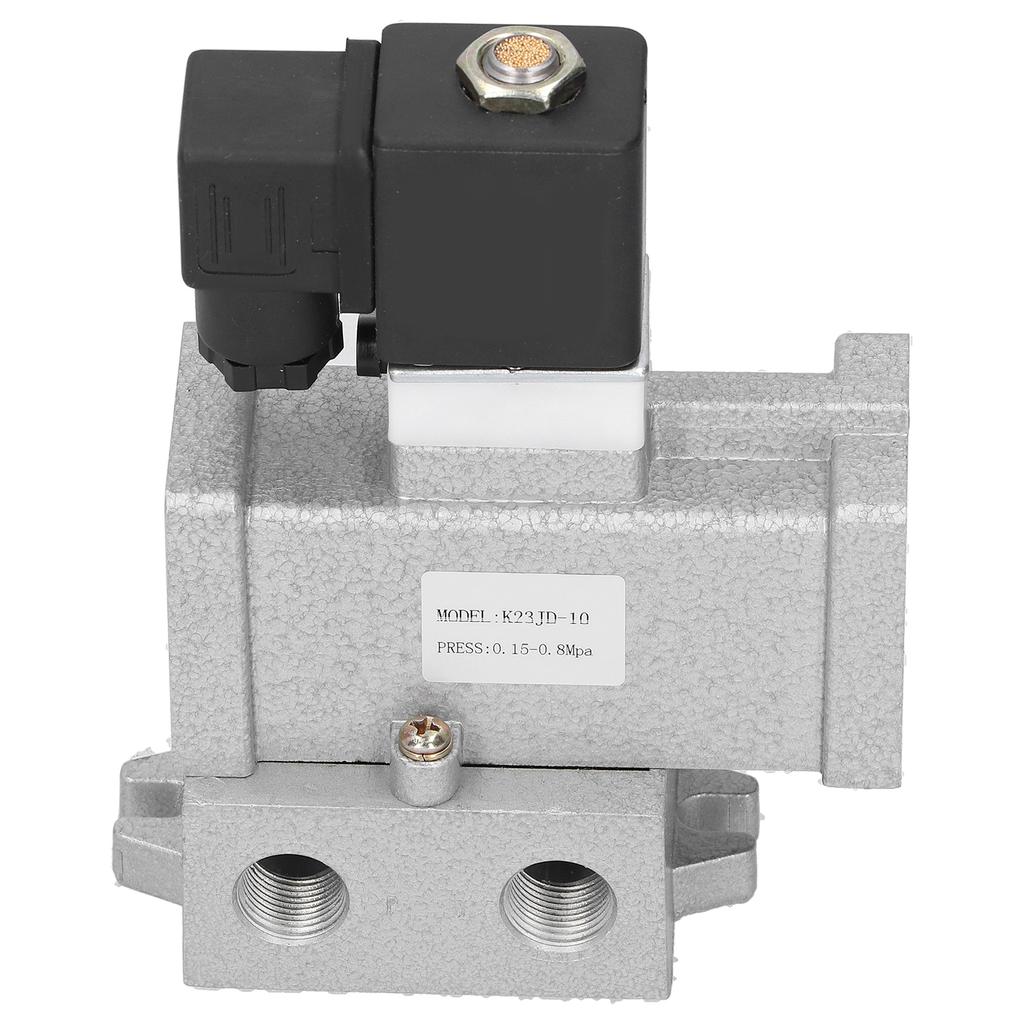

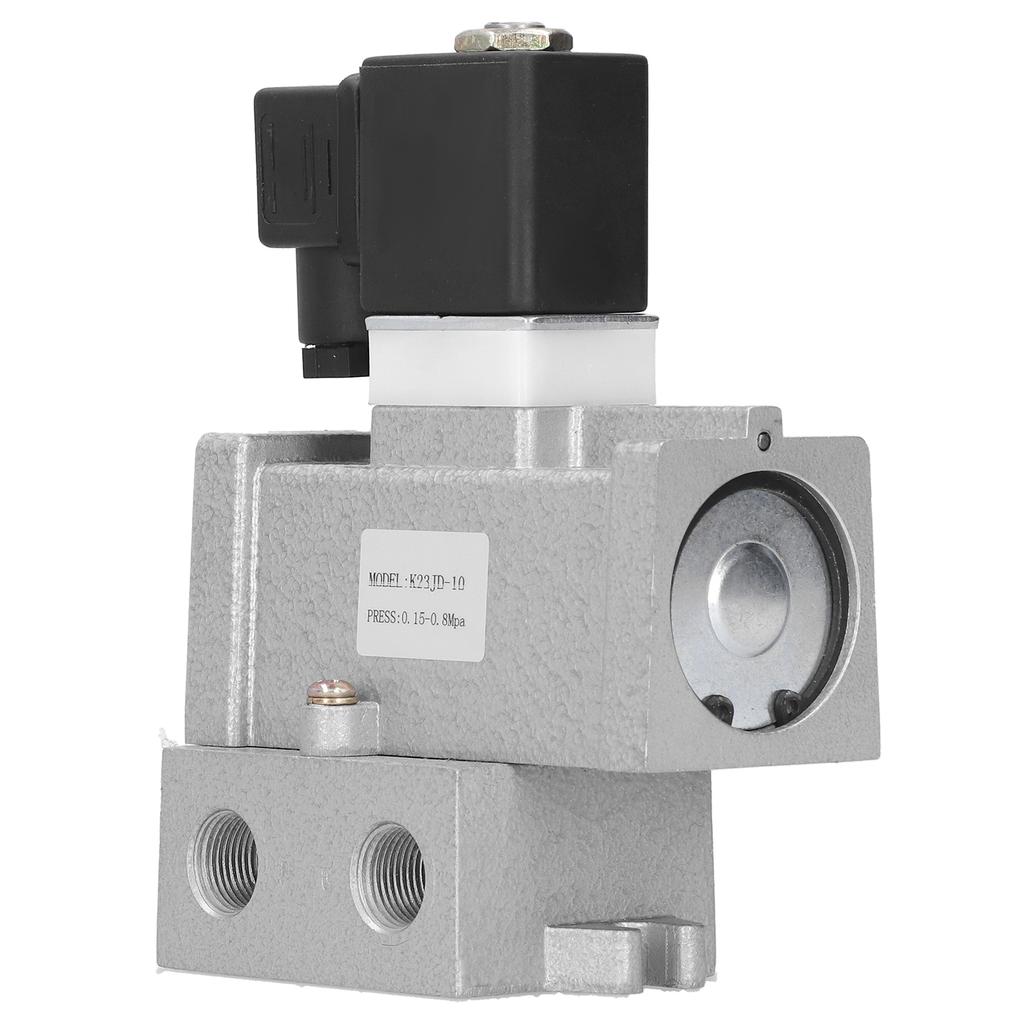

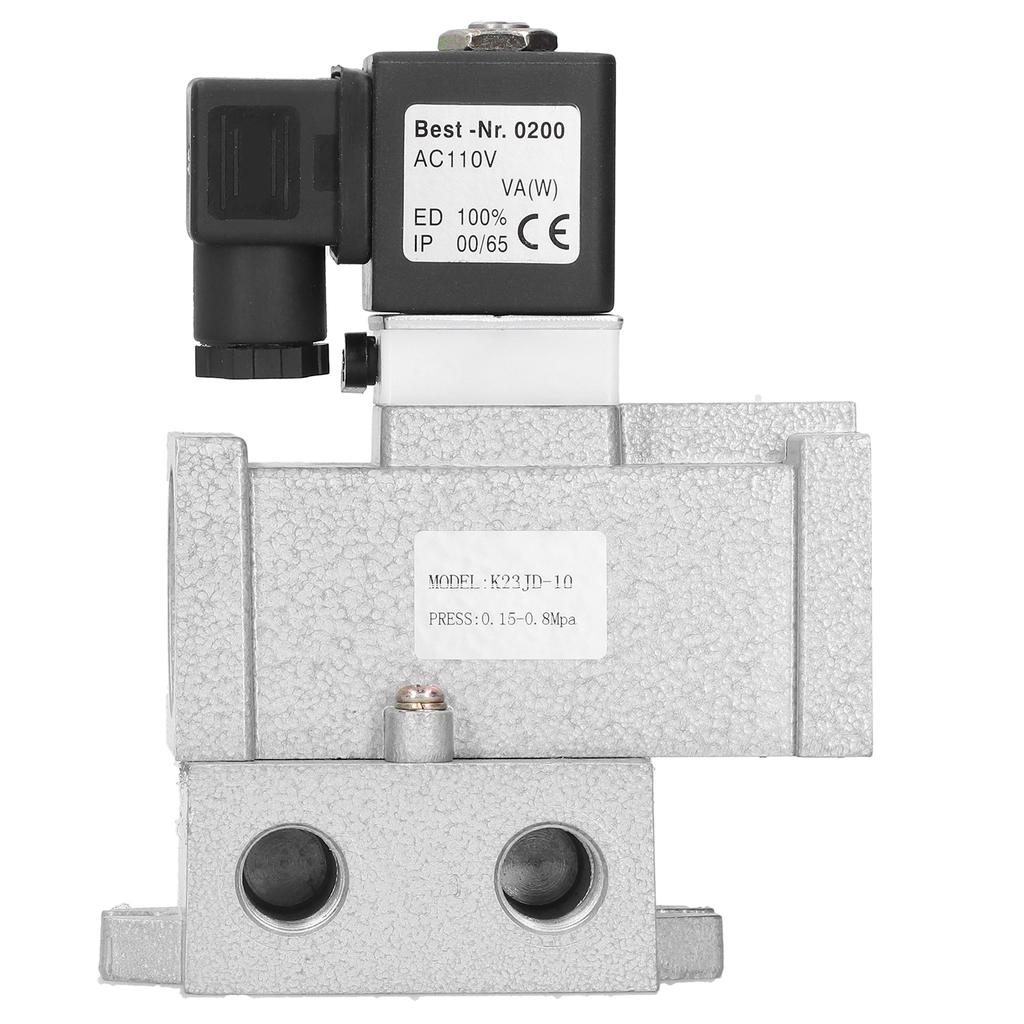

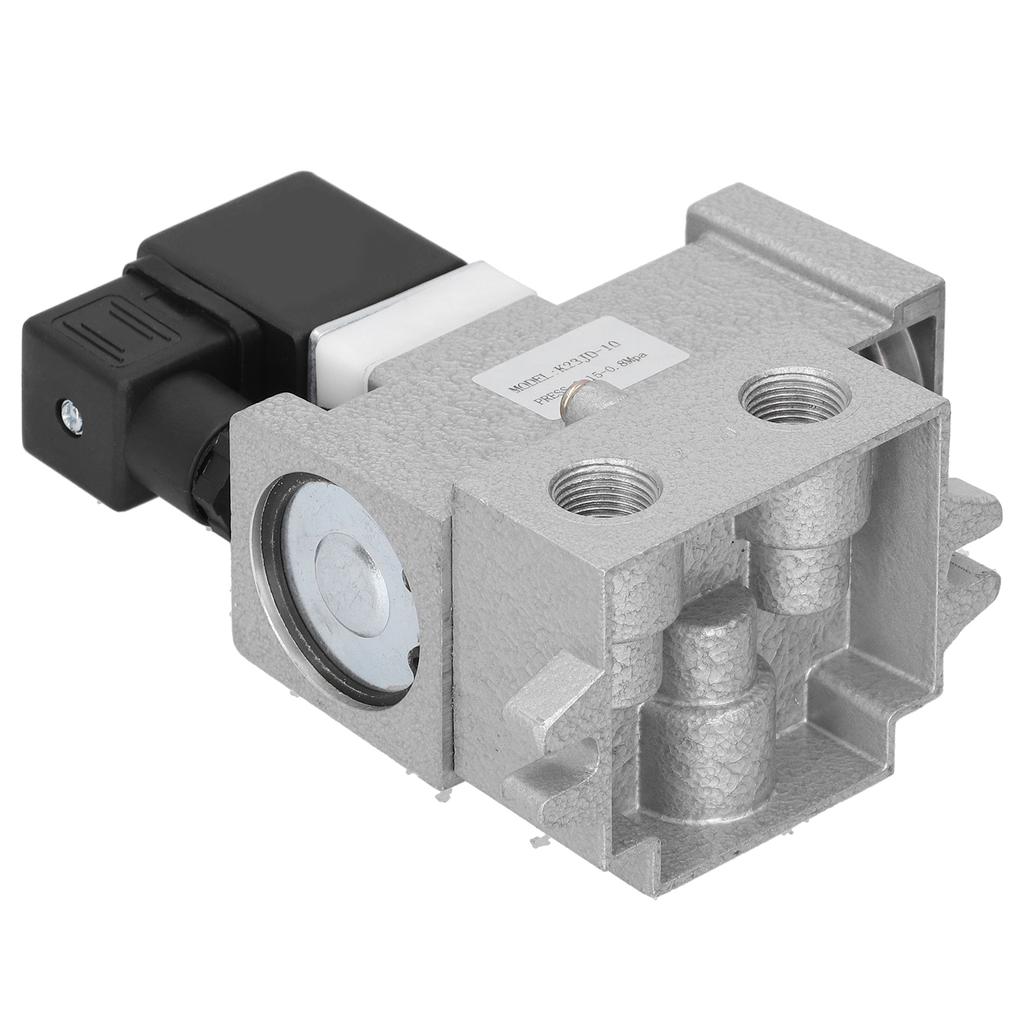

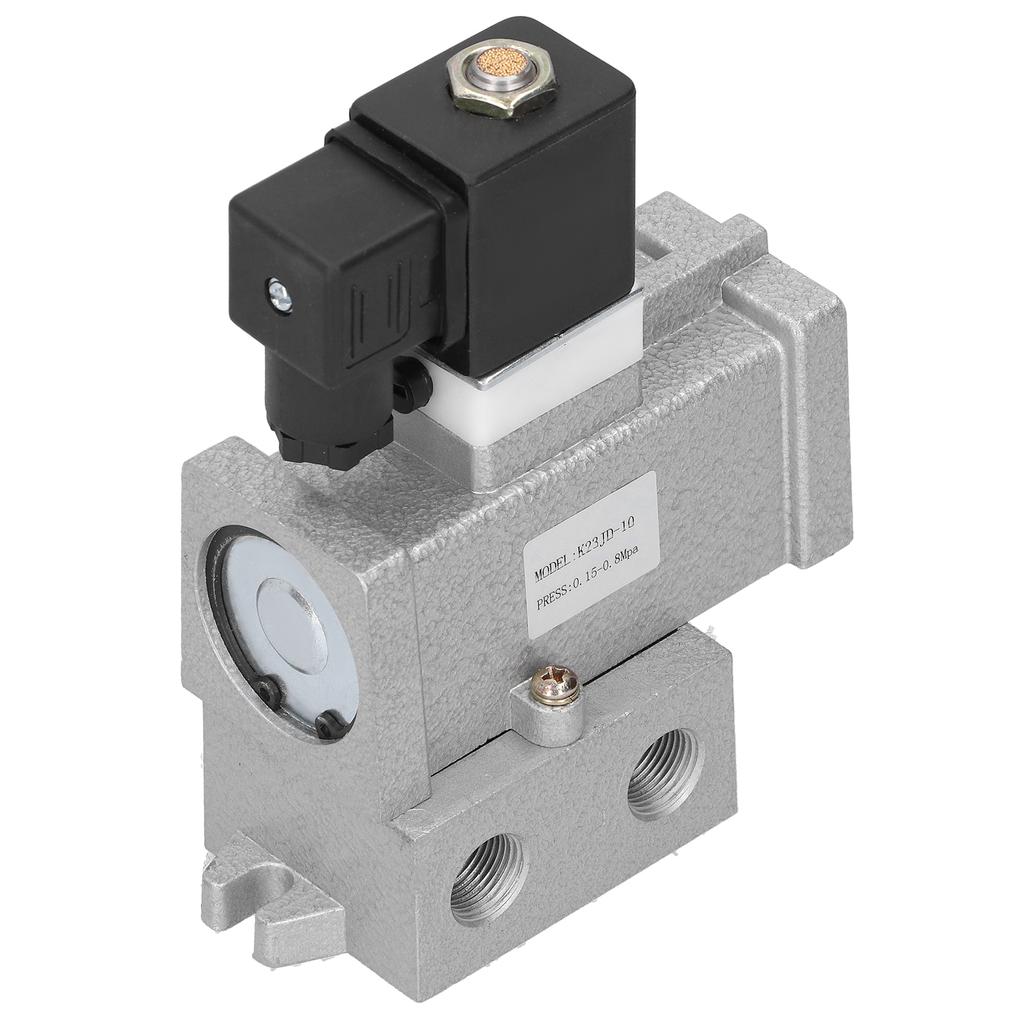

Electric Solenoid Valve G3 8in CutOff 2 Position 3 Way Connection Aluminum Alloy K23JD10

Feature: 1. Very reliable in performance, thanks to the spacer type spool valve structure it uses 2. In addition to reliable performance, the product also has many other features, so K series solenoid valves have a wide range of applications in many fields 3. In the structural design of the K series solenoid valve, there is an automatic compensation function for seal wear 4. Can meet the needs of large flow media, has a larger flow capacity than the Q series solenoid valve. Therefore, K series solenoid valve has become the choice of most users in the working medium with larger flow 5. The K series solenoid valve has a compact structure, the base plate also uses a takeover structure, which makes installation and maintenance work more convenient Specification: Item Type: Electric Solenoid Valve Material: Aluminum alloy Model: K23JD 10 Interface Diameter (inch): G3 8 Pressure: 0.15 0.8 (mpa) Reversing Time (s): less than 0.06 Maximum Allowable Commutation Frequency (Hz): 8 Discharge Flow Rate (cm³ min): 10 Environmental Temperature ( celsius ): 5 50 Medium Temperature ( celsius ): 5 50 Life (thousand times): more than 1500 Product Instructions: 1. The control power line is connected to the junction box of the coil. 2. During debugging or power failure, manual operation can be used (manual switch 0 position is off, 1 position is on). 3. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 4. Suitable to disassemble and wash or add some lubricating oil for long storage time or long term use or unskilled action.. Package List: 1 x Electric Solenoid Valve
