About this item:
1.The product comes with a single USB+Type-C fast charging port, supporting both Type-C output and USB PD2.0/PD3.0 (PPS), DCP (Apple and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Fast Charging Protocol FCP and High Voltage SCP, Samsung Fast Charging Protocol AFC (MAX 12V), MTK PE+1.1 and MTK PE+2.0 fast charging protocols. It can automatically identify the fast-charging protocol supported by the output end connected to the device
2.The input voltage of the product is 12V-24V, which can be installed on vehicles such as cars, motorcycles, beach bikes, SUVs, boats, etc., with a wider installation range
3.The product is equipped with a built-in power MOS, which can provide a maximum output power of 20W. It can automatically adjust the output voltage and current according to the recognized fast charging protocol, thus adapting to the maximum charging power of each mobile phone; And it has the function of automatic adjustment of overcurrent point. When the device connected to Type-C interface supports high voltage SCP, it will prioritize the output of high voltage SCP. Compared with PD output, the charging power is higher, and it supports a maximum output of 10V/2.5A
4.The product has a line compensation function, which increases the output current and correspondingly increases the output voltage to compensate for the voltage drop caused by the impedance of the connecting line. It also has a soft start function to prevent the impact current during startup from affecting the stability of the input power supply
5.The product is equipped with a voltage display and features high-end logo lighting on the body, making it more aesthetically pleasing and meeting the aesthetic needs of customers
Product advantages:

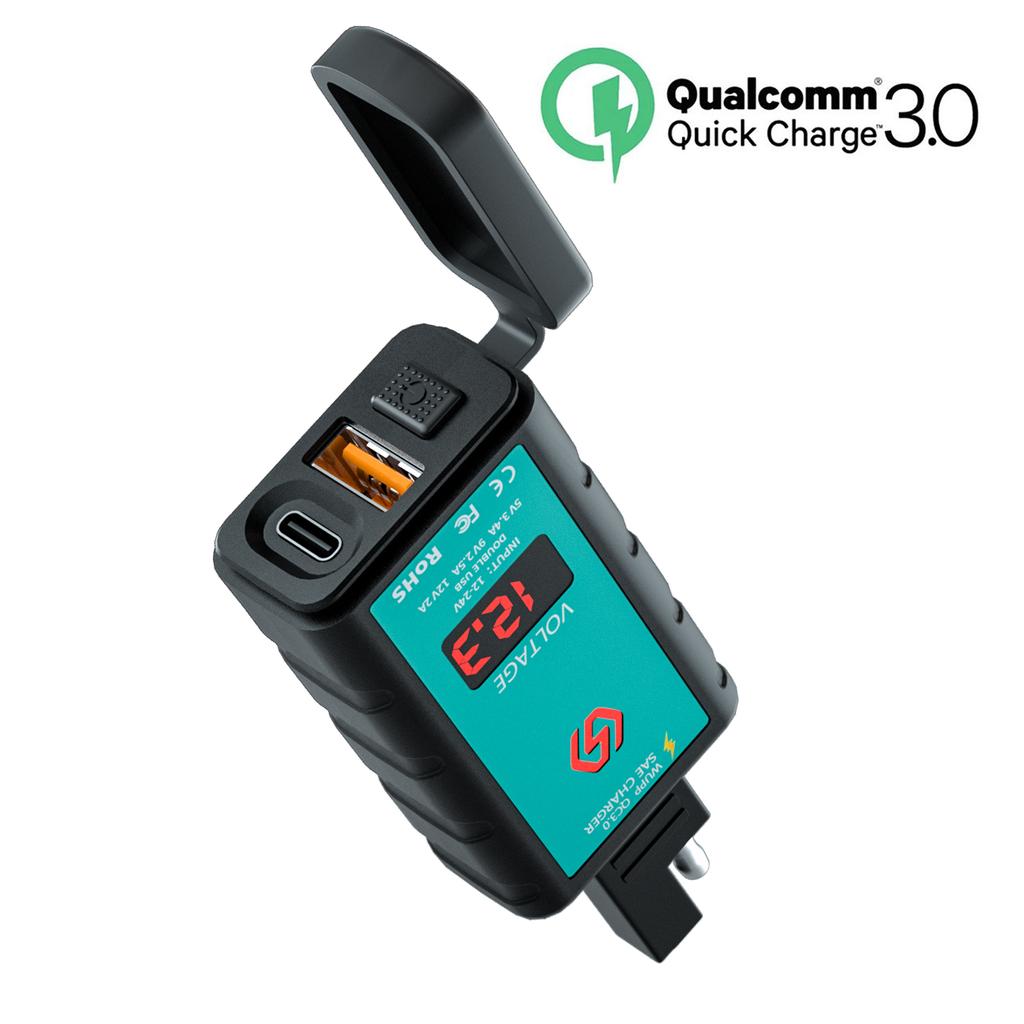

【1】 The product comes with a waterproof cover, with a waterproof rating of IP66. Simply cover it to prevent water damage, even in rainy weather, there is no need to worry
【2】 The product comes with an independent button switch, which can be used and stopped with just one press, making it easy and fast to operate
【3】 The product design adopts an integrated SAE socket, which can be directly plugged into the original car SAE socket for easier installation
【4】 The product comes with two mounting brackets for handlebars and screws, with two fixing methods to meet the needs of most car models on the market
Specifications:
Product Name: Square fast charging single USB+Type-C charger with voltmeter+button switch+integrated SAE socket
Product Model: ZH-1422B1
Net weight of product: 75g
Product gross weight: 97g
Packaging method: Color box packaging
Packaging size: 7.3x5.5x11.4cm
Product Material: ABS+Silicone+Copper
Product Color: Black

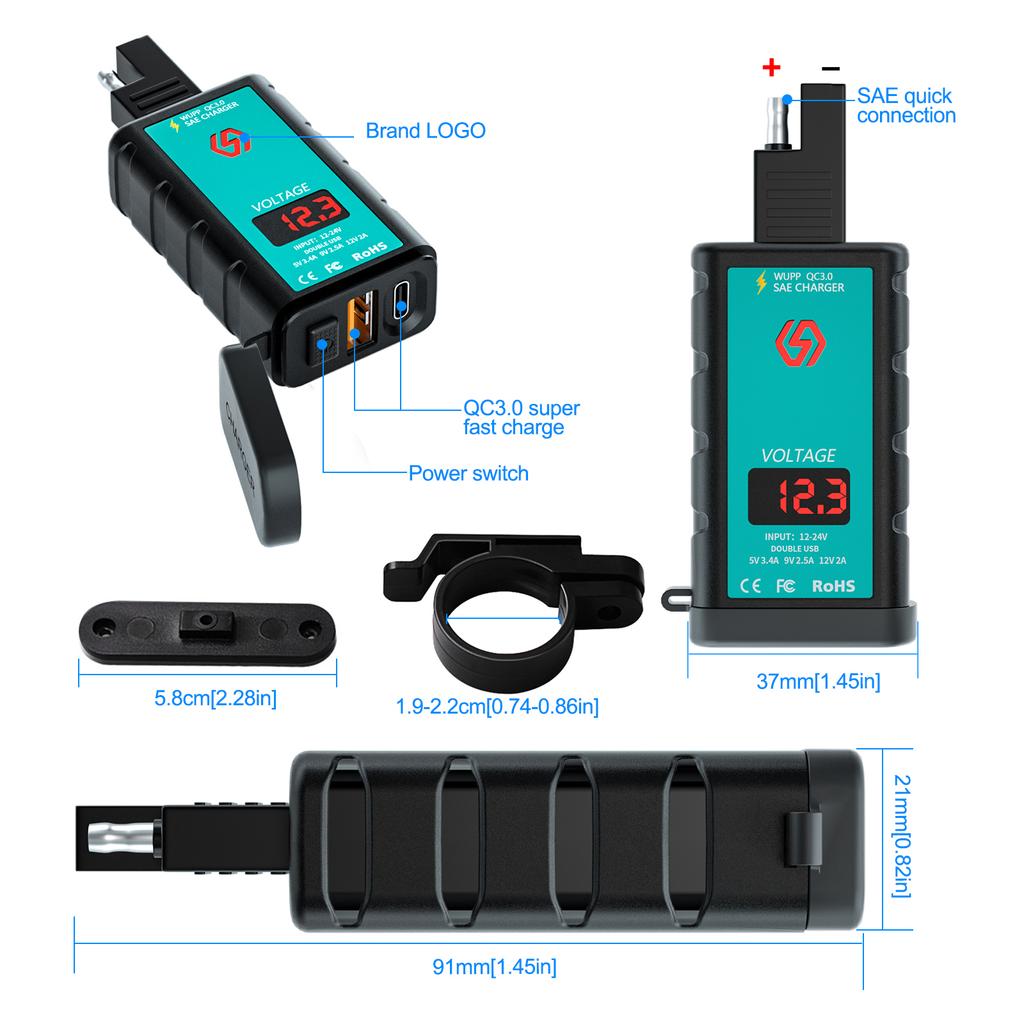

Product size: Length 66.6mm, Width 38mm, Height 21.3mm
Input voltage: DC12V-24V
Output parameters: USB port output: QC3.0: 5V 3.4A/9V 2A/12V 1.5A; Type-C output: QC3.0: 5V 3.4A/9V 2A/12V 1.5A
Output power: USB output: 18W; Type-C output: 30W
Color of voltmeter: Red
Monitored voltage range: 6-30V
Installation method: handlebar installation, screw fixation (two fixed installation methods)
Installation handle diameter: 19-22mm
Product Usage: Can be used to power most car accessories such as mobile phones, tablets, iPads, navigation, and GPS
Scope of use: Can be installed on DC12V-24V vehicles such as cars, motorcycles, beach bikes, SUVs, boats, and other means of transportation
Product features: There are multiple protection functions: input overvoltage and undervoltage protection; Output overcurrent, overvoltage, undervoltage, and short-circuit protection; Reverse connection protection; High temperature protection inside the chip

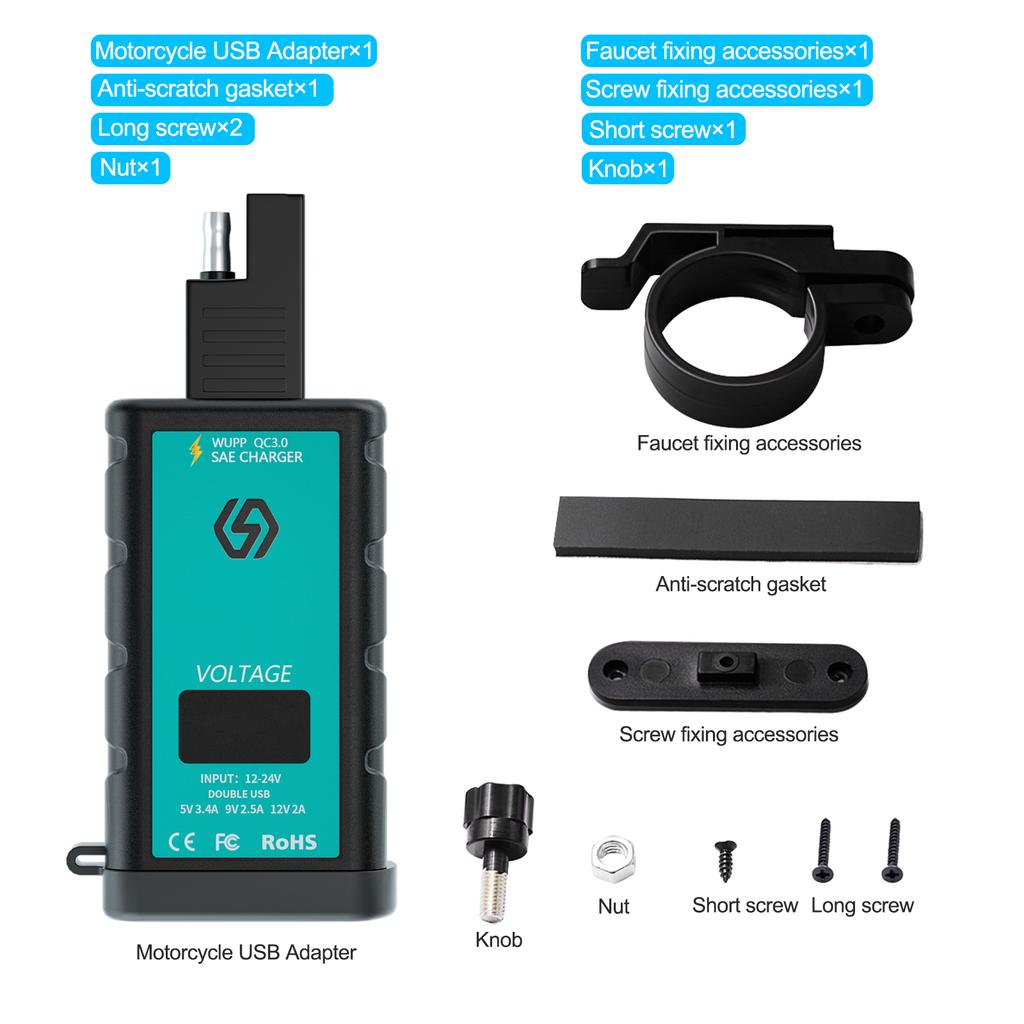

Product accessories: handlebar mounting bracket * 1, screw mounting bracket * 1, large screw * 2, small screw * 1, handlebar fixing screw * 1, anti-slip gasket * 1
