Feature:
1. High?end CNC handwheel, finely crafted, has excellent quality and good performance.
2. High?quality plastic material, hard, corrosion?resistant, and has long service life.
3. 5V, 100PPR, A A? B B?, suitable for 98percent of Chinese systems, to better meet your needs.
4. Small, compact, easy to carry and operate, can bring you more convenience.
5. Well?made, excellent quality, higher work efficiency, and bring you a better experience.
Specification:
Condition: 100percent Brand NewItem Type: HandwheelMaterial: PlasticColor: As the Picture ShownEncoder Specification:
Power Supply Voltage: DC5+10percent
Pulse Number: 100PPR
Output Voltage (VH) (Maximum): more than 3.8V
Output Voltage (VL) (Minimum): less than 0.3V
Output Current: 80mA
Model Format: A.B.A.B
Output Resistance: DIFF
Response Speed: 5KHz
Current Consumption: 50mA
Starting Torque (Maximum): 150g
Axial Volume (minimum): R 2kg+10percent
Rotation Life (minimum): 1KKR
Operating Temperature: 0 celsius +50 celsius
Storage Temperature: 10 celsius +70 celsius
Operating Humidity: 3580percent
Vibration Resistance: 0.5G
Heavy Strike Resistance: 2G.Wiring Table Specification: Output Signal: A B V0 V+ A B

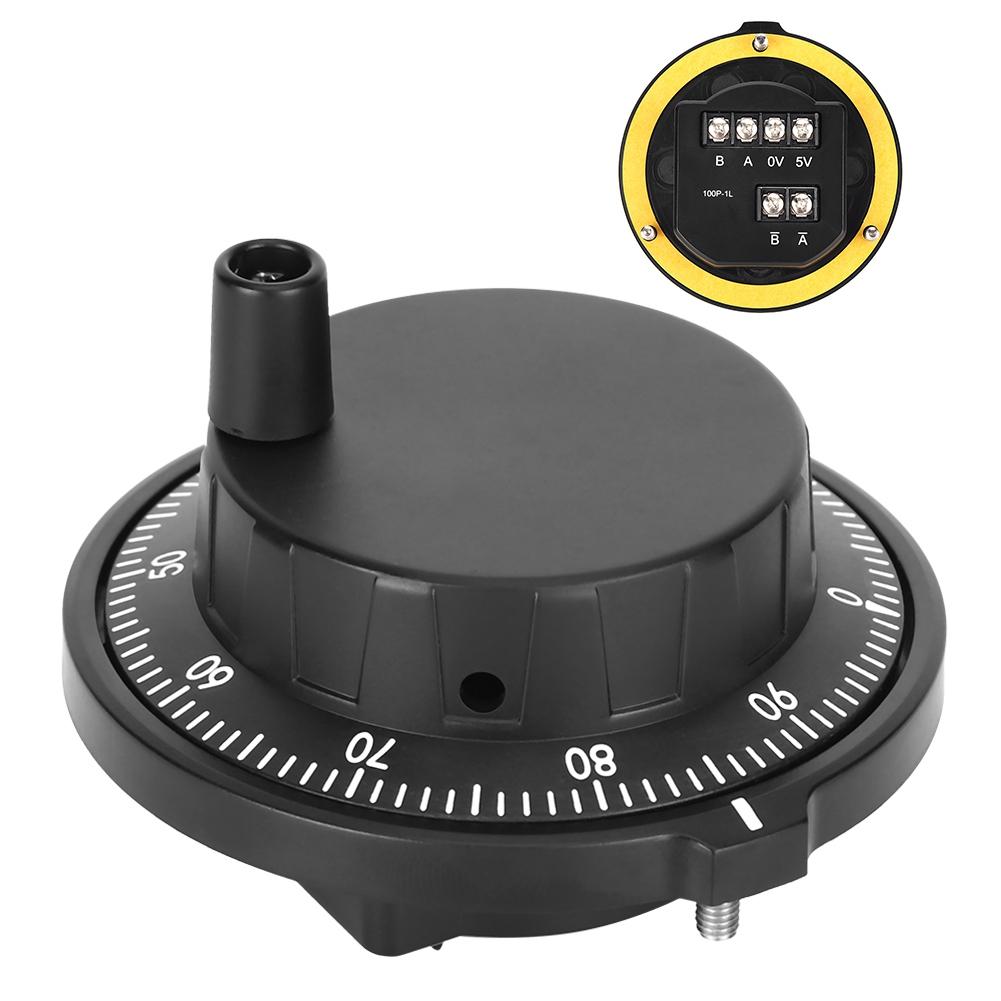

TerminalLine Driver A: 1 2 3 4 5 6
Instruction: YP800100B1L represents a large handwheel with a Diameter of 80mm, the output is 100 pulses, the working voltage is 5V, and the output mode is longline output. This product is suitable for CNC machine tools, two orthogonal output signals (A, B), 100 pulses , The output mode is longline drive.
Package List:
1 x Handwheel1 x Instruction3 x Terminal
Note:
1. The encoder is a precision instrument. It is forbidden to knock, drop, bump, etc. during installation. Improper installation or use will affect the performance and service life of the encoder.2. Pay attention to the shaft load of the encoder during installation, and must not exceed the limit load.3. Be careful not to exceed the limit speed of the encoder during use. If the speed exceeds the limit, the electrical signal of the encoder may be lost.4. The wiring must be correct. If the wiring error will cause damage to the internal circuit of the encoder, the unused cable shall be insulated before the initial starting.5. Maximum response frequency limited maximum speed.High?end CNC handwheel, finely crafted, has excellent quality and good performance.
High?quality plastic material, hard, corrosion?resistant, and has long service life.
5V, 100PPR, A A? B B?, suitable for 98percent of Chinese systems, to better meet your needs.
Small, compact, easy to carry and operate, can bring you more convenience.
Well?made, excellent quality, higher work efficiency, and bring you a better experience.
No-delivery refund
