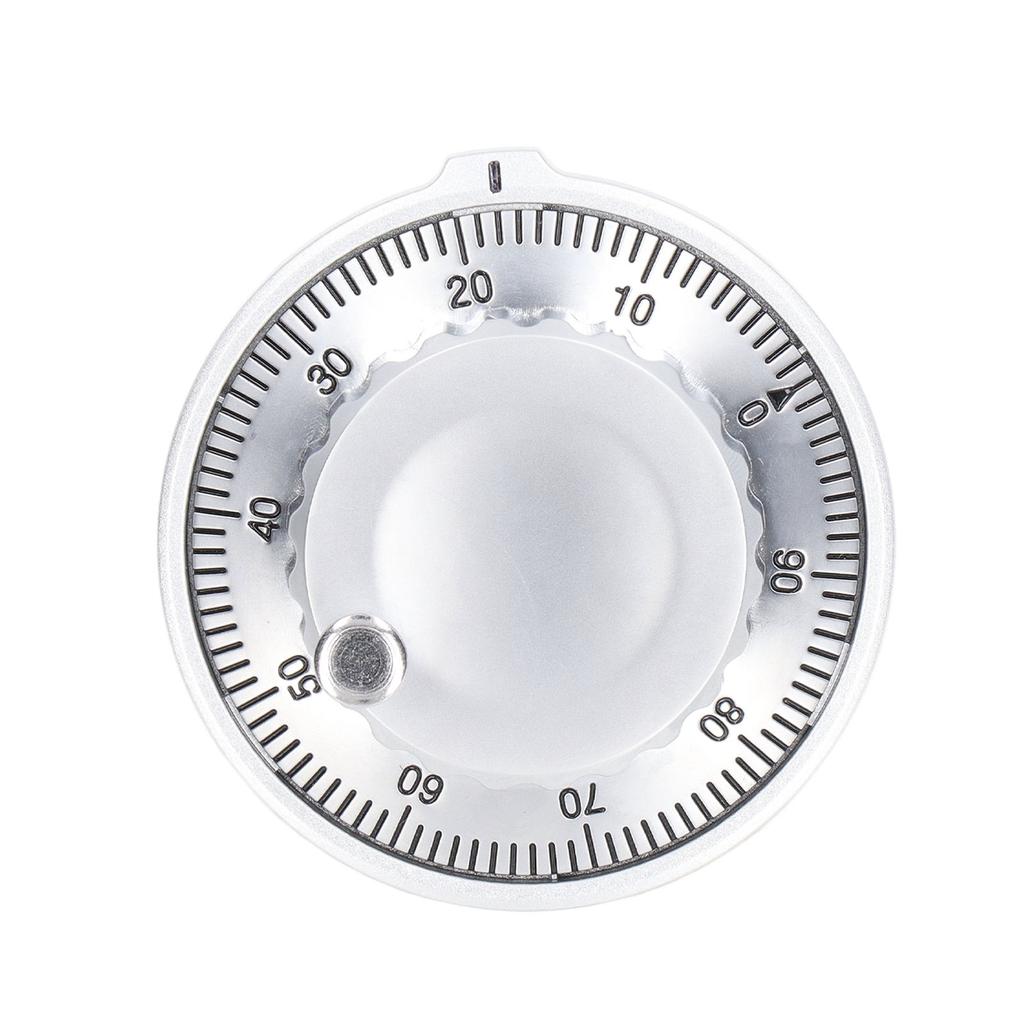

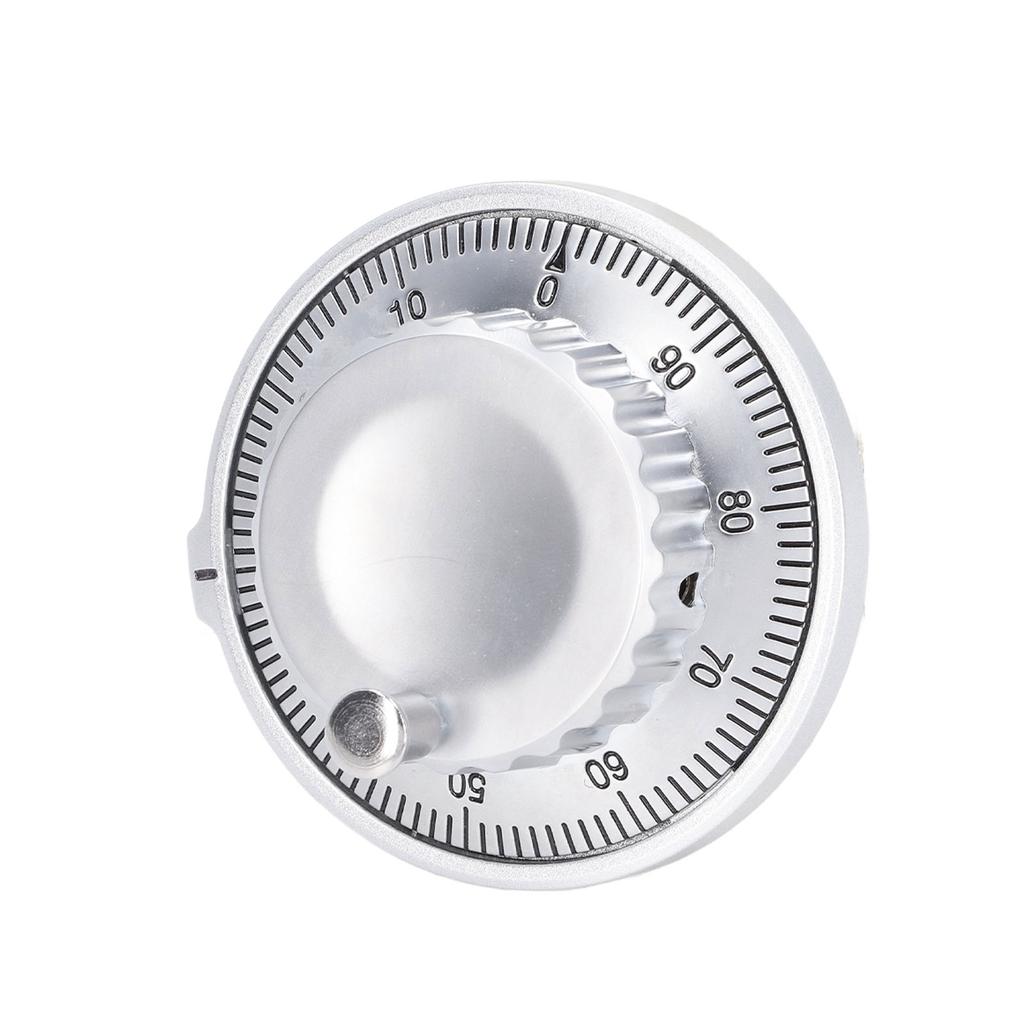

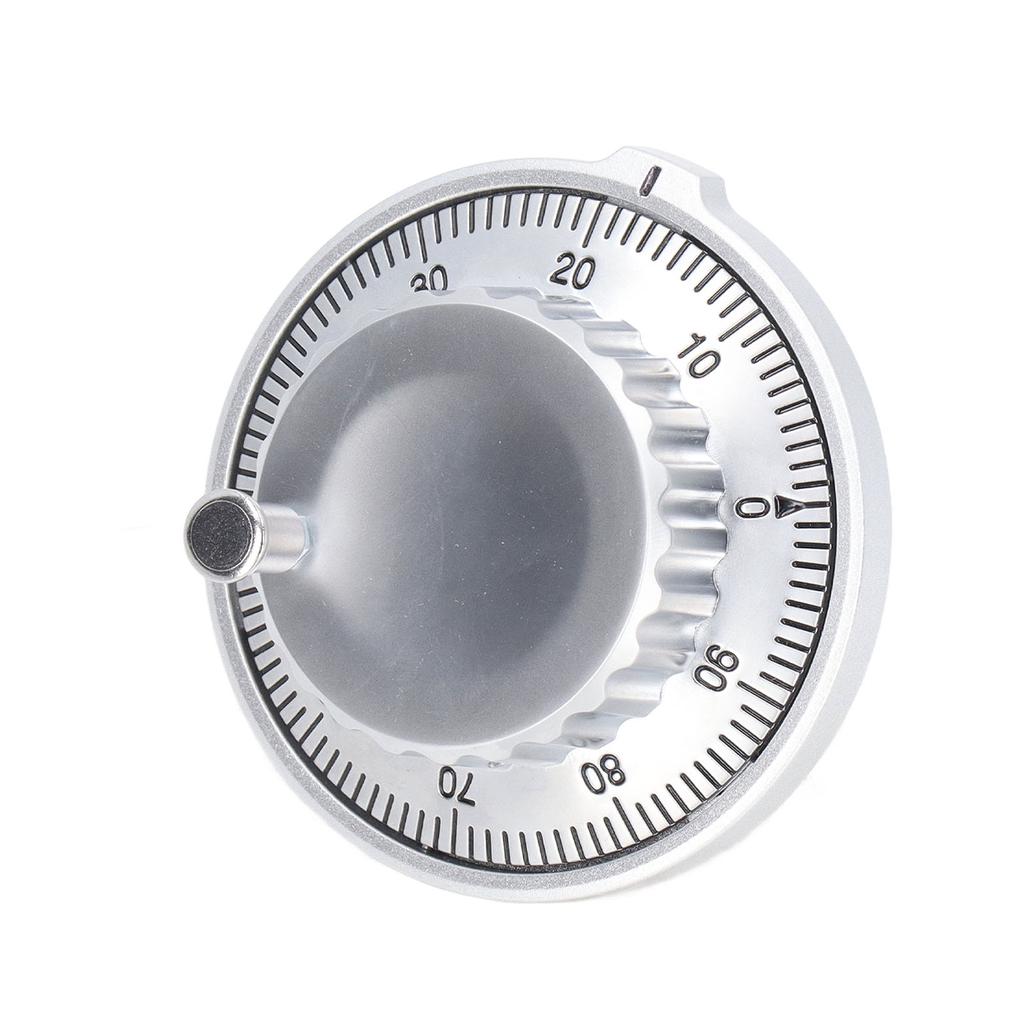

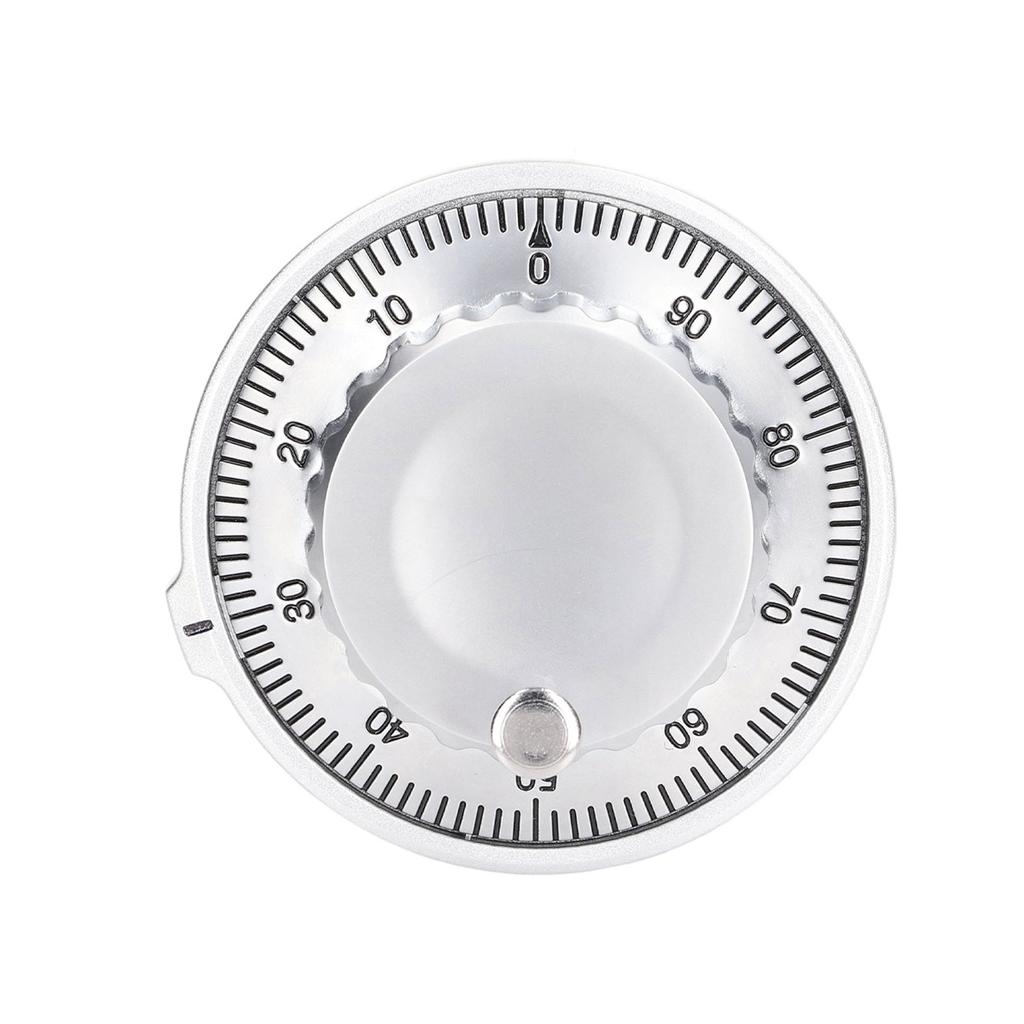

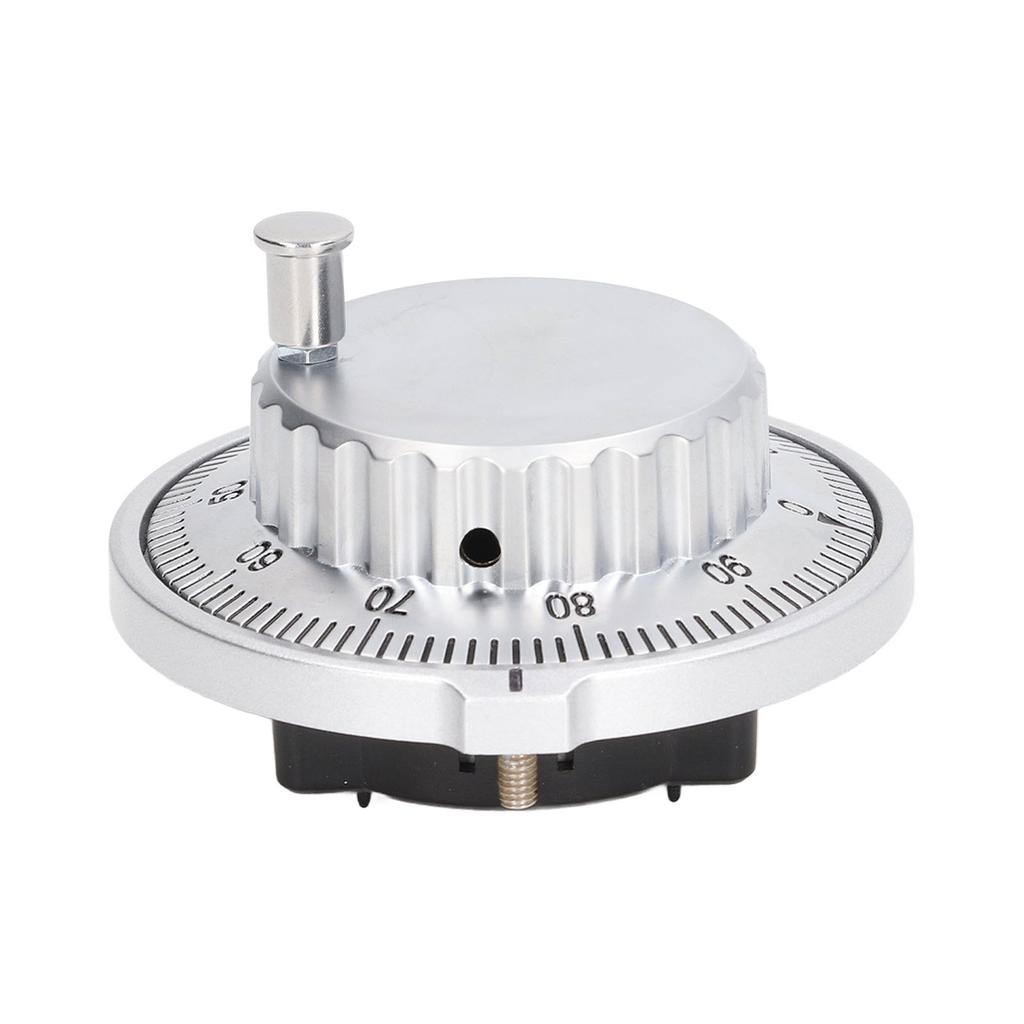

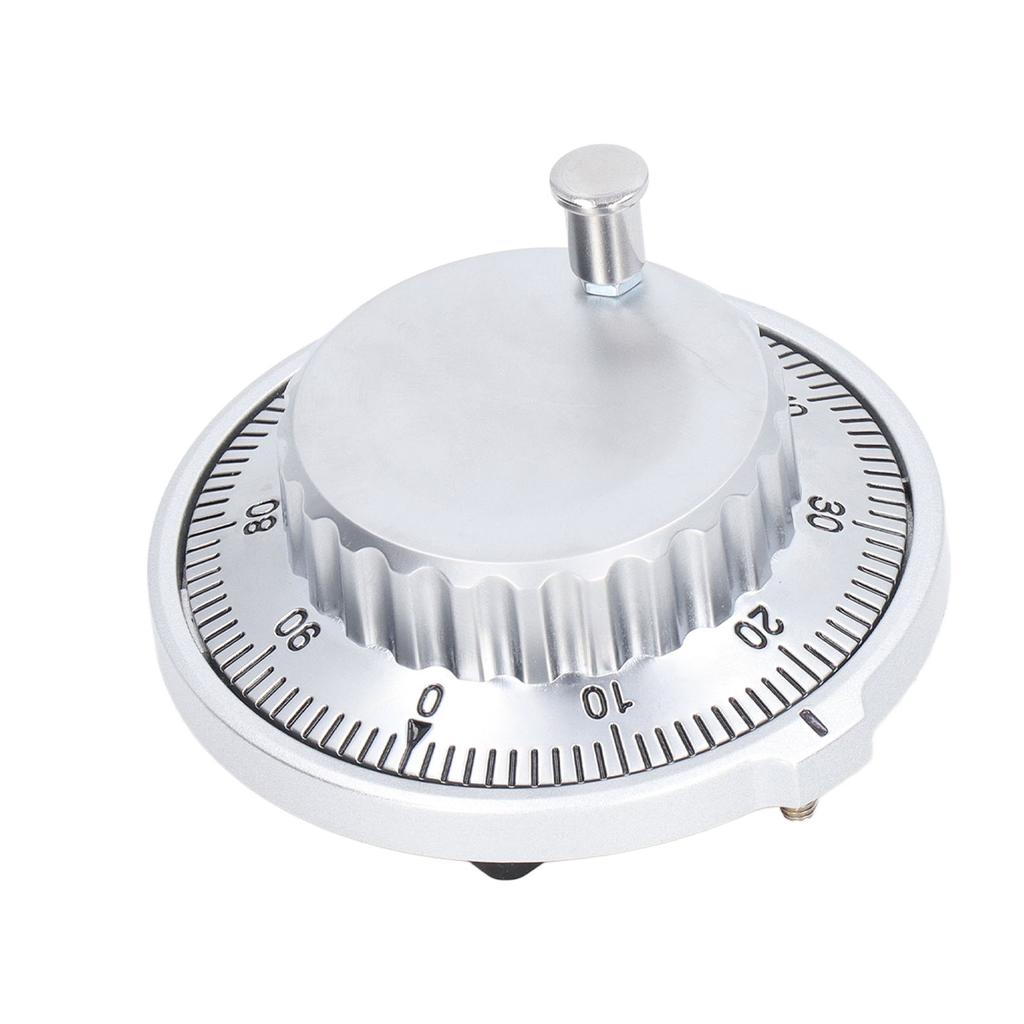

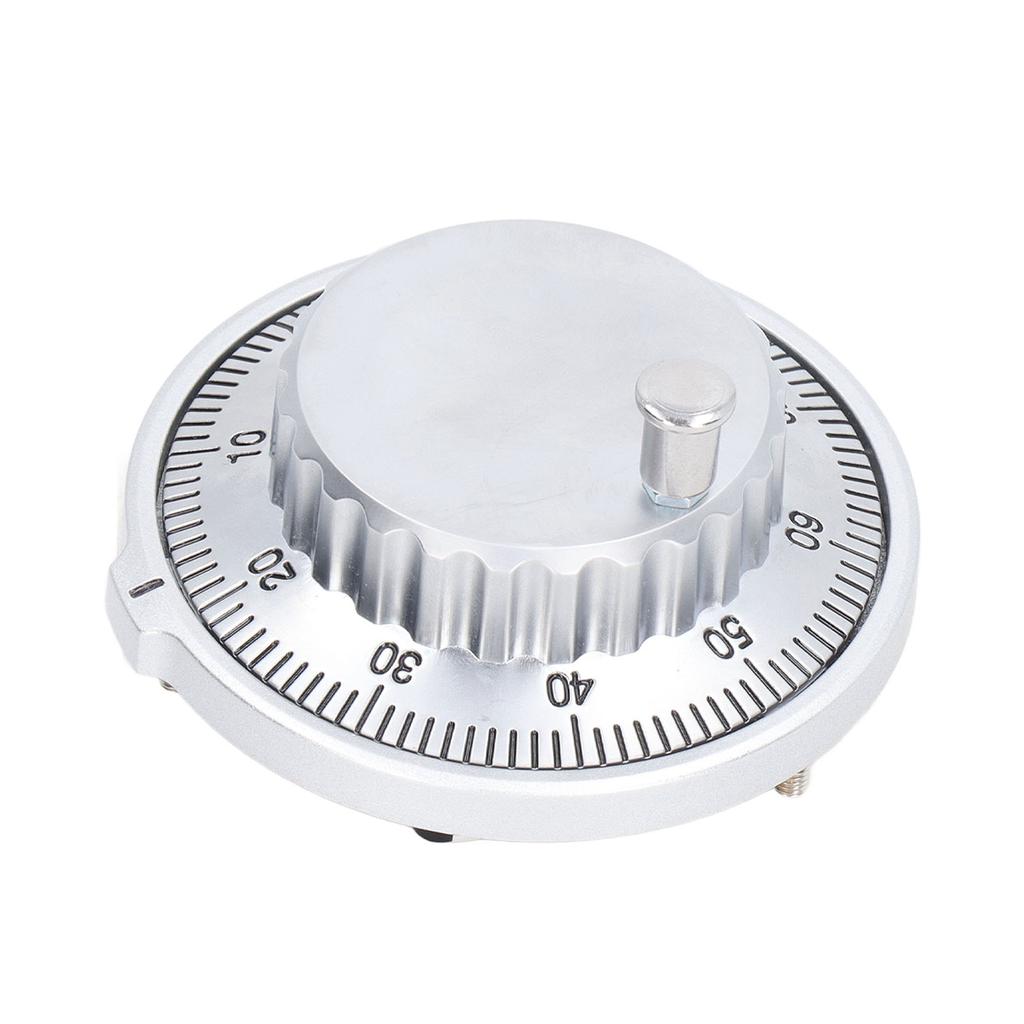

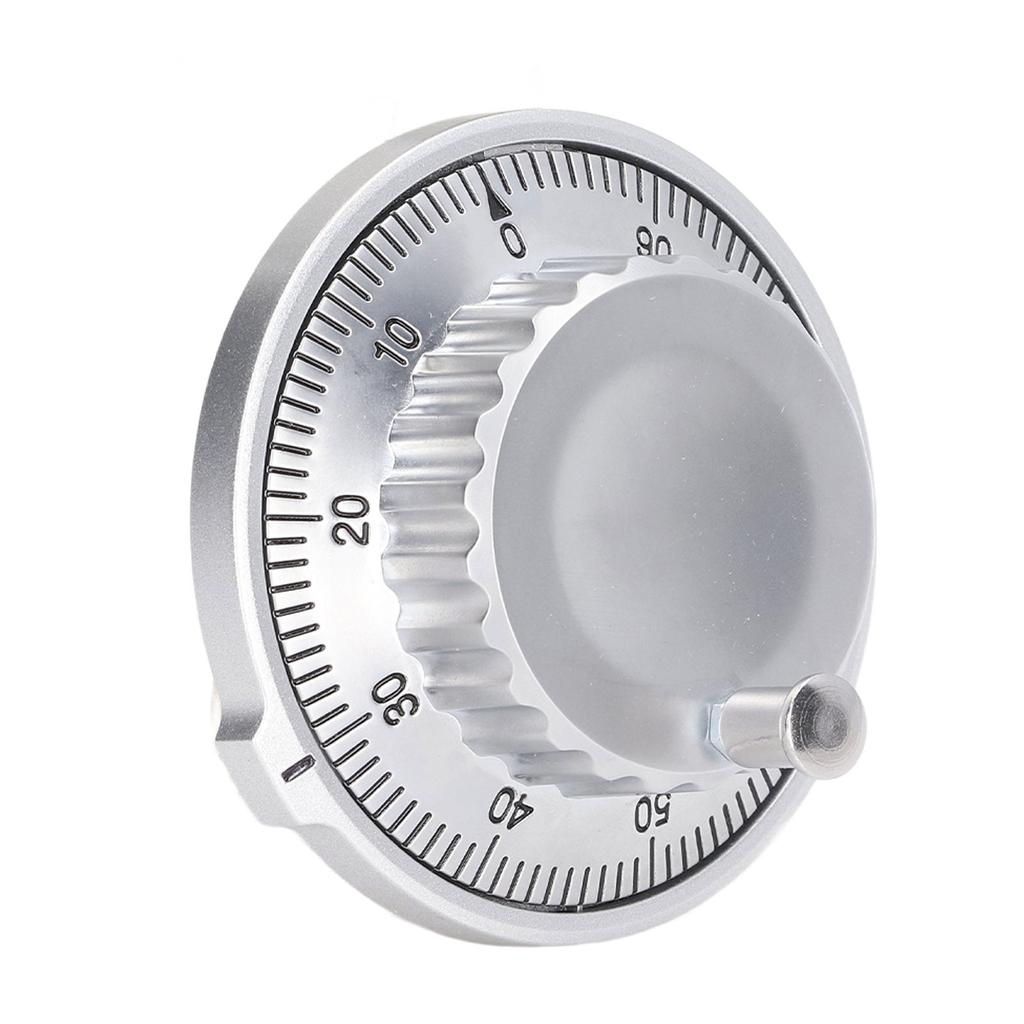

Manual Pulse Encoder 100PPR 4 Terminal Electronic CNC Manual Pulse Generator for Grinding Machine

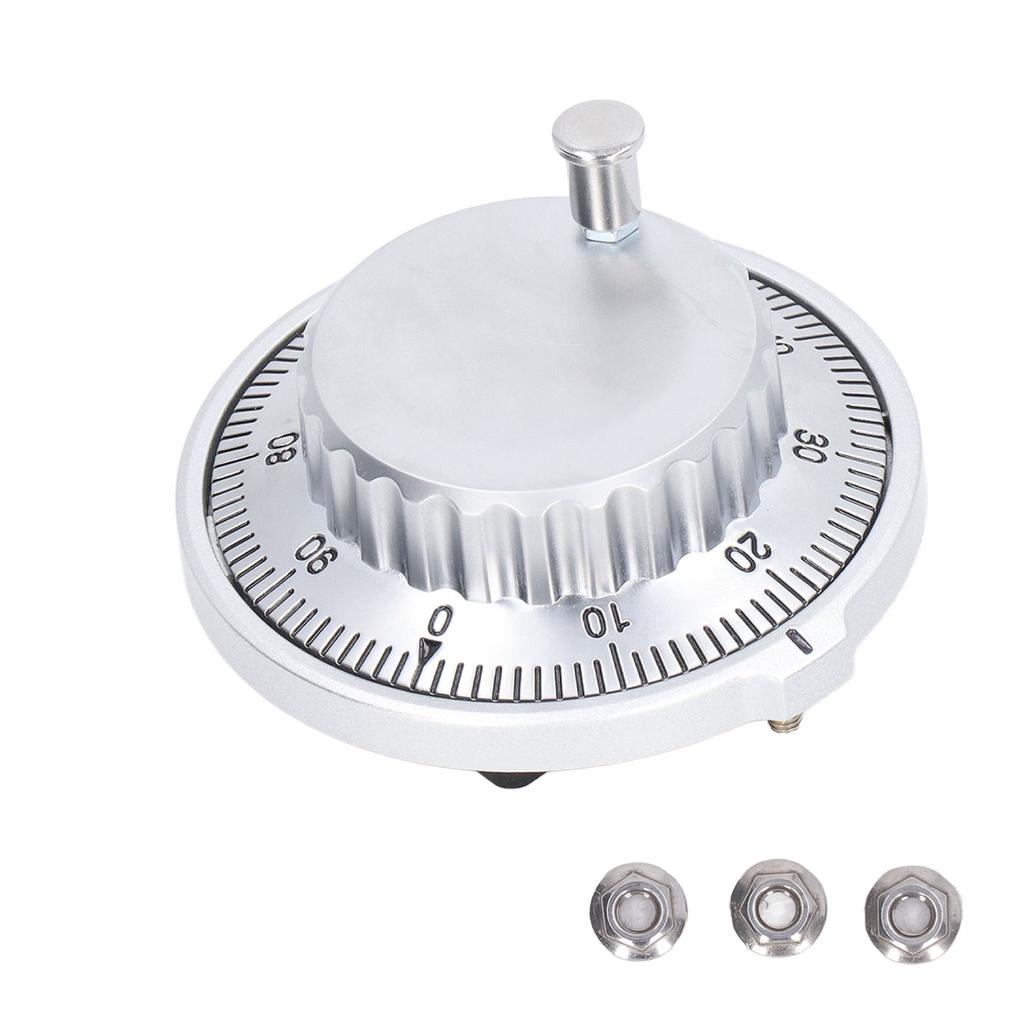

Feature: 1. Long Line Driver Output: The signal output of this CNC encoder is two way quadrature, the output method is long line driver output 2. High Efficiency: The output pulse of this manual pulse generator is 100 PPR, has high working efficiency with stable performance 3. Simple Operation and Installation: The operation is simple and smoothly, will not stuck, and the installation is easy with 4 terminal connection 4. Sturdy and Durable: The electronic CNC encoder is made of high quality aluminum alloy material, which is sturdy and durable 5. Wide Usage: This manual pulse encoder is widely used in CNC numerical control systems, such as CNC lathes, CNC grinding machines, CNC milling machines, engraving machines, etc. Specification: Item Type: Manual Pulse Encoder Material: Aluminum Alloy Rotation Table Diameter: Approx.80mm 3.1in Output Pulse: 100PPR Working Voltage: 5V Output Mode: Long line output. Package List: 1 x Manual Pulse Encoder3 x Accessory1 x Manual Note: 1. The encoder is a precise instrument, it is forbidden to knock, drop, collide, etc. during the installation process. Improper installation or use will affect the performance and service life.2. Do not over load.3. Be careful not to exceed the limit speed of the encoder during use, if the speed exceeds the limit, the electrical signal of the encoder may be lost.4. The wiring must be correct, if the wiring is wrong, the internal circuit of the encoder will be damaged. Insulate the unused cables before the initial startup.5. The maximum response frequency is limited to the maximum speed.
