Hign-concerned Chemical : None
Dissipation Power : 1
Supply Voltage : 1
Application : Computer
Type : Voltage Regulator
Origin : China
Condition : New
ENC28J60 Network Module : Network Modules
Place Of Origin : China (Mainland)
modname=ckeditor

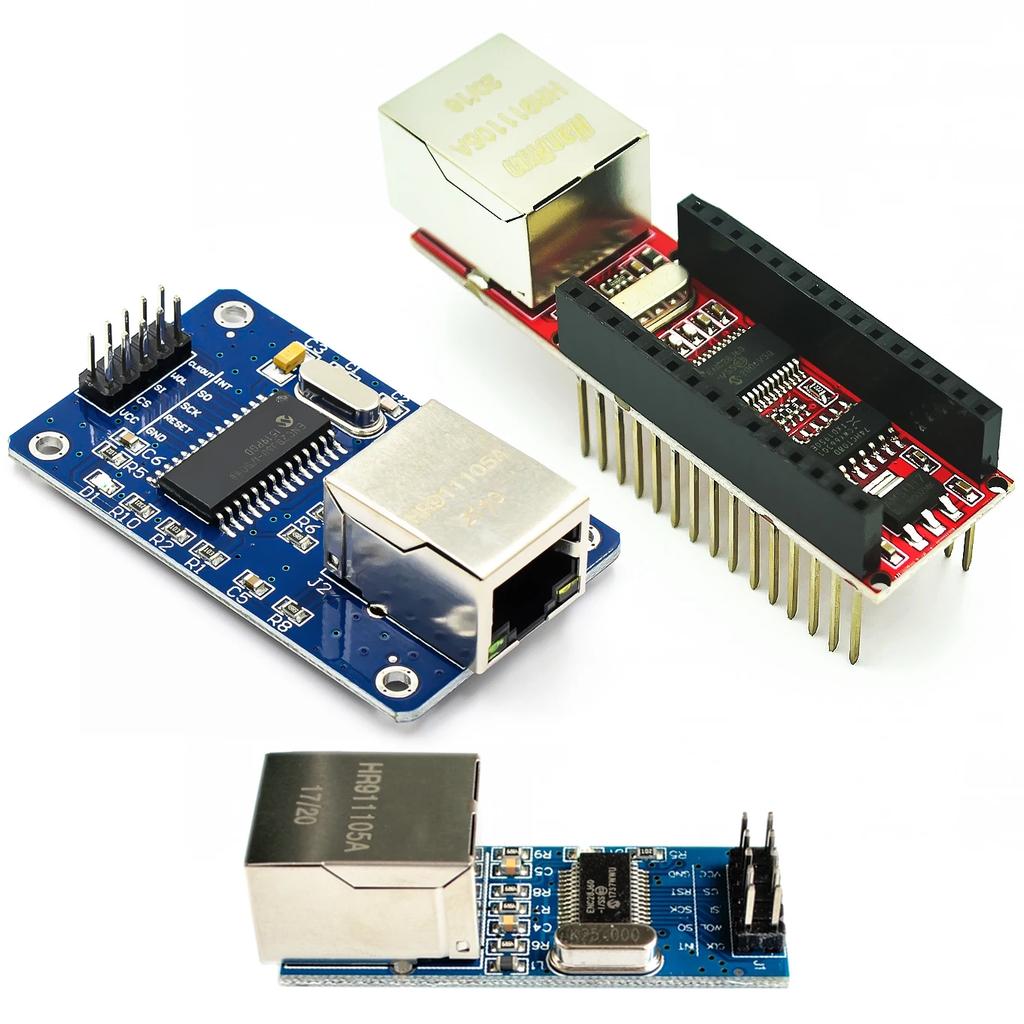

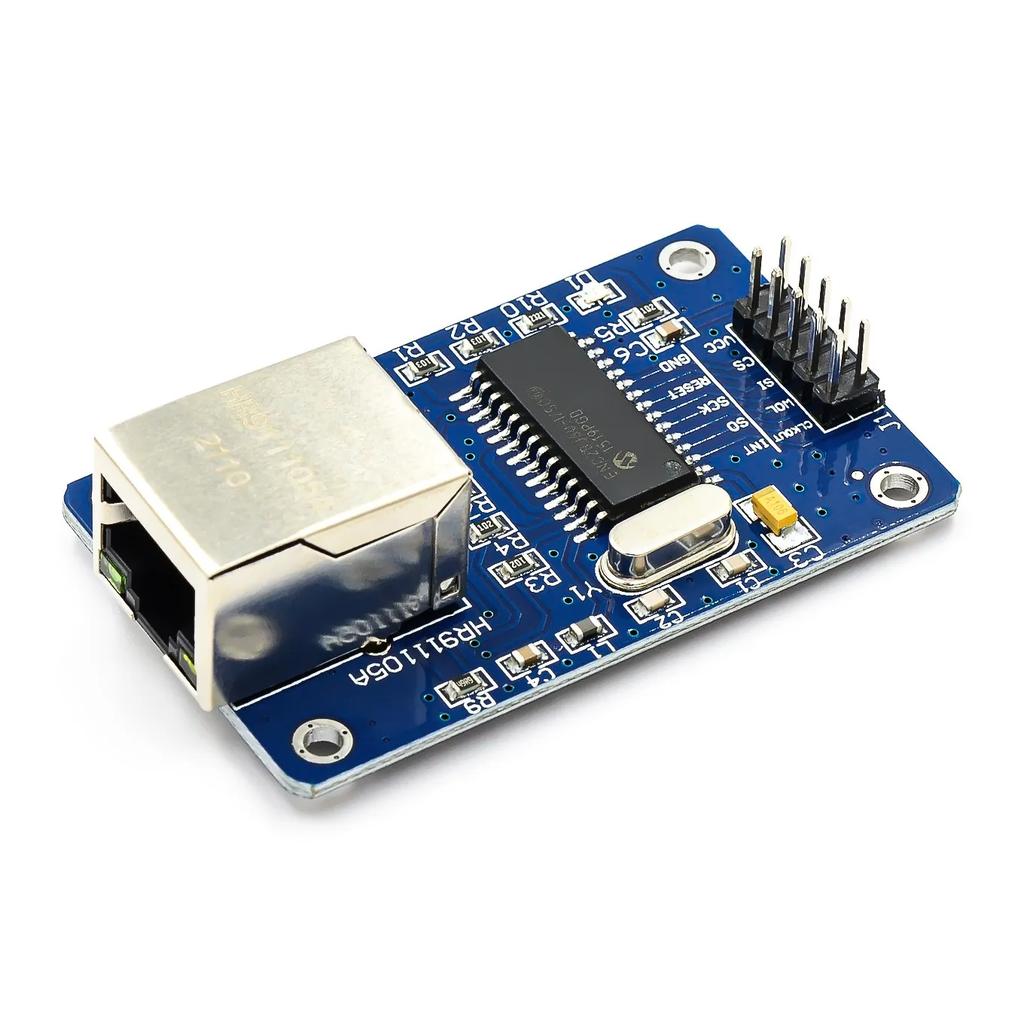

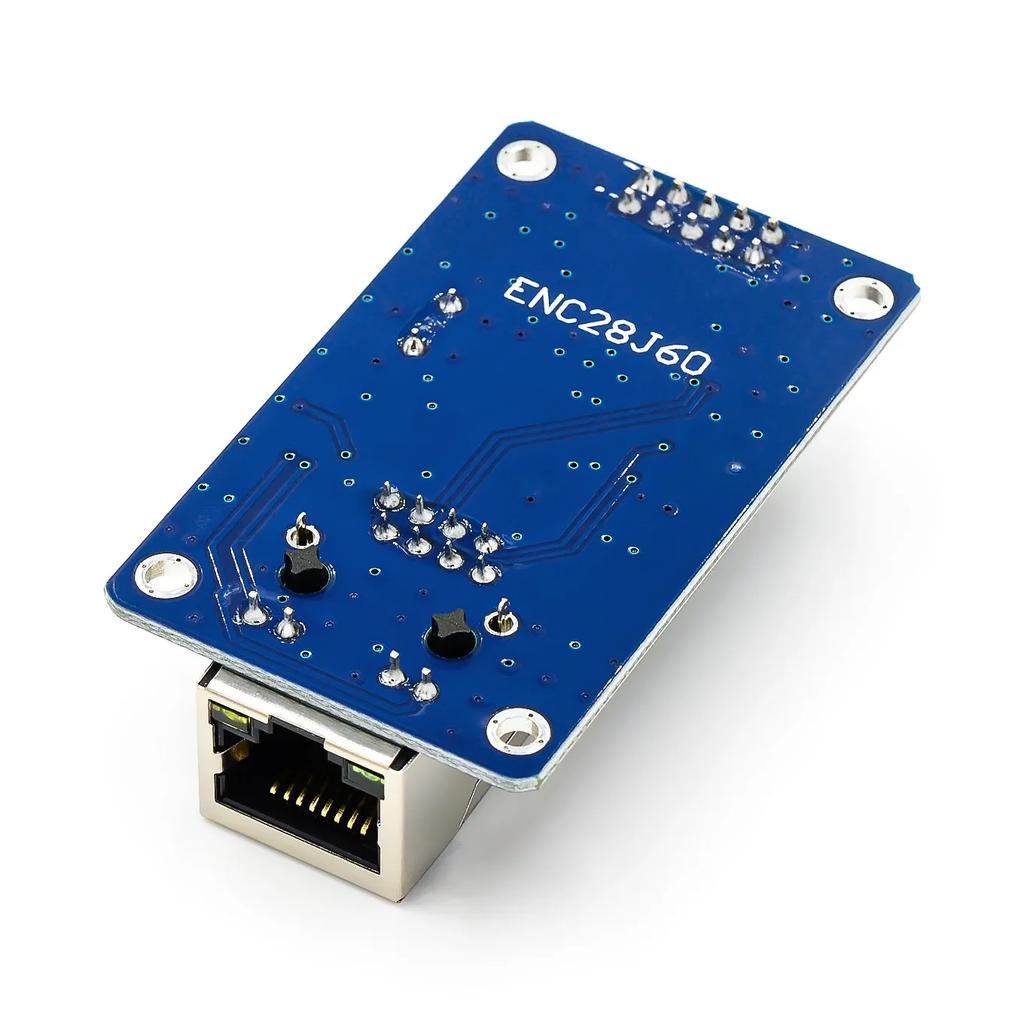

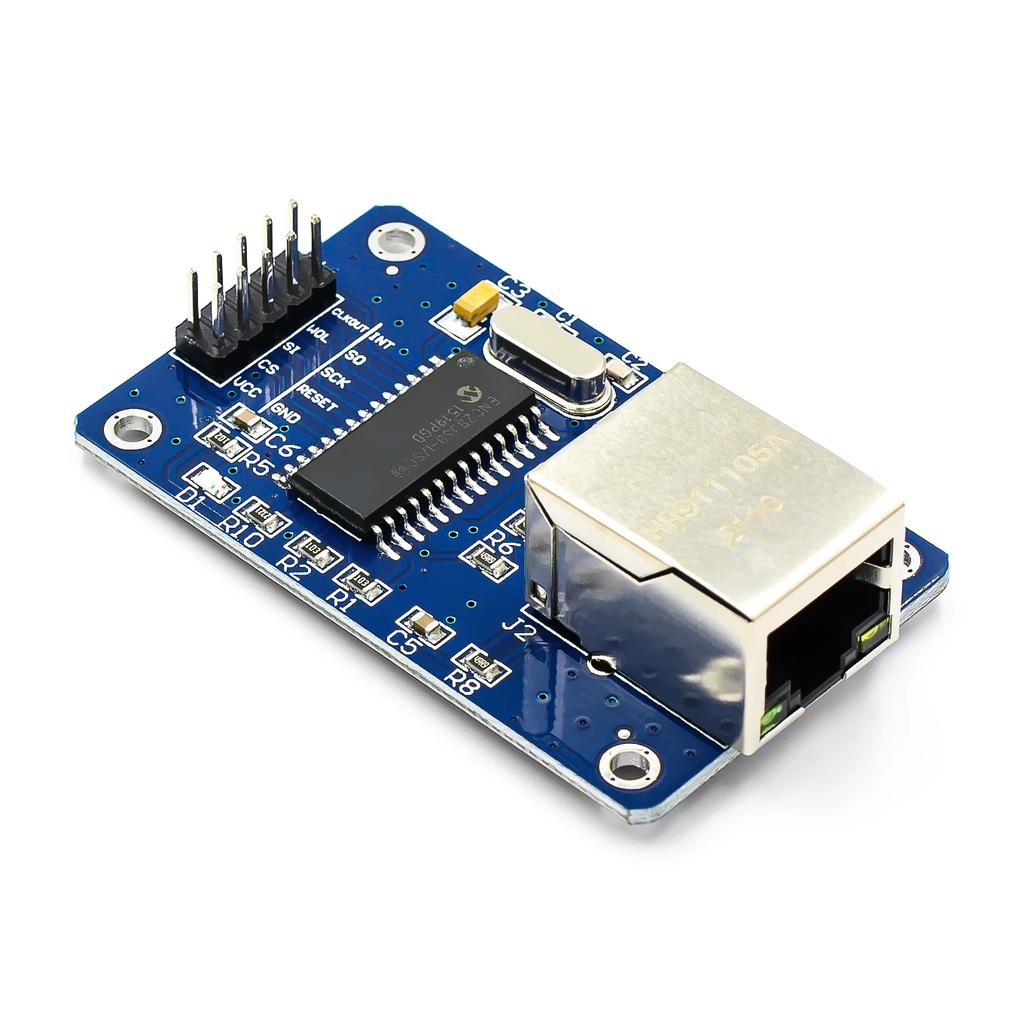

ENC28J60 LAN Product Description:
Brand new and high quality.
chip board ENC28J60-I/SO.
the board 25MHZ crystal.
the network interface board HR911105A.
3.3 V power supply pin.
Size:5.9cm x 3.5cm - 2.32inch x 1.38inch.
Debug reminder:
1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section;
2, cross the network cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 cross, and then do not understand that there are pictures Baidu);
3, the module and the MCU connection should pay attention to the connection of each line is reliable (the surface is not even connected to the good);
4, and the MCU port IO to confirm that is right;
5, the program recompile, download, confirm whether to download! STM32 and 51 IO
Wiring instructions:
############STM32 connection ##########
STM32f103VBT6 ENC28J60 module or other stm32
PC10----------- RESET
PC12--------- CS //PC12 pull-up output mode
//SPI1-
PA5----------- SCK / / output mode
PA6----------- SO / / input mode
PA7----------- SI / / output mode
######51 microcontroller ########### //---------------------------------
Change IP address and MAC address in uipopt.h
192.168.1.100
//--------------------------------- port configuration in spi.h.
STC12C5A60S2 DIP OSC:18.432Msbit CSN = P1^0; / / 28J60-- CS (SS)
Sbit SIN = P1^1; / / MOSI
Sbit SON = P1^2; / / MISO
Sbit SCKN = P1^3; / / SCK
Sbit RSTN = P1^4; / / RST
Sbit INTN = P3^3; / / INT

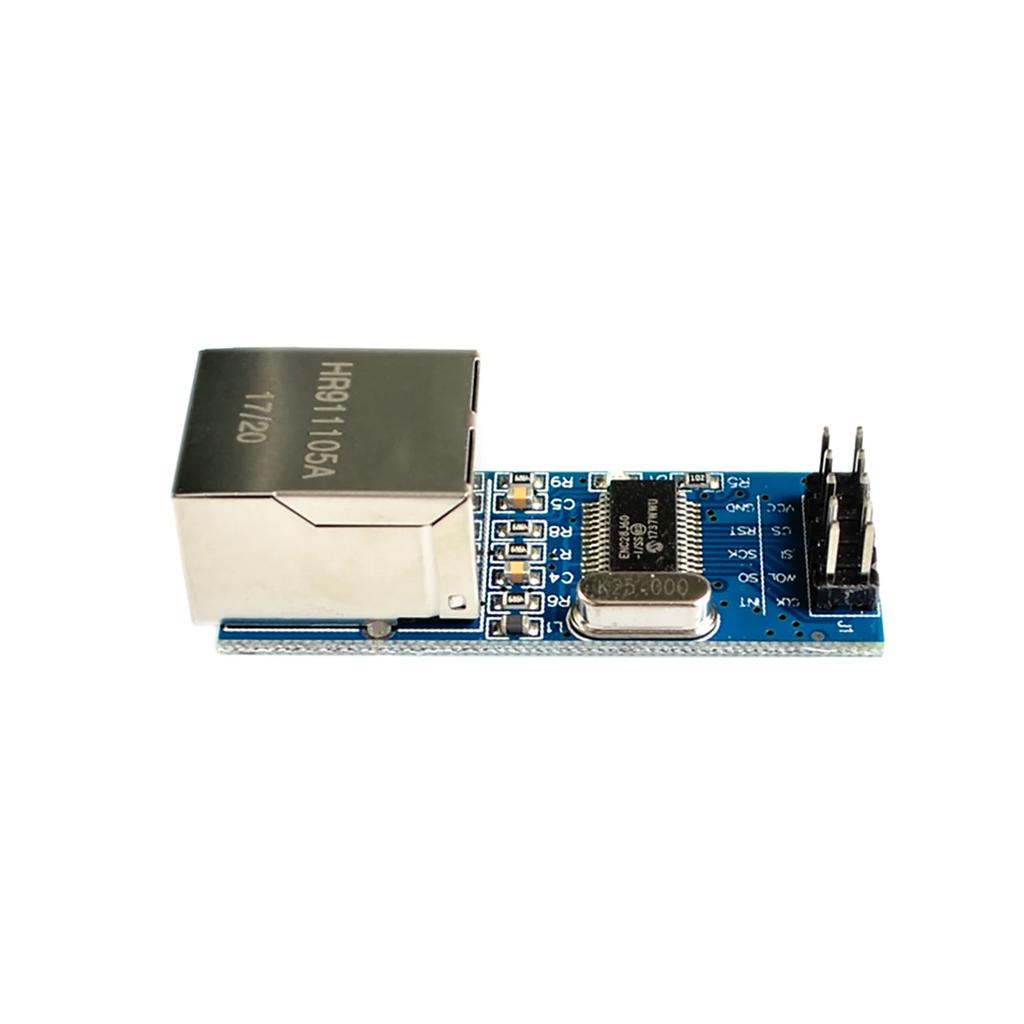

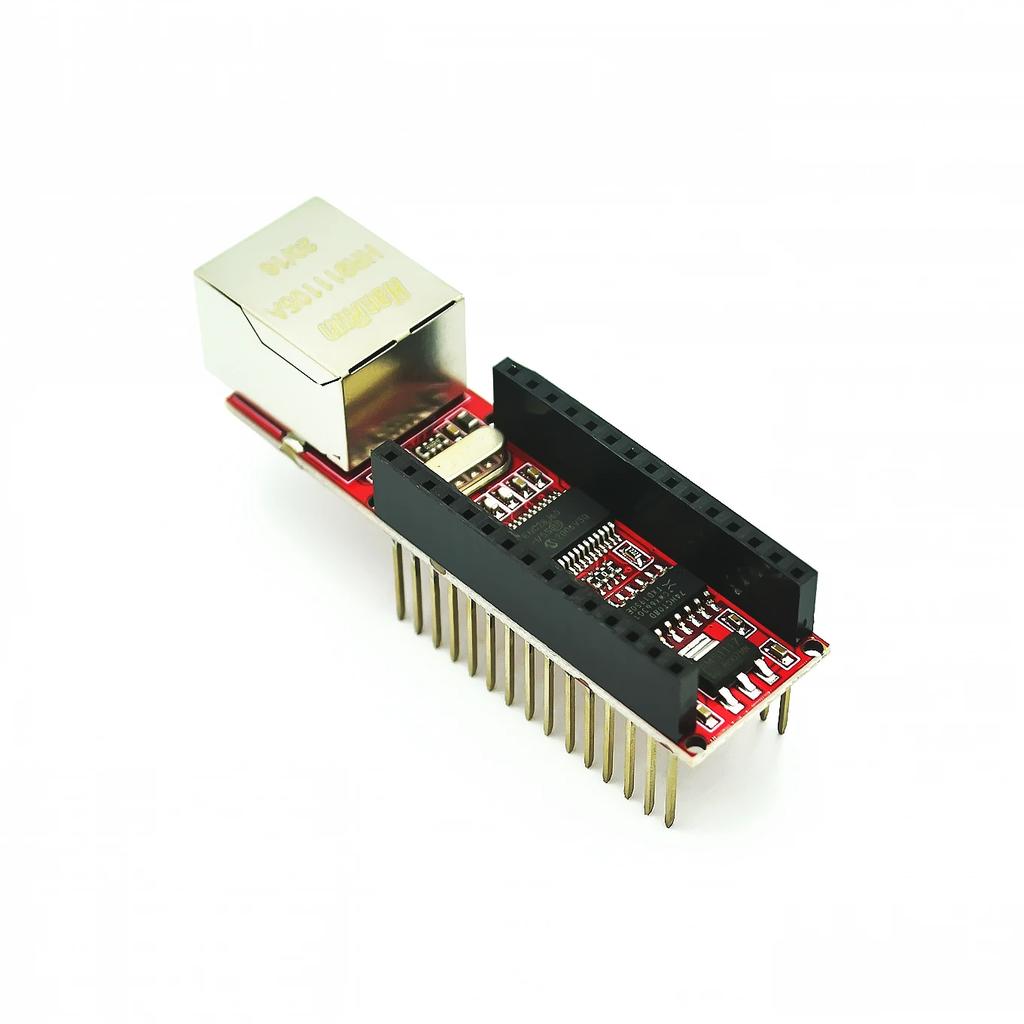

ENC28J60 Mini Product Description:
1. Chip board ENC28J60/SS.
2. The board 25MHZ crystal.
3. The network interface board HR911105A.
4. 3.3V power supply pin.
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
