Feature:
1. Can be used as a highvoltage source for students" popular science experiments, electronic instruments, negative ion generators, and scientific production
2. The module is made using the principle of Tesla coil, output high voltage pulse, and the discharge is violent.
3. Small size, easy to carry and store, convenient to use and with good performance
4. Using highquality materials, strong and durable, has a long service life
5. Great workmanship, perfect replacement for the old one
Specification:
Item Type: Boost StepUp Power ModuleModel: HX8012

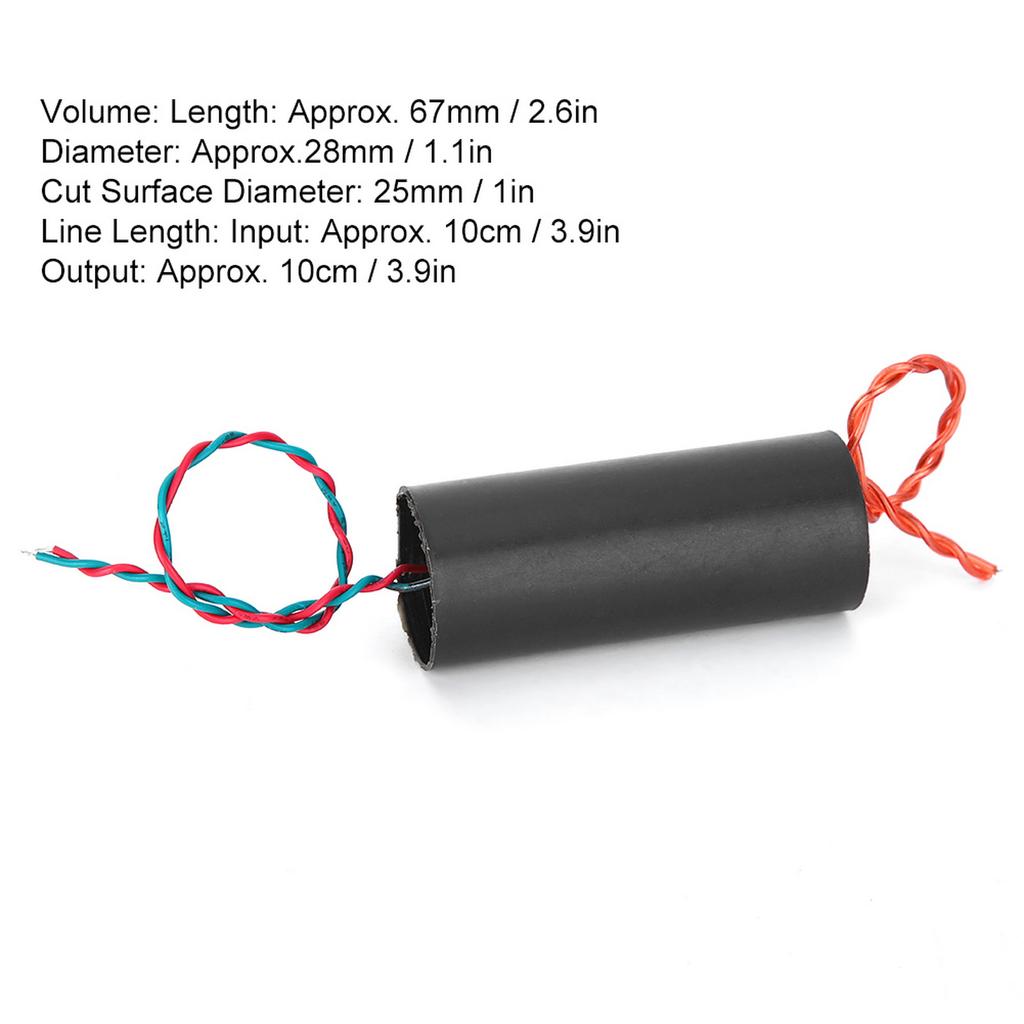

Volume: Length: Approx. 67mm 2.6in
Diameter: Approx.28mm 1.1in
Cut Surface Diameter: 25mm 1in
Voltage: Input: DC612V,
Output: DC800KV
Current: Input 4A, output 0.5A
Line Length: Enter approx. 10cm 3.9in
Output: Approx. 10cm 3.9in
Structure: Integrated housing
2Electrode Discharge Distance: Approx.0.5 ~ 1.5cm 0.2 ~ 0.6in (more than easy to damage)
How to Use: The 2 poles of the highvoltage output end (monochrome thick wire) are fixed within the specified discharge distance, and the lowvoltage input end (twocolor thin wire) red wire positive electrode and green wire negative electrode are connected to the battery to produce high voltage arc work.
Input Requirements: This product does not require an auxiliary circuit, and can be used directly after connecting the battery. The input terminal is connected to a single 3.7V lithium battery (such as 18650 battery) or nickelcadmiumnickelhydrogen battery pack, 4V or 6V acid battery, etc. (6V battery can be For best results).
Package List:
1 x Boost StepUp Power Module
Note:
Precautions for using the module:1. The highvoltage module should avoid being energized when the highvoltage is unloaded. Before energizing, the appropriate distance of the highvoltage line must be adjusted. The arcing distance of the highvoltage line is proportional to the battery voltage and capacity used.When testing the arc distance, the experiment should be from short to long. When energized, it is strictly forbidden to exceed the maximum arc distance. Because the highvoltage energy cannot be released, the module is easily damaged.3. The power of the module is large, and the internal is not suitable for heat dissipation, so it is not allowed to work for a long time.4. The method to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is drawn. If it is around 6V, it can output the maximum power.5. The two sections of small capacity lithium batteries are connected in series at 7.2V. The measurement voltage has dropped to about 4V in the arc drawing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use lithium batteries above 2000MA, and it is best to match batteries above 4000MA if possible.Can be used as a highvoltage source for students" popular science experiments, electronic instruments, negative ion generators, and scientific production
The module is made using the principle of Tesla coil, output high voltage pulse, and the discharge is violent.
Small size, easy to carry and store, convenient to use and with good performance
Using highquality materials, strong and durable, has a long service life
Great workmanship, perfect replacement for the old one
