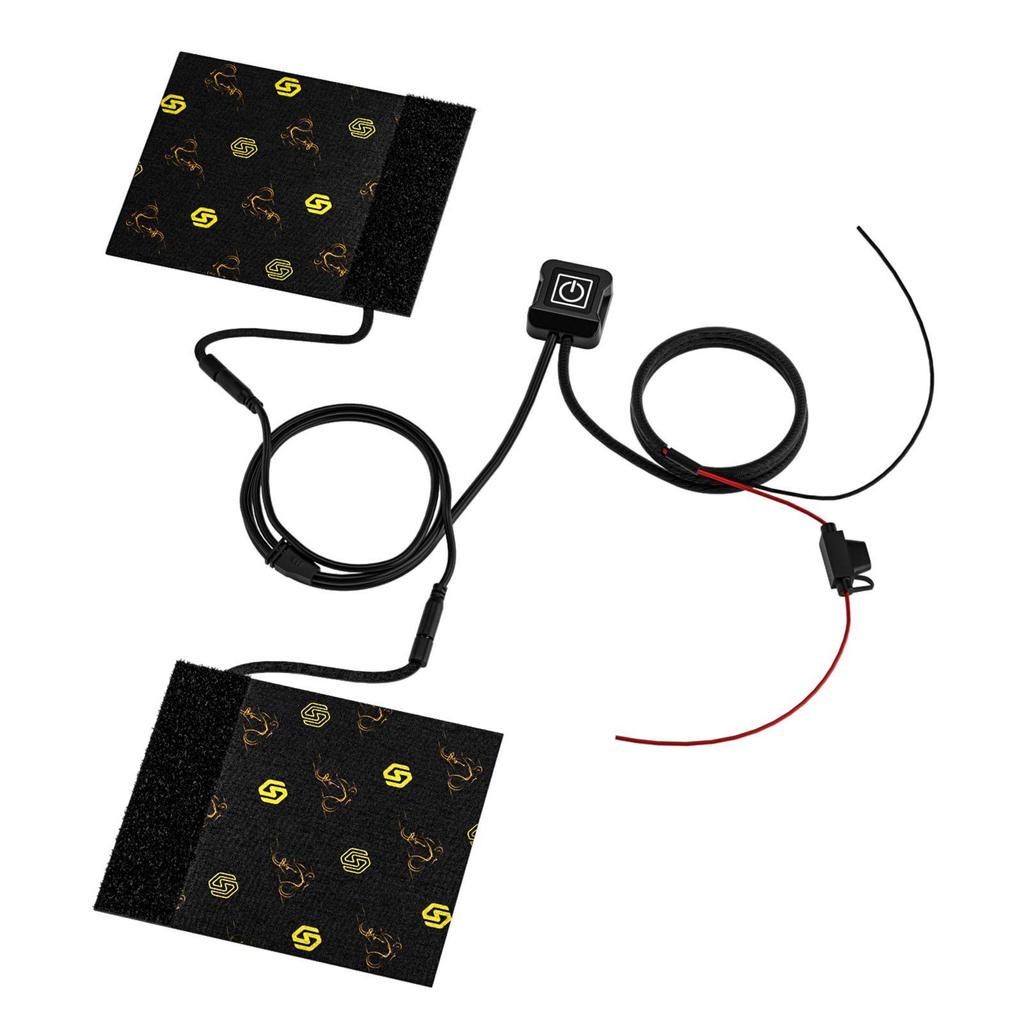

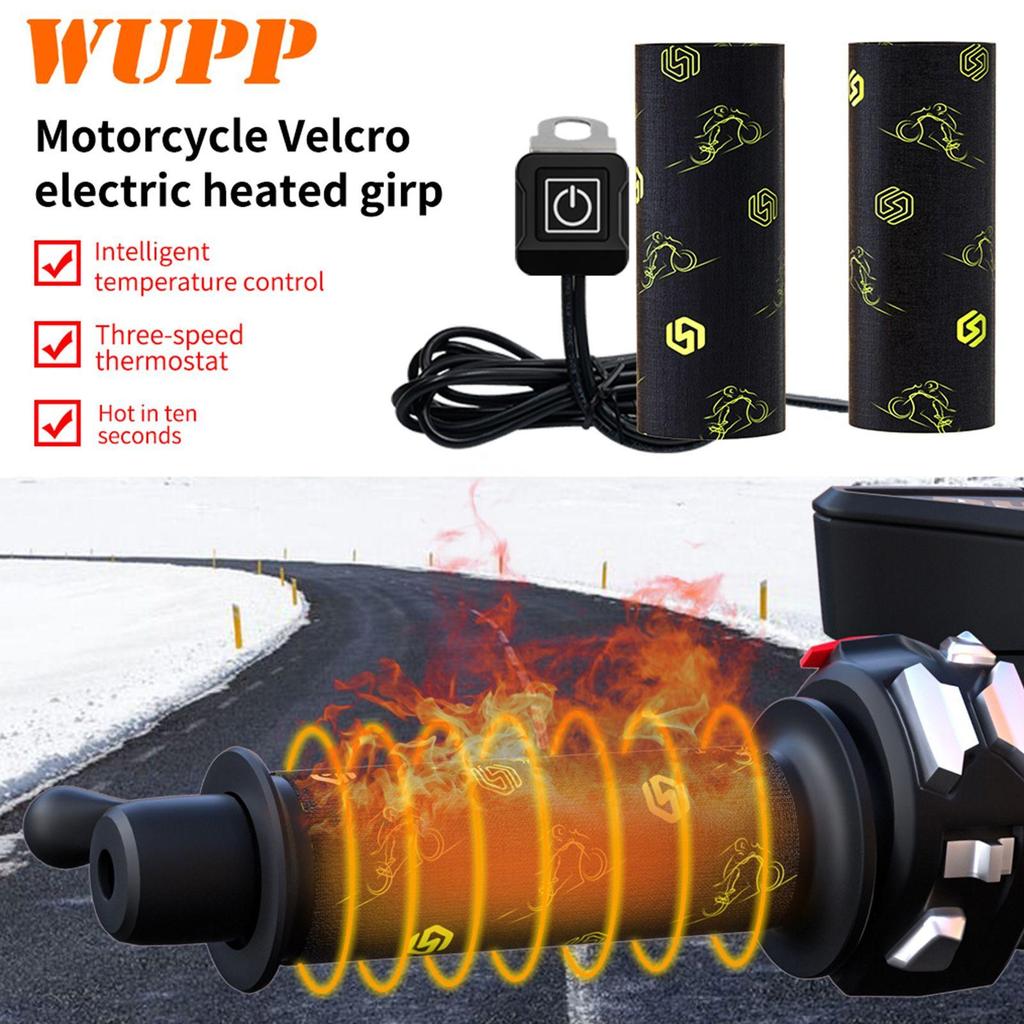

Heated Hand Grips Pad Multi-Temperature 12V Handlebar Heater For Motorcycle

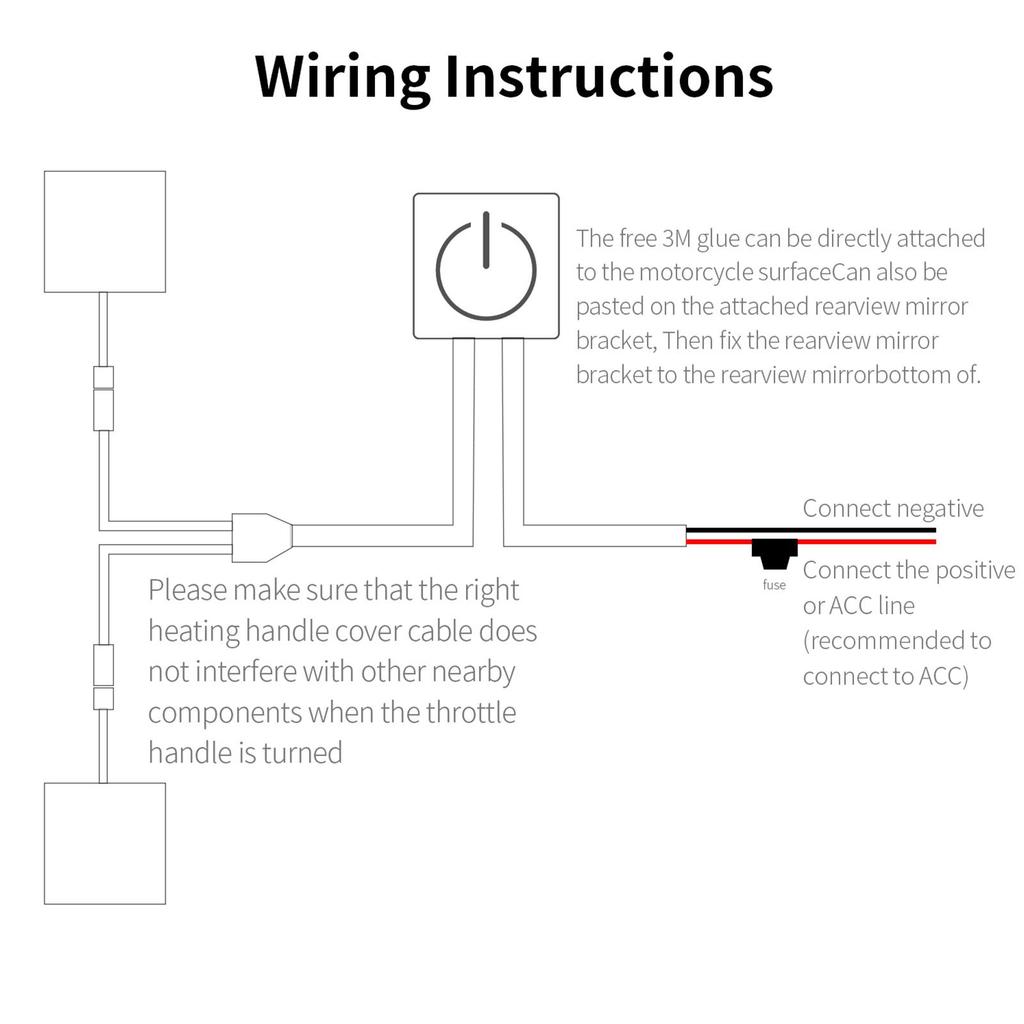

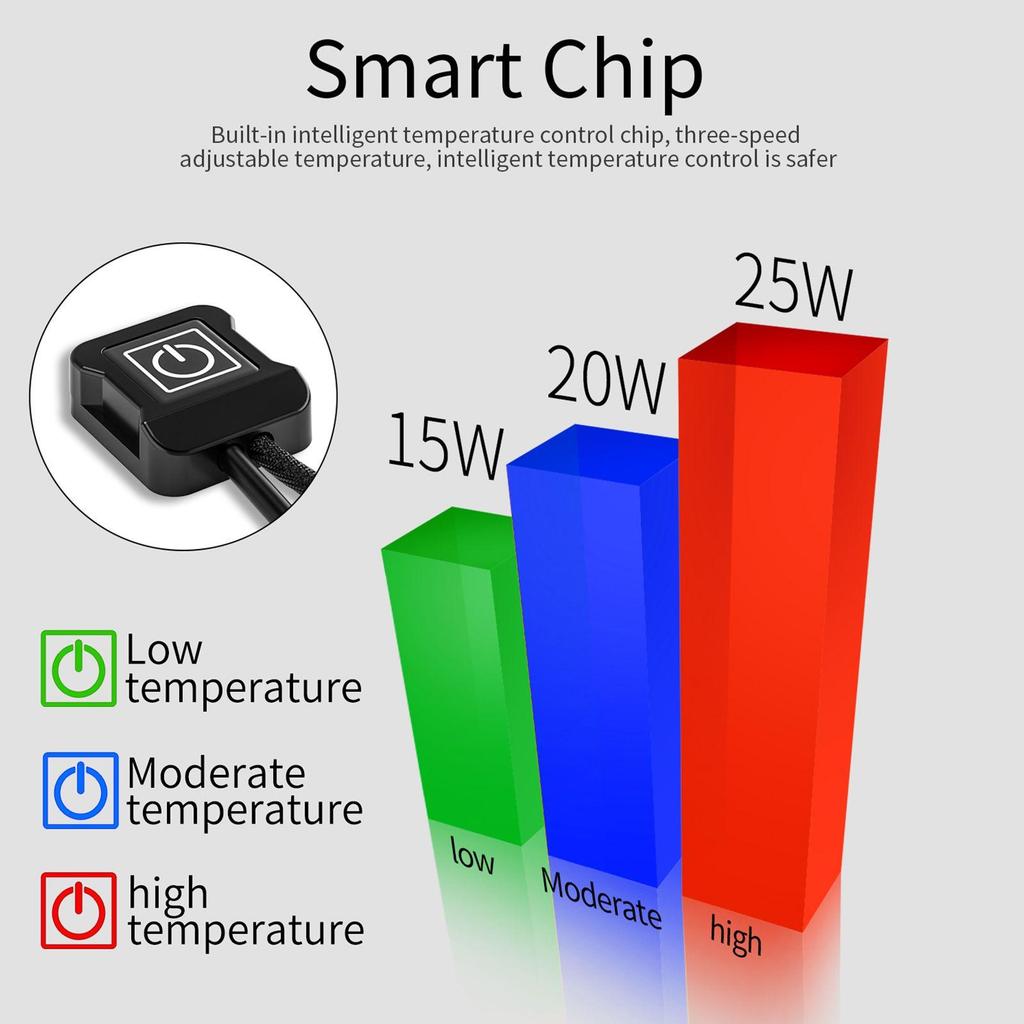

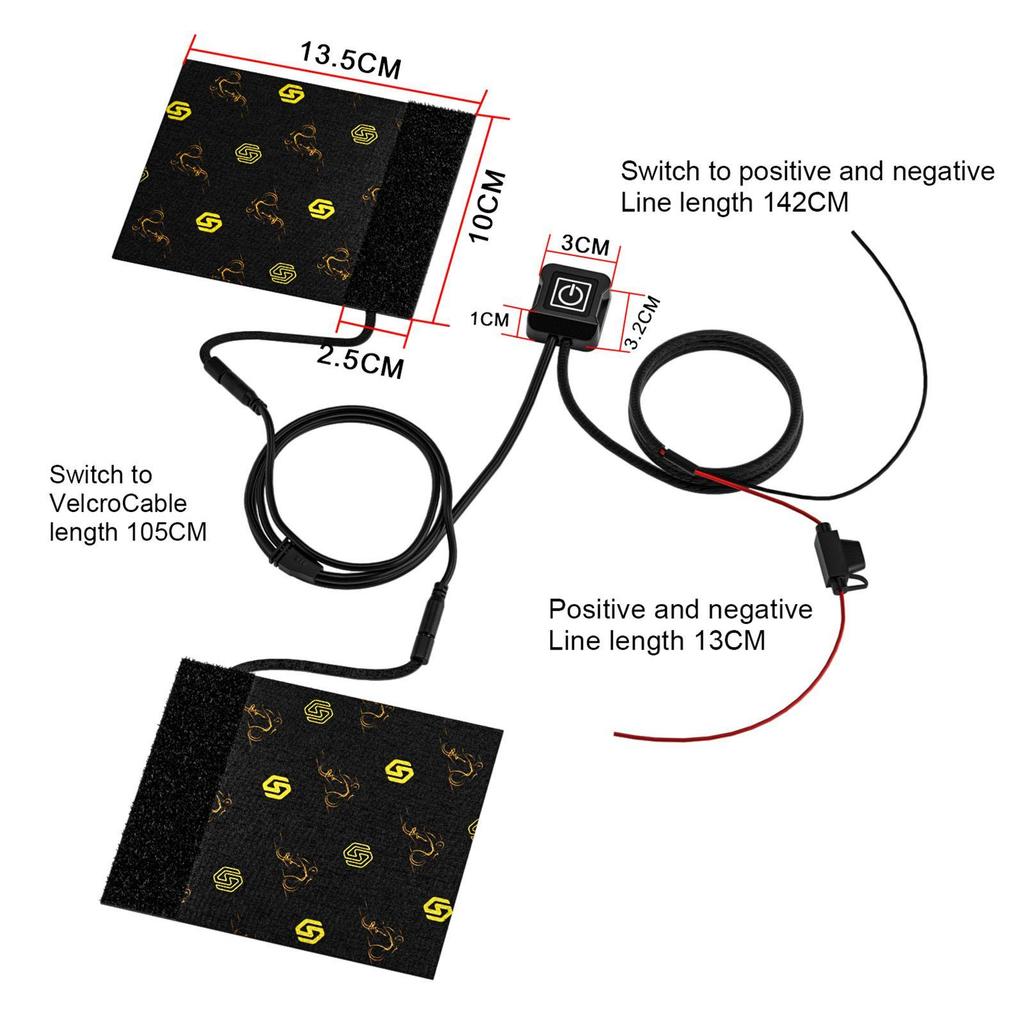

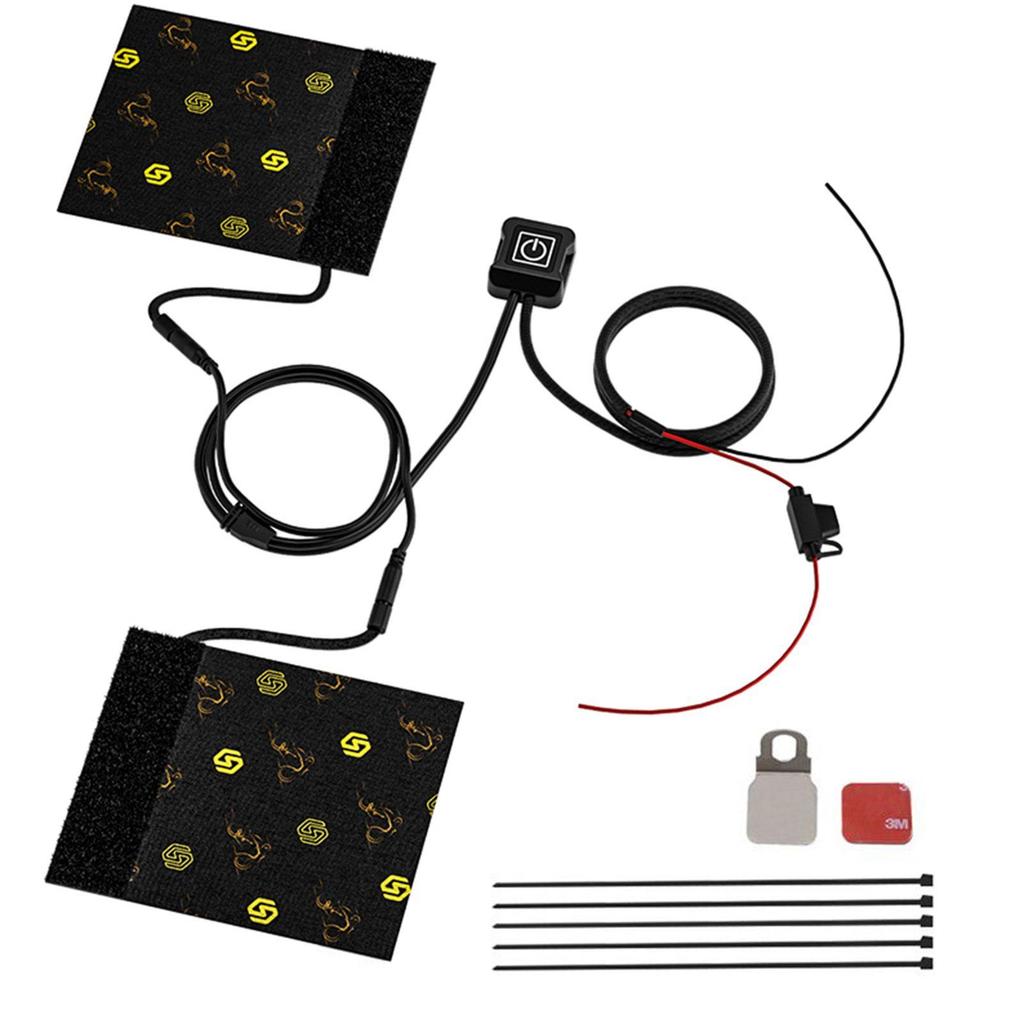

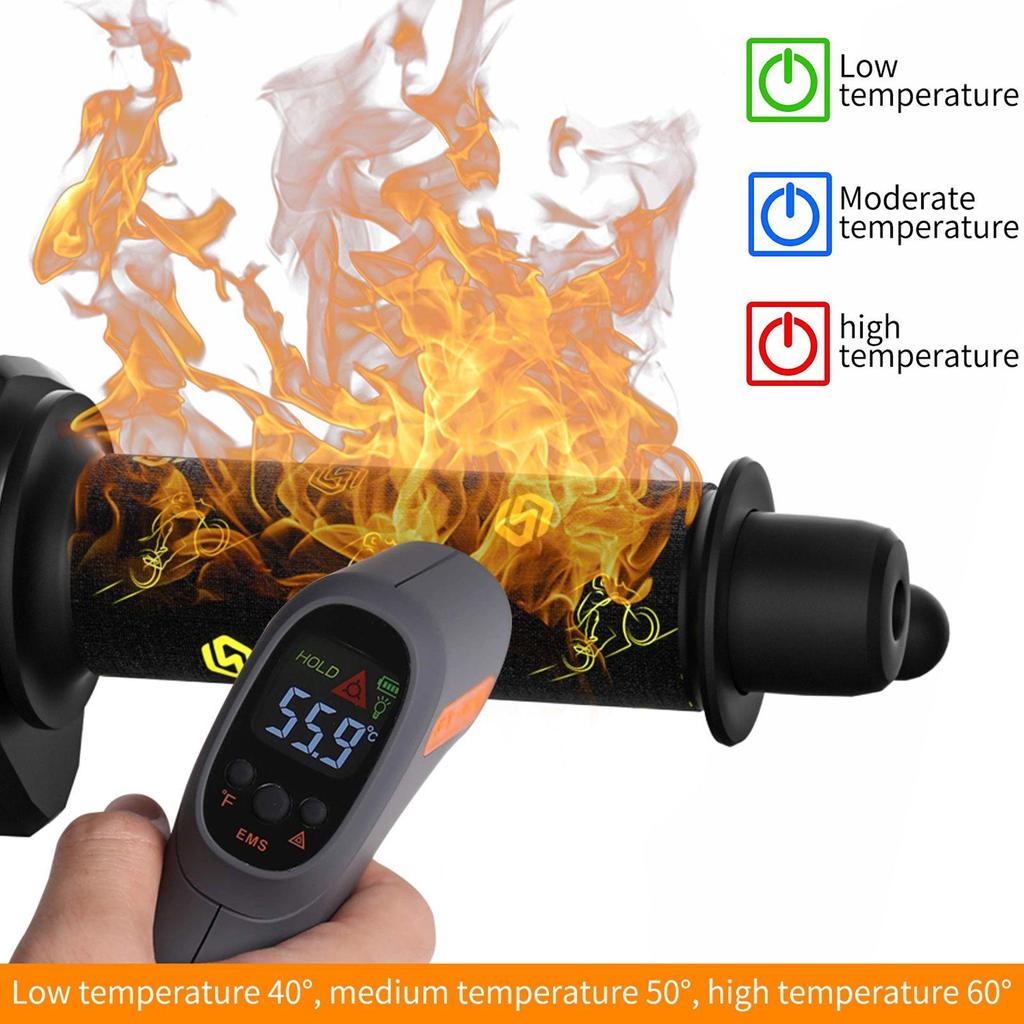

Features: Material: composite fiber heating wire +(L bracket) stainless steel Net weight: 133G Input voltage: DC12V Cable length: 105CM (heating film to switch) 142CM (switch to electric door lock) Working temperature: -30°C---+100°C Power: high-end 25W mid-range 20W low-end 15W Product accessories: 3M glue*1, cable tie*5, stainless steel L bracket*1 Installation method: 3M glue sticking and fixing, L bracket lens holder fixing Wiring method: connect the red wire of the product to the positive pole of the power supply, and connect the black wire of the product to the negative pole of the power supply (the lamp does not light up when it is connected reversely, only heat) Operating instructions: power on: red light, blue light and green light each flash once and then go out Standby: the red light flashes in the state of breathing, the temperature reaches the relative temperature and it will automatically turn into a blue light Working status: indicator light is always on (high-end: red light is always on, mid-range: blue light is always on, low-end, green light is always on) Click on the key: switch gears Note: The positive and negative poles are connected reversely, the switch cannot be used, and the heating element directly heats up

【Pay attention】: Please select the appropriate gear according to the ambient temperature. Under low temperature conditions, if the temperature of the electric heating grip cover cannot be sensed in time due to the numbness of the hand, please use the low or medium gear first to prevent high temperature burns This product is only suitable for motorcycles with 12V battery. Please read the installation diagram carefully before installation. Incorrect wiring will cause damage to the components This product can only be installed on the handlebars of motorcycles when it is energized. You can use a battery to test whether the product is properly energized before installation. It is strictly forbidden to energize and work when not riding (empty burn) to prevent overheating of the electric handle cover and damage to the original handlebar It is recommended to connect the electric door lock wire to the wiring. Most models have black positive pole and green negative pole. For specific conditions, it is recommended to use a multimeter to measure
