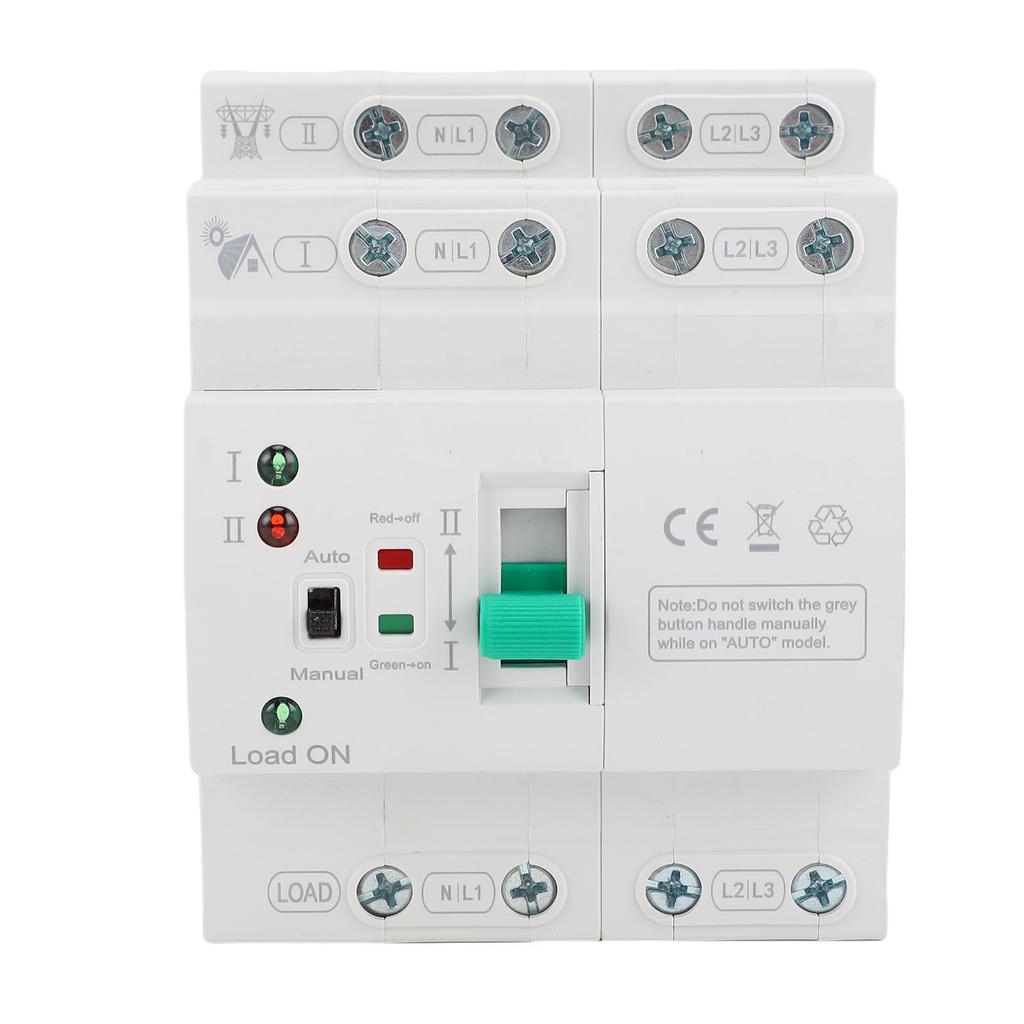

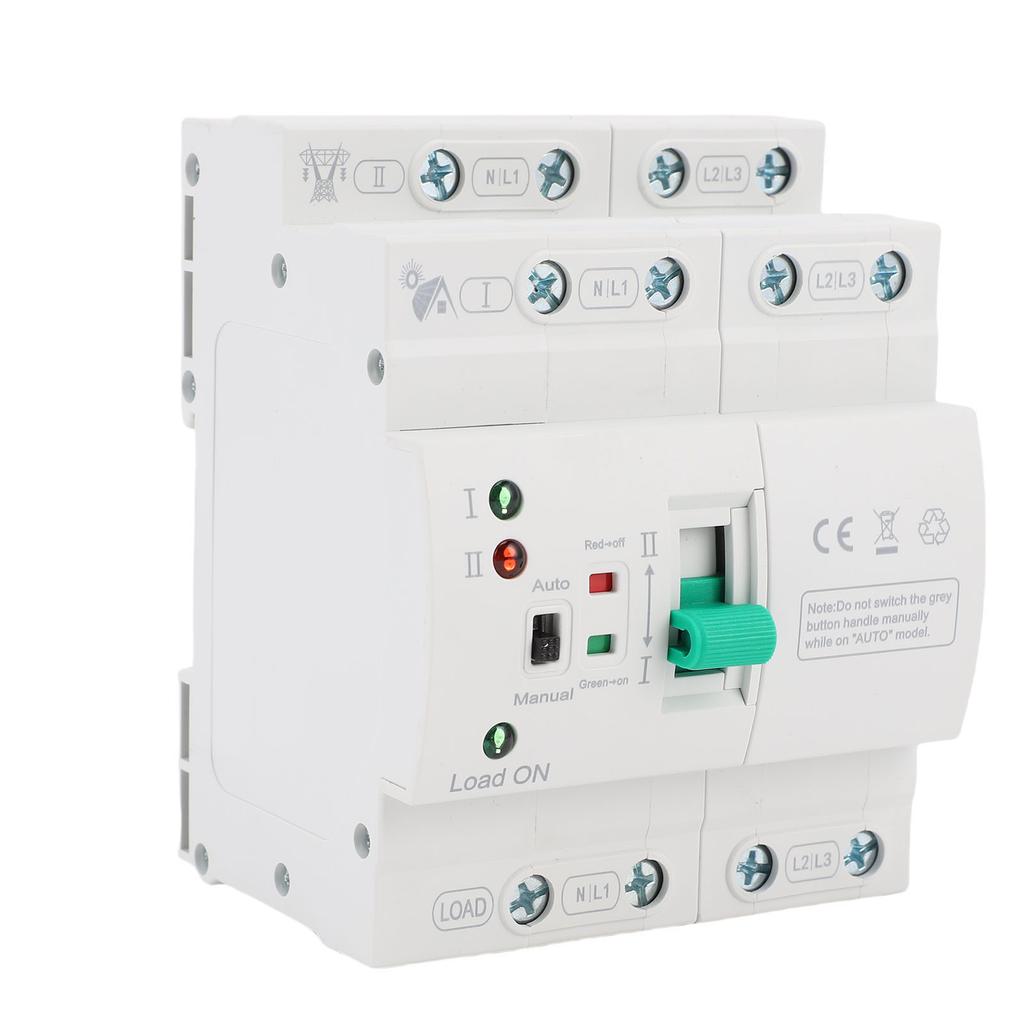

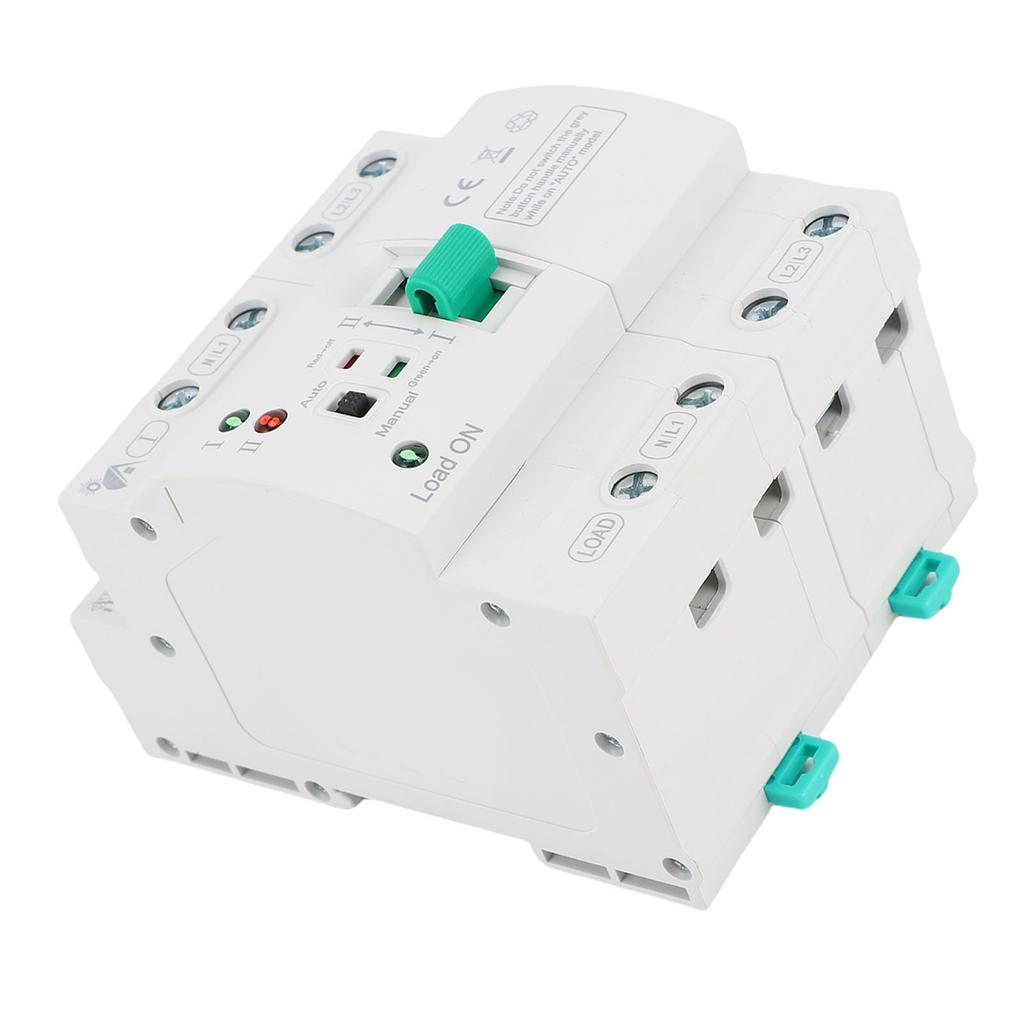

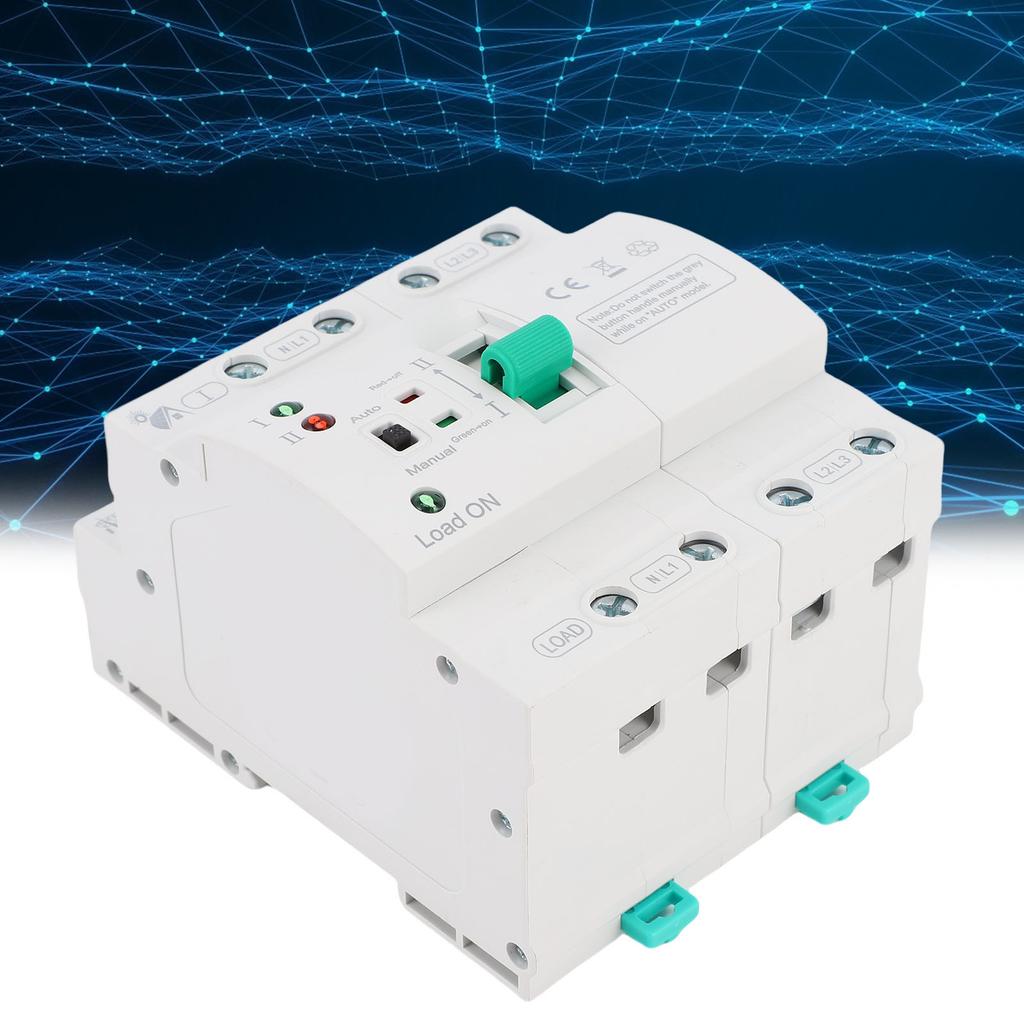

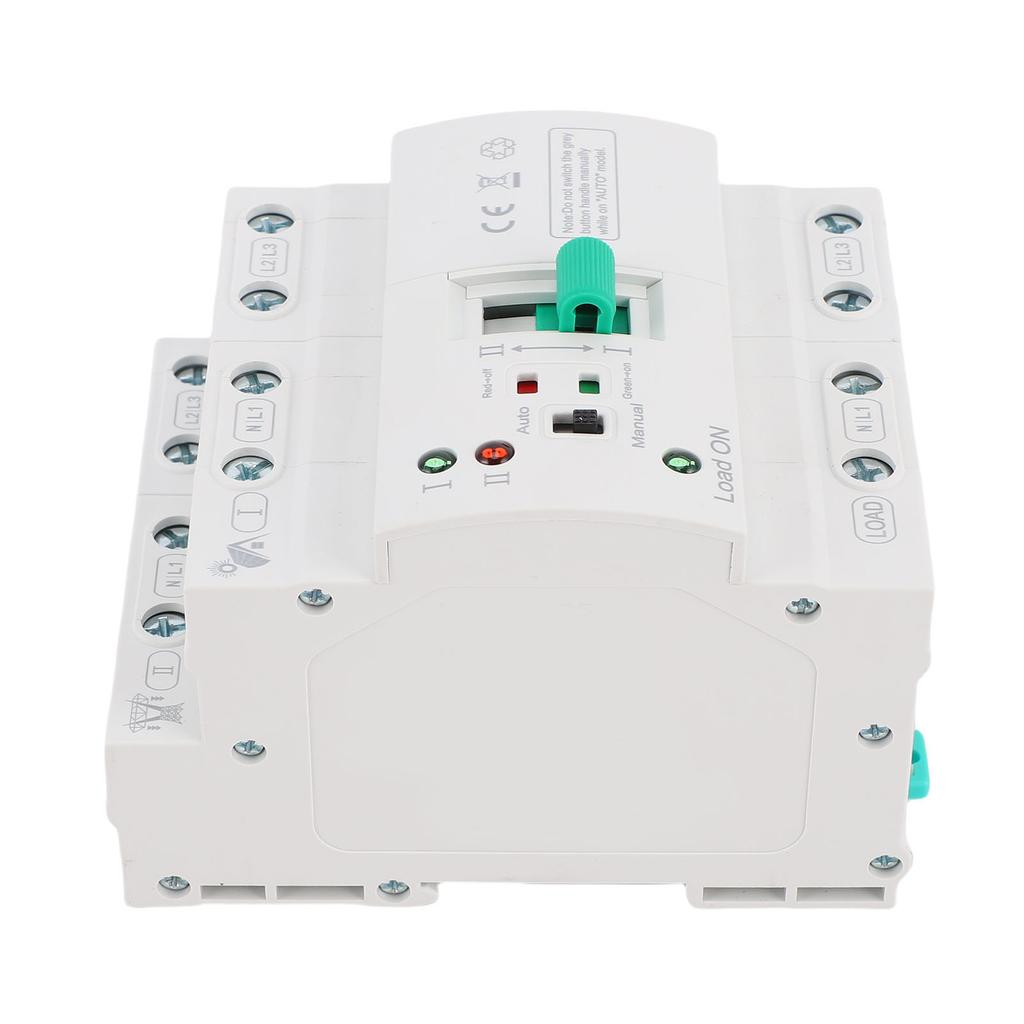

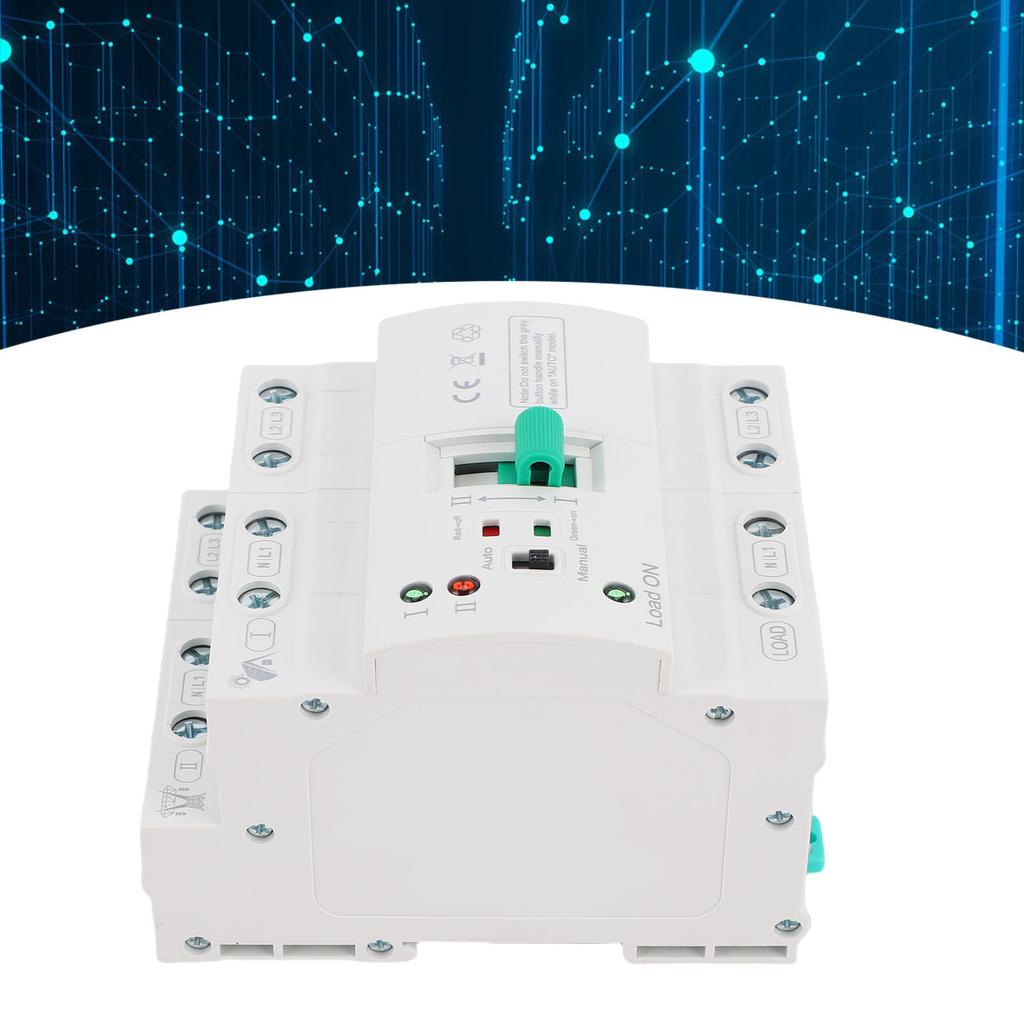

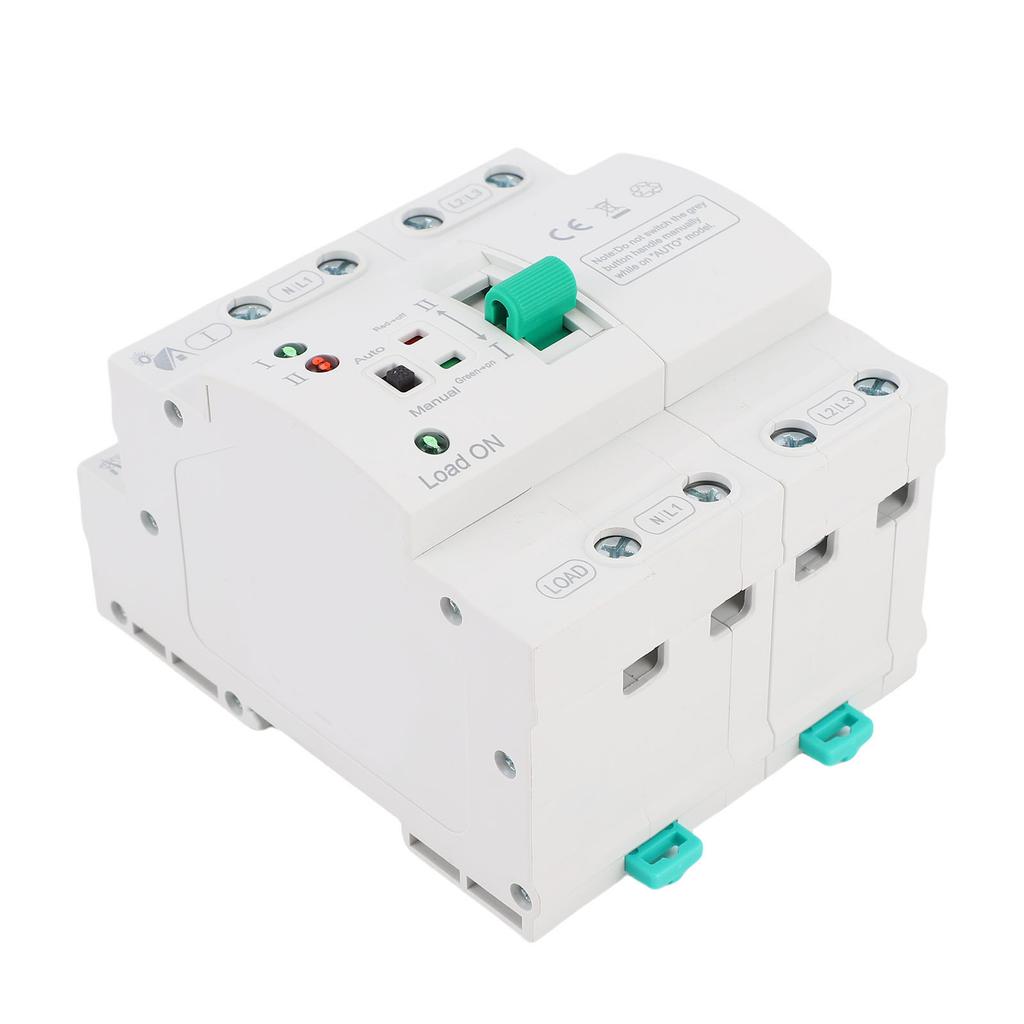

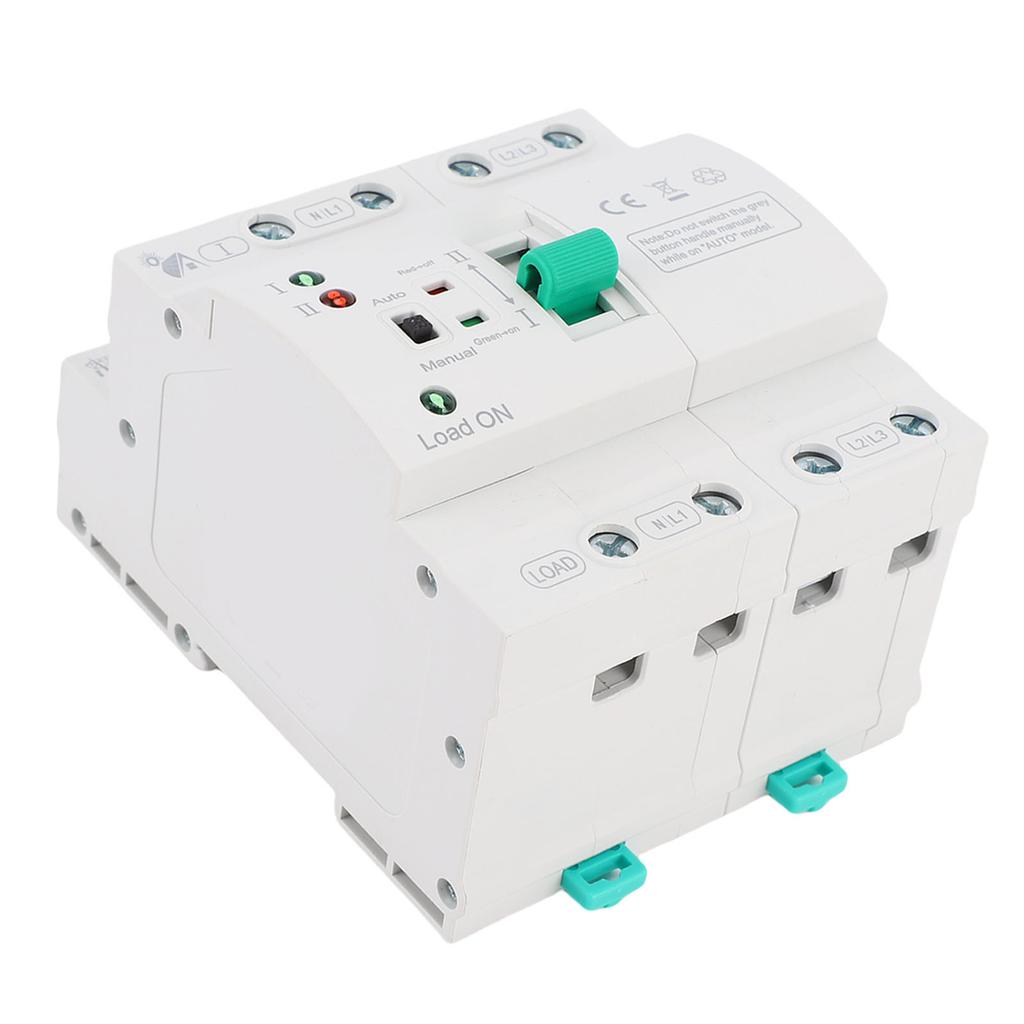

ATS Automatic Manual Transfer 4P 80A Home Generator Dual Auto Selector DIN Rail Mount for PZ30 Distribution Box Super Thin PV Type

FUNCTIONS AND USES: The ATS transfer is a PC infrequent ing , mainly used for automatic or manual ing between two power supplies, and can detect whether the common power supply or backup power supply is normal. Can power sources(either mains power or inverter power) within 20ms to build an uninterruptible power supply, ensuring the continuity, reliability and of power supply AUTOMATIC MODE: When using the automatic mode, the left of the ATS is set to the Auto position, and the right handle is set to the I position. When the common power supply I is normal, the IU(green light) remains constantly on. When the common power supply I is abnormal, the IU(green light) goes out and es to the automatic power supply II within 20ms, and the IIU(red light) turns on. When the common power supply I returns to normal, it will automatically back to the common power supply from the backup power supply II MANUAL MODE: When using the manual mode, the left of the ATS is placed in the Manual position. If power I is selected, manually operate the handle on the right to set the to the I position, and the IU(green light) will light up. If power II is selected, please manually operate the right handle to set the to the II position. The IU(red light) will light up Item Type: ATS Model: NLQ7-125 Material: PC inflaming retarding and silver Rated Current Le: 80A Frequency: 50Celsius60HZ Grade: PC Specification: 4P Transfer Action Time: 20ms Rated Short Circuit Current: 50kA Lifespan: Electrical: more than 1500 Times; Mechanical: more than 6000 Times Usage Category: AC-31B
