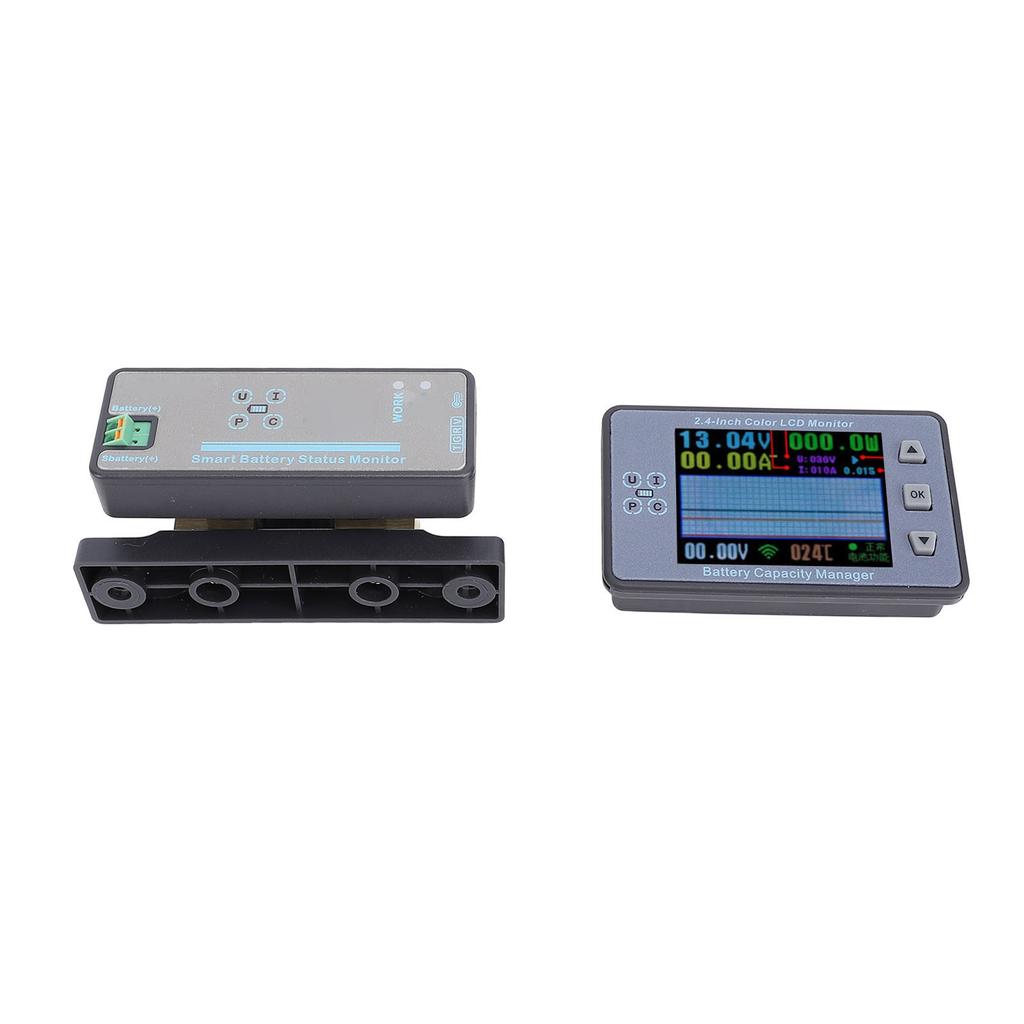

Feature:

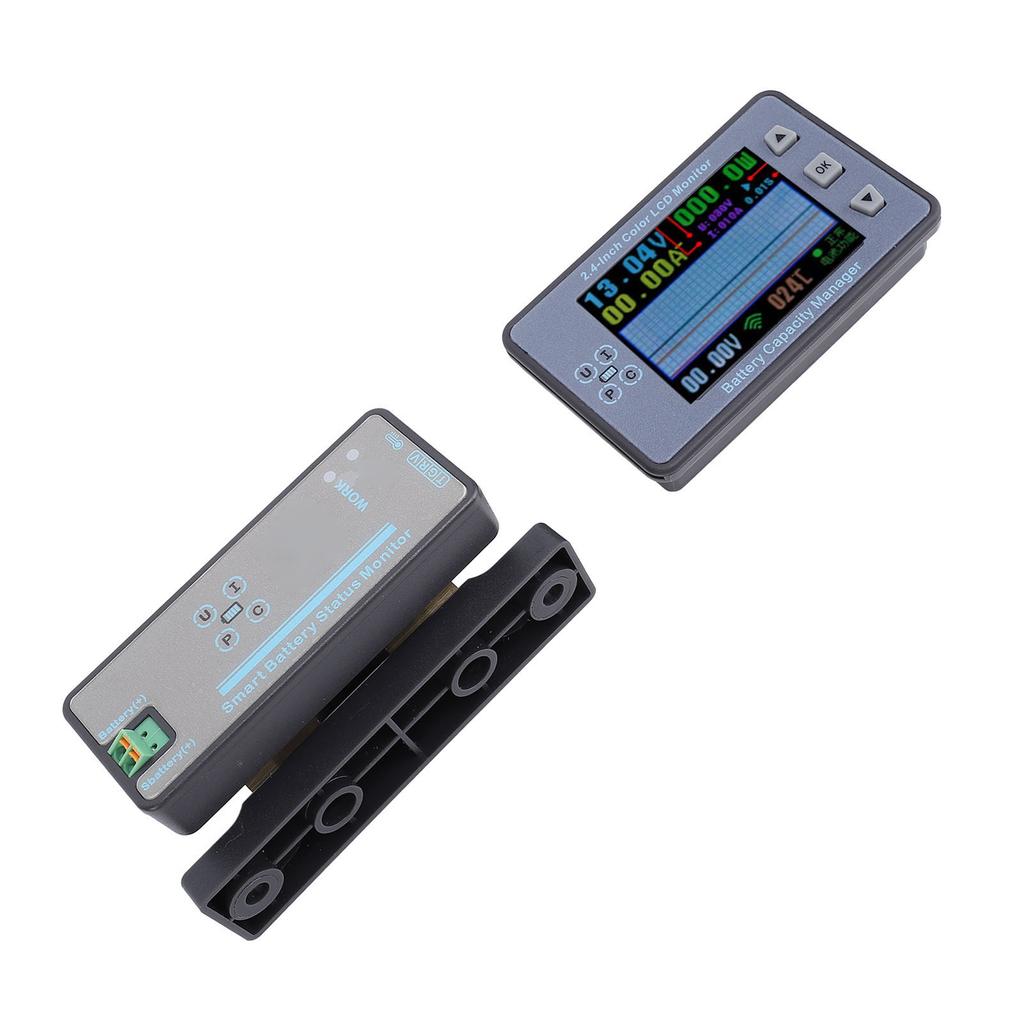

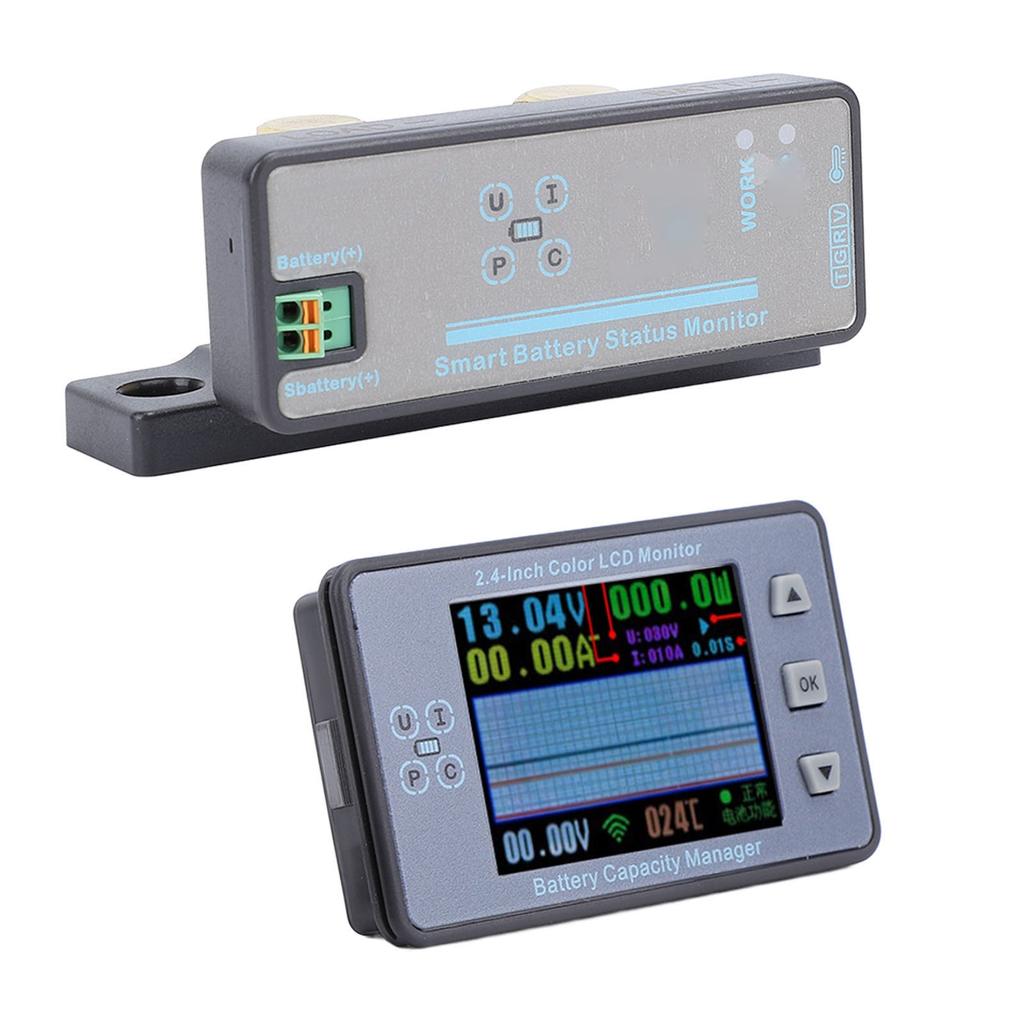

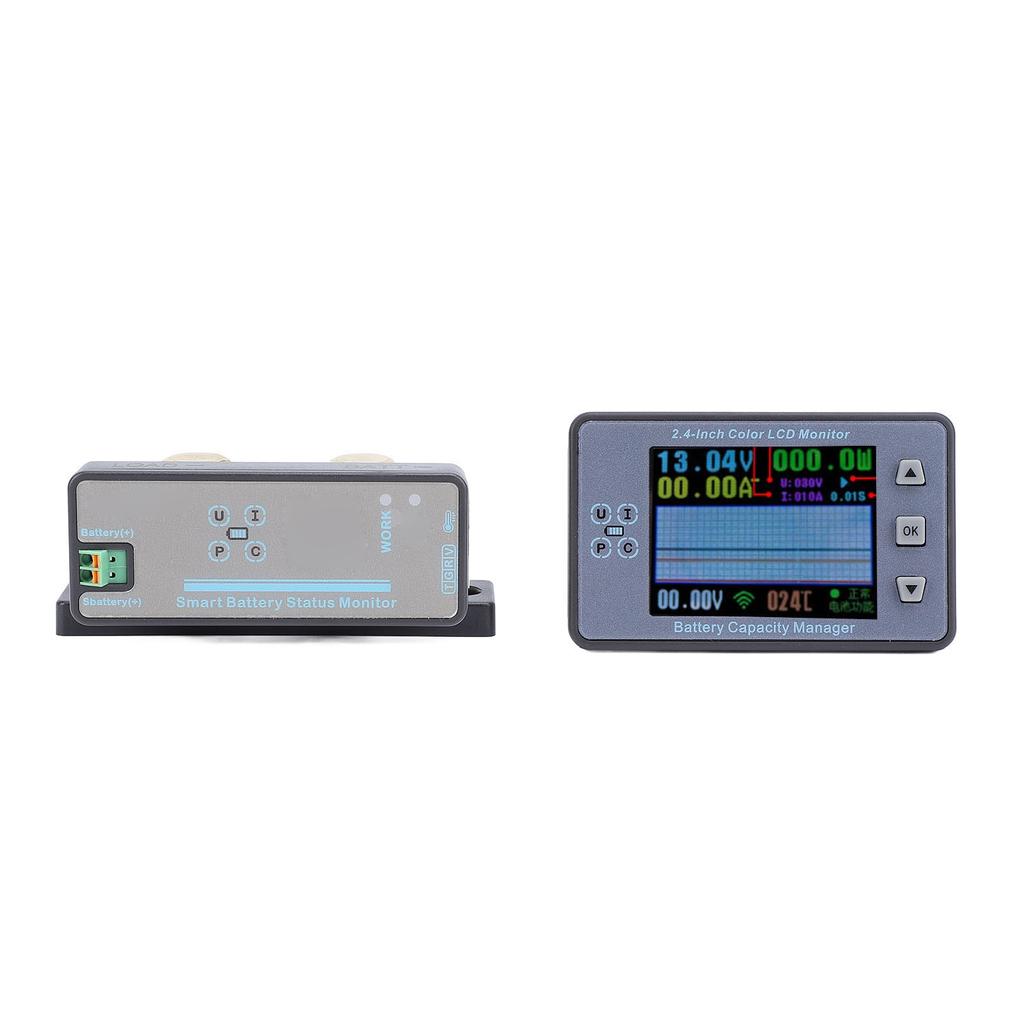

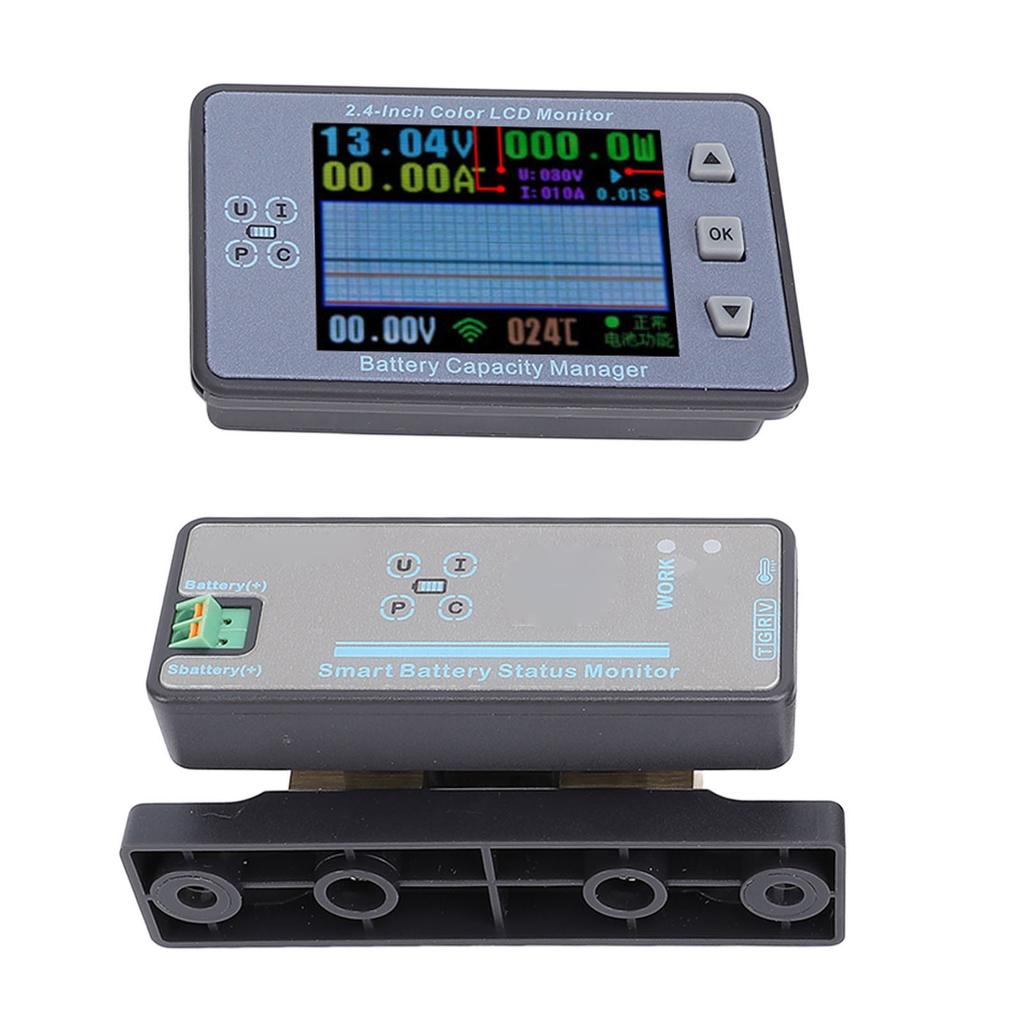

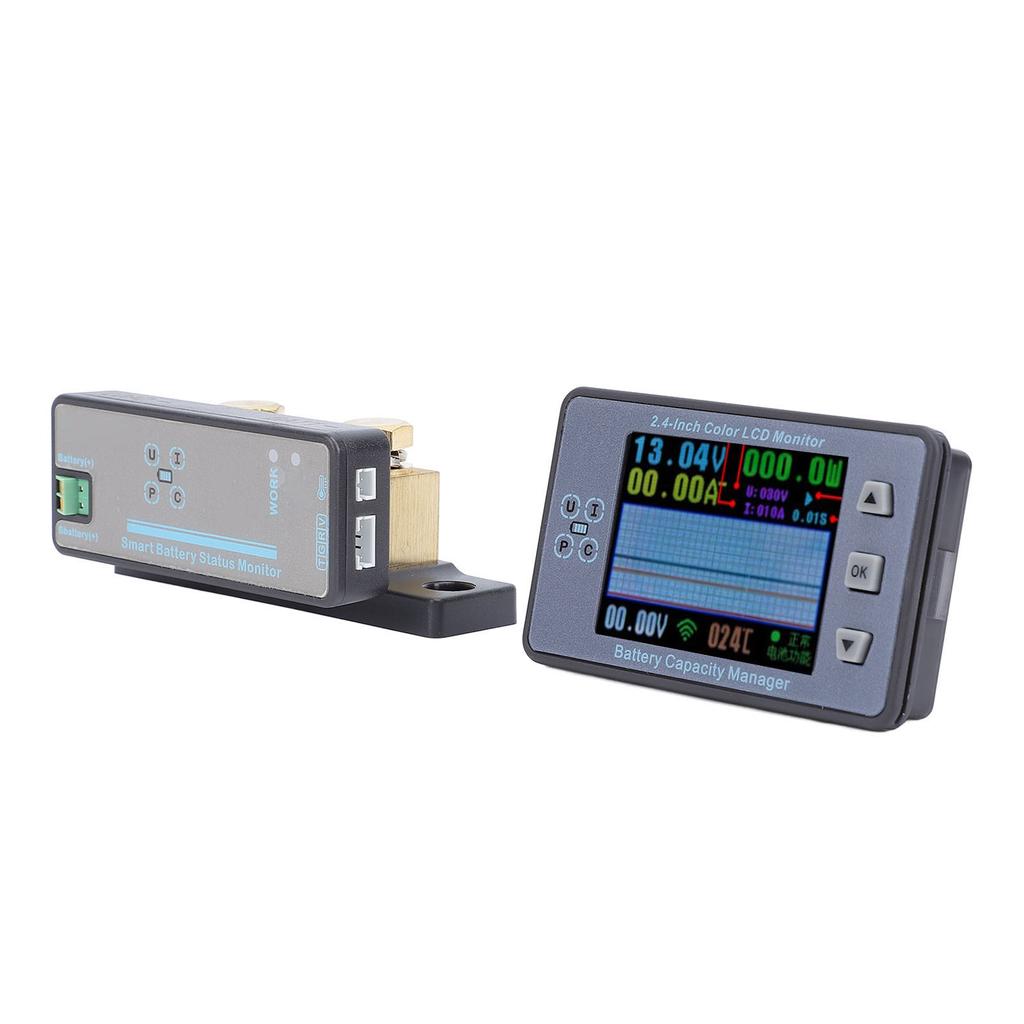

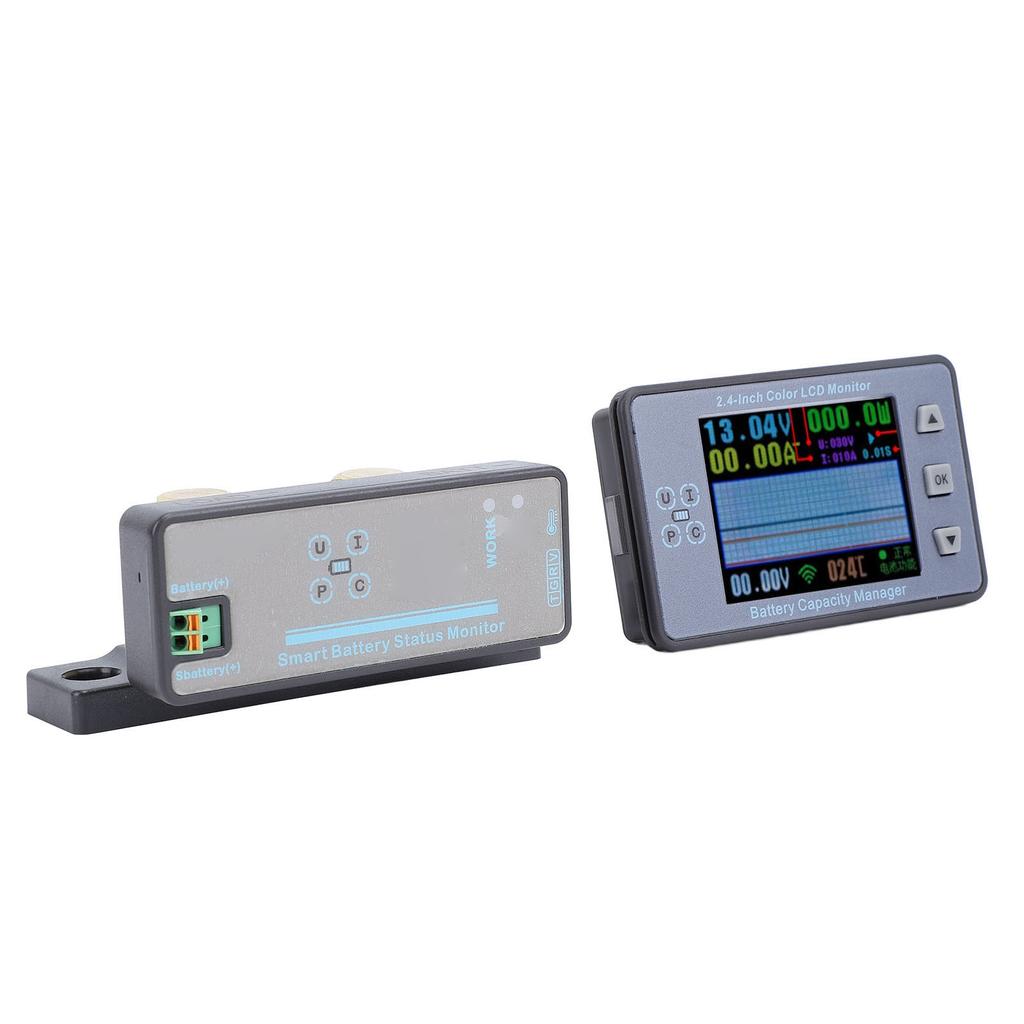

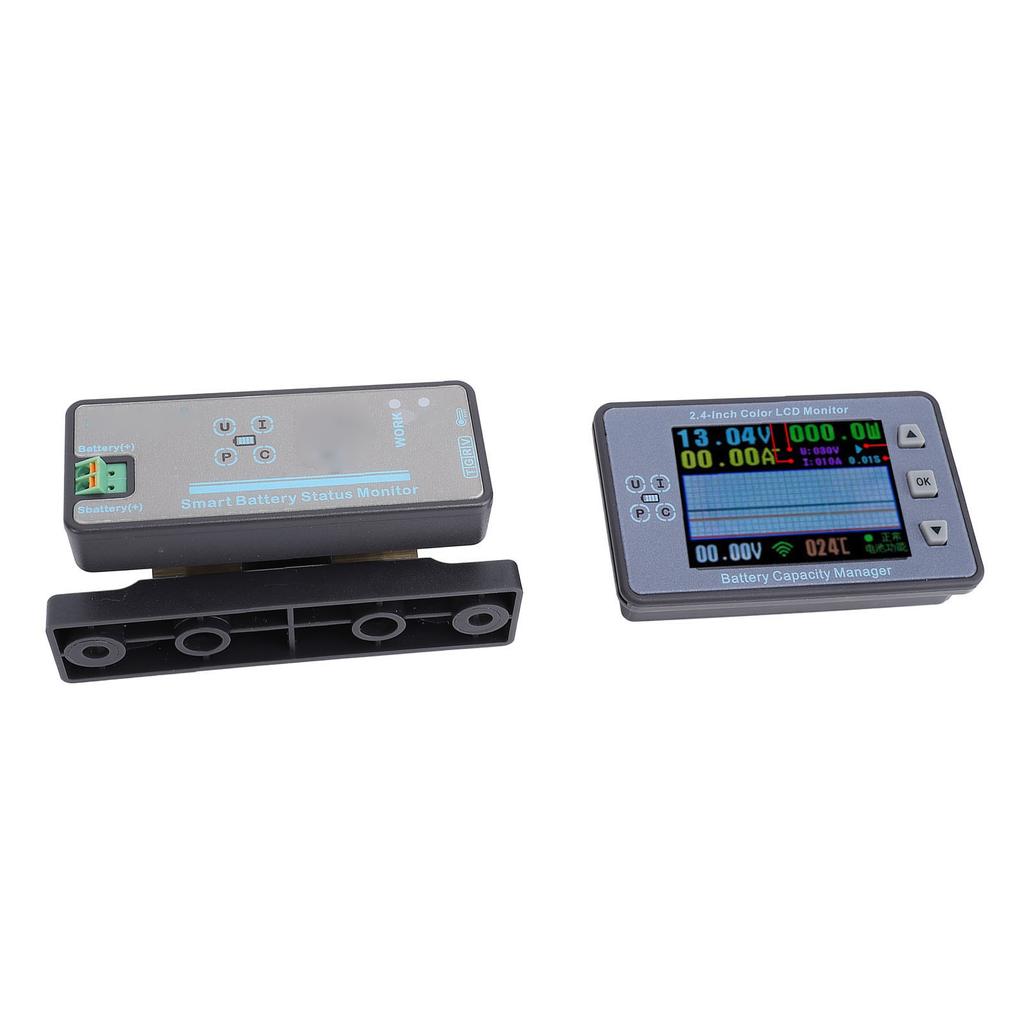

1. 2.4 Inch LCD Display: This battery voltmeter ammeter features a 2.4 inch LCD display that automatically lights up and goes out for easy viewing while reducing power consumption. It also supports mobile app display for easy data viewing and setting adjustment to improve operating ability.
2. Integrative Design: This battery voltage current meter has an integrated design with a standard 50MV pure copper shunt for current detection, which has the advantages of low power consumption, low temperature rise, high accuracy, small size and high stability.
3. Multifunctional: This battery current voltage power energy meter is multifunctional and can simultaneously display voltage, current, power, temperature, capacity, percentage of remaining capacity, and runtime, and provide a complete historical data curve.
4. Secure And Reliable: This battery capacity monitor has alarms for high charging voltage, low discharging voltage, high charging current, high discharging current and overheating, and also has a power failure memory function to record the AH and WH counts and all parameters before the power failure.
5. Wireless Data Transmission: This battery gauge monitor supports wireless data transmission, eliminating interference from complex wiring between the display and the detection module. It can be used for various equipment battery power detection and monitoring, RV power monitoring, electric cycle monitoring, battery detection, power monitoring, photovoltaic system detection, power equipment detection.
Specification:
Item Type: Battery Monitor
Material: ABS, Acrylic, Red Copper
Main Battery Voltage Range: 8V 120V
Starting Battery Voltage Range: 0 120V
Current Measurement Range: 0.05 500A
Capacity: 0.0AH 6500.0AH
Energy: 0.0KWH 6500.0KWH
Time: 0 900 Hours
Power Value: 0.00 999KW
Temperature: 20 celsius 150 celsius
Voltage: + (1percent +2) Characters
Current: + (1percent +5) Characters
Capacity: + (1percent +5) Characters
Temperature: + 2 degrees C
Main Battery Overvoltage Alarm: 0.1 100V
Main Battery Undervoltage Alarm: 0.1 100V
Charging Overcurrent Alarm: 0.1 500A
Discharge Overcurrent Alarm: 0.1 500A
Over Temperature Alarm: 0.1 500A
Starting Battery Overvoltage Alarm: 20 celsius 150 celsius
Starting Battery Undervoltage Alarm: 0.1 100V
Remaining Capacity Percentage Alarm: 0.1 100V
Delayed Alarm Time:0 100percent
Operating Power Consumption: 0 200S
Display Language: Typical <0.1W Chinese, English
Communication Channel: 1 255
Transmission Mode: Bluetooth Transmission
Transmission Distance: Approx. 15m 49.2ft
Command Response Time: Typical Value <200ms
Measurement Rate: 20 times sec
Serial Communication Baud Rate: 9600Bps.

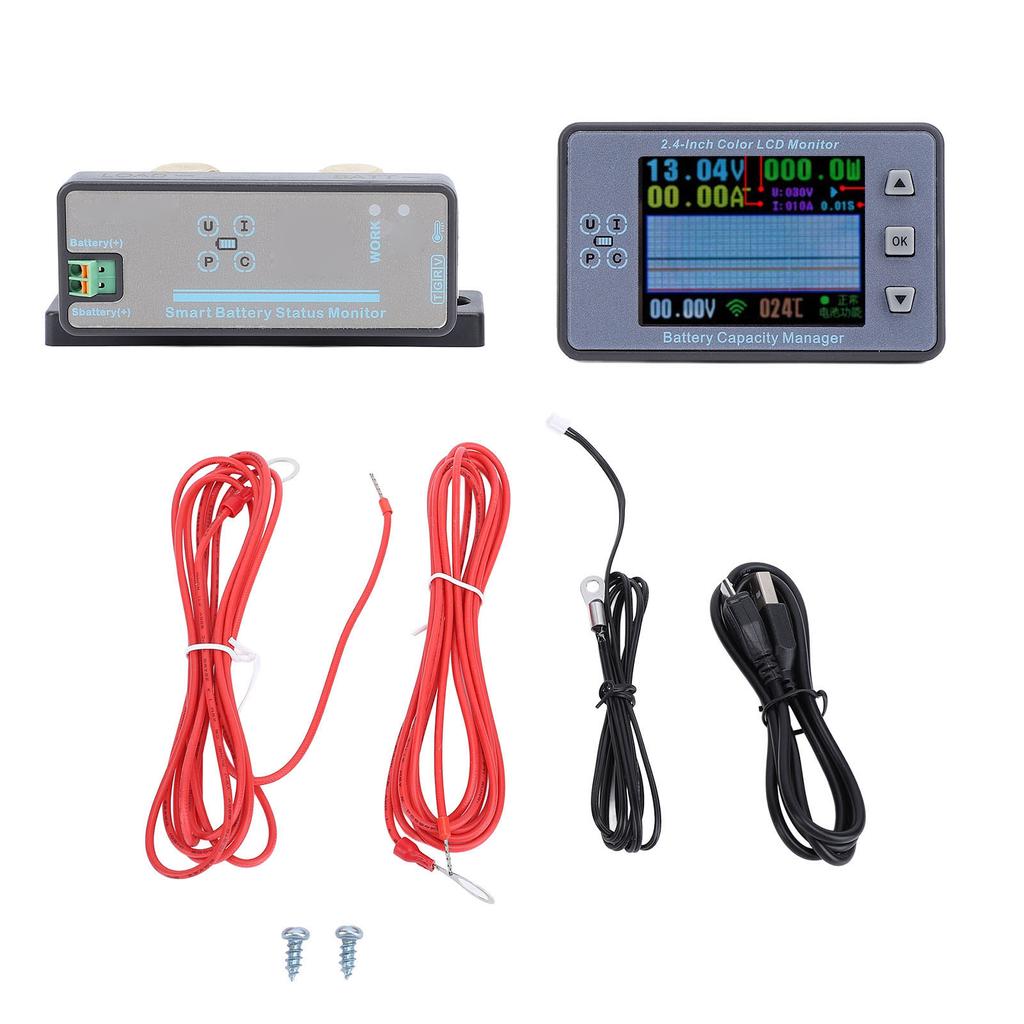

Package List:
1 x Shunt
1 x Display
2 x Voltage Acquisition Lines
1 x USB Cable
1 x Temperature Line
2 x Base Fixing Screws
No-delivery refund
