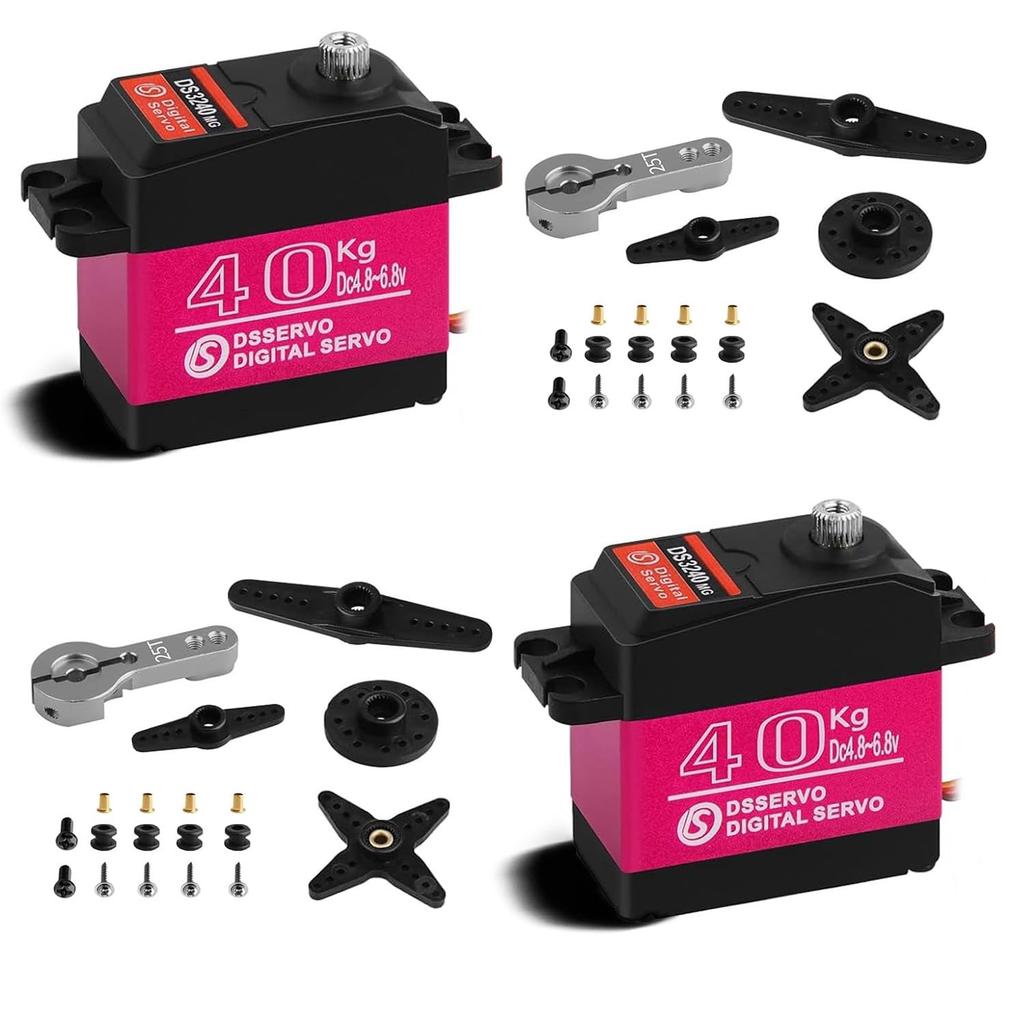

2PCS 40kg Steering Servo High Torque RC Steering Servo Motor Waterproof for 1/8, 1/10, 1/12 Scale Cars and DIY Projects (180 Degrees)

Product Description

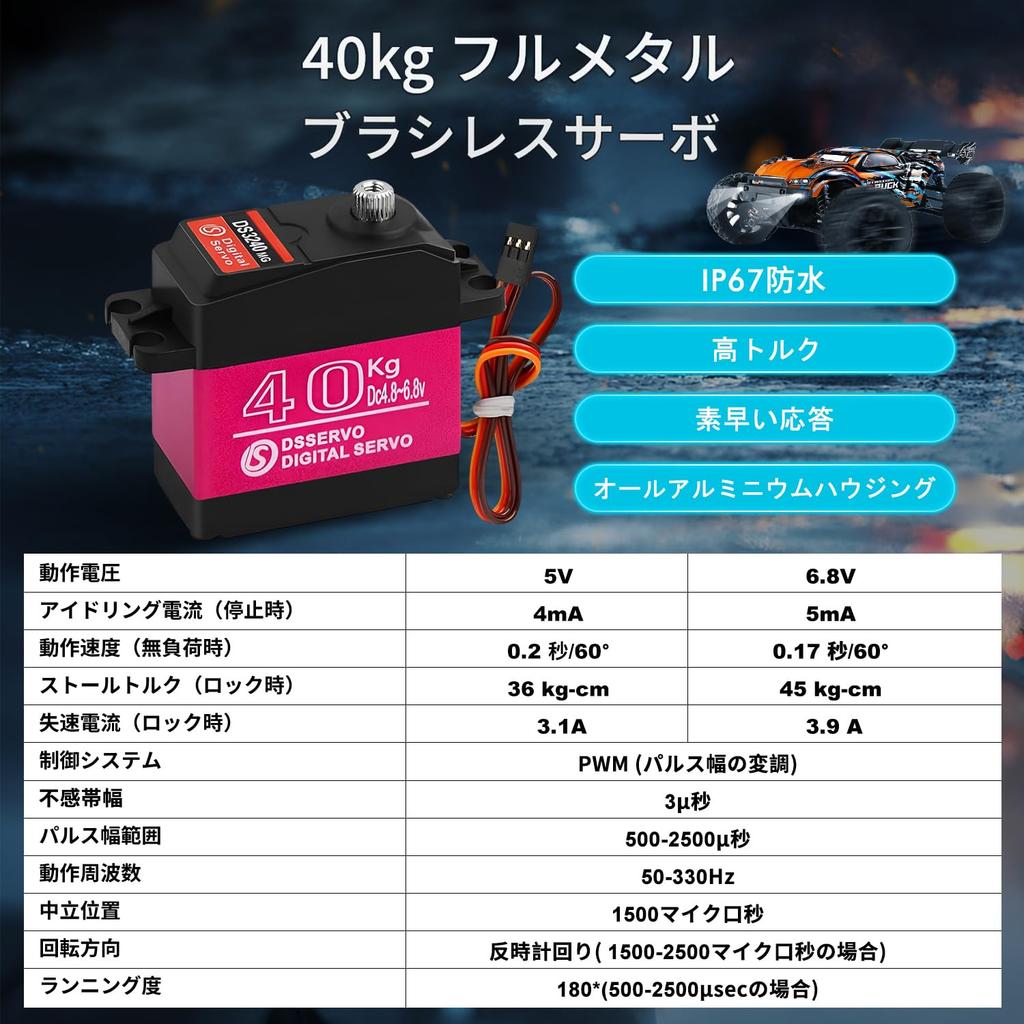

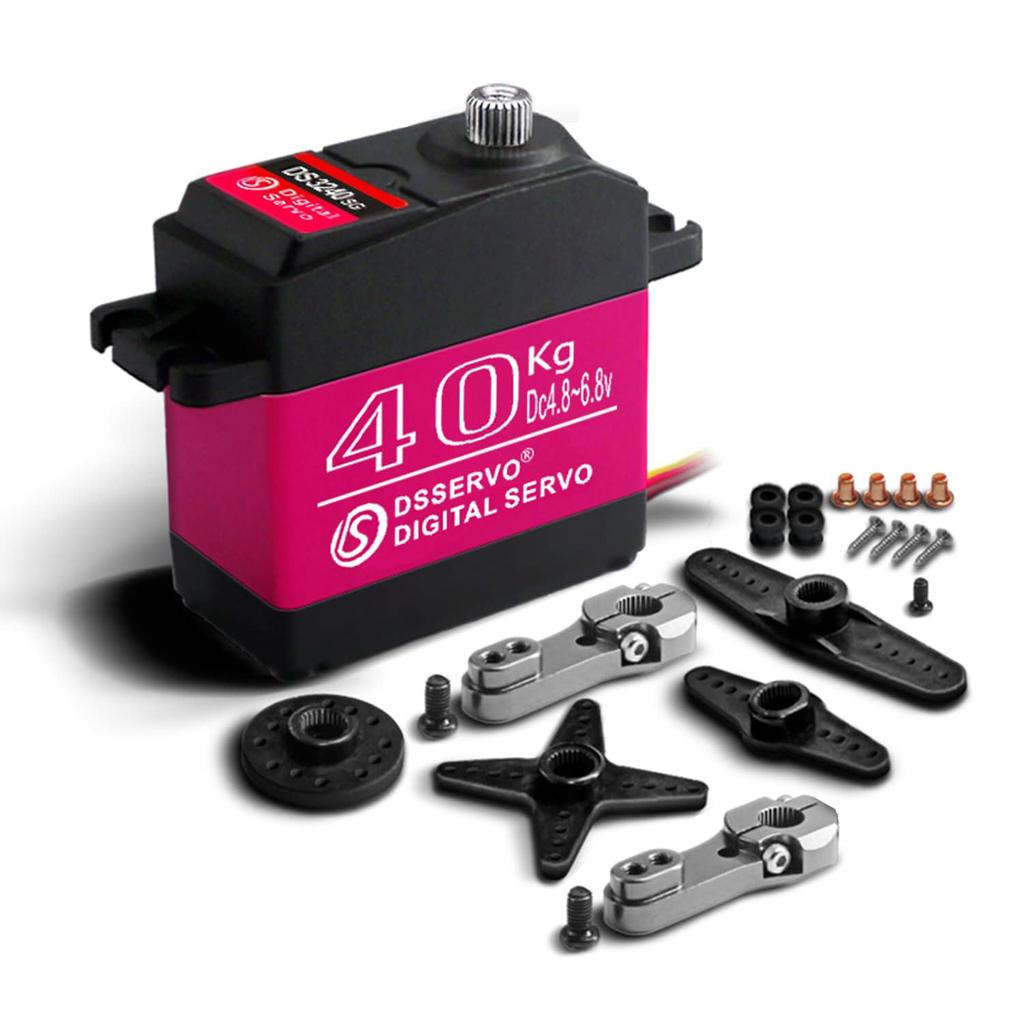

Idle Current (Stopped): 4mA @ 5V, 5mA @ 6.8V Operating Speed ​​(Unloaded): 0.20 sec/60 min @ 5V, 0.17 sec/60 min @ 6.8V Stall Torque (Locked): 36kg-cm @ 5V, 45kg-cm @ 6.8V Stall Current (Locked): 3.1A @ 5V, 3.9A @ 6.8V Control Specifications: Control Method: PWM (Pulse Width Modulation) Pulse Width Range: 500μsec - 2500μsec Neutral Position: 1500μsec Operating Angle: 270° (500μsec - 2500μsec input) Deadband Width: 2μsec Operating Frequency: 50Hz - 330Hz Rotation Direction: Counterclockwise (1500μsec - 2500μsec) Product Specifications: Compatible Models: 1/8, 1/10, 1/12 Scale RC Cars and Trucks Motor Type: Digital RC Servo Spline: 25 Teeth Gear Ratio: 342 Bearings: Double Bearings for Improved Reliability Waterproof Rating: IP67 (Ideal for Off-Road and Wet Conditions) Connector Wire Length: 450mm Dimensions: 40 x 20 x 38.5mm Weight: 60g Certification: CE/RoHS Certified Environmental Requirements: Storage Temperature Range: -30°C to 80°C Operating Temperature Range: -25°C to 70°C Package Contents: 1 x DS3240SG 40kg Servo 1 x 25T Adjustable Metal Servo Arm 1 x Accessory Set (See image)

Safety Warning

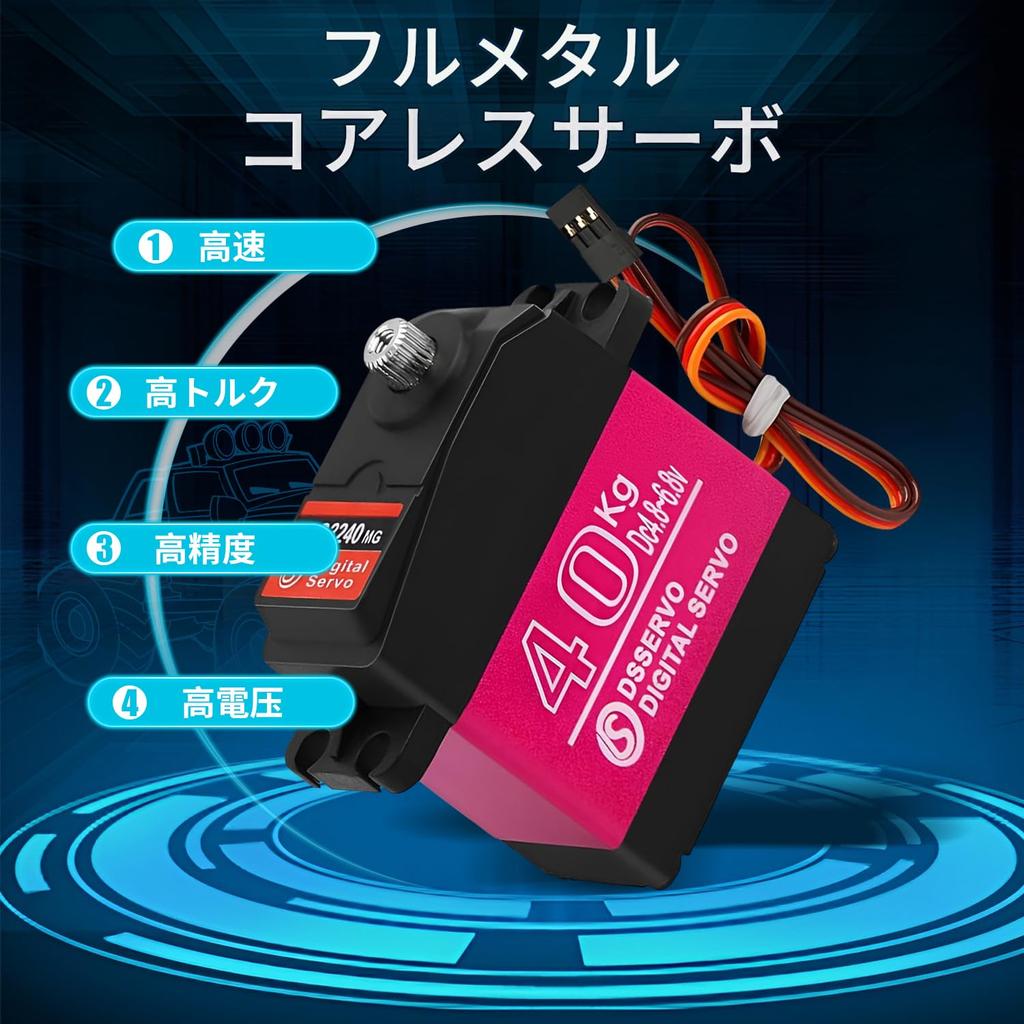

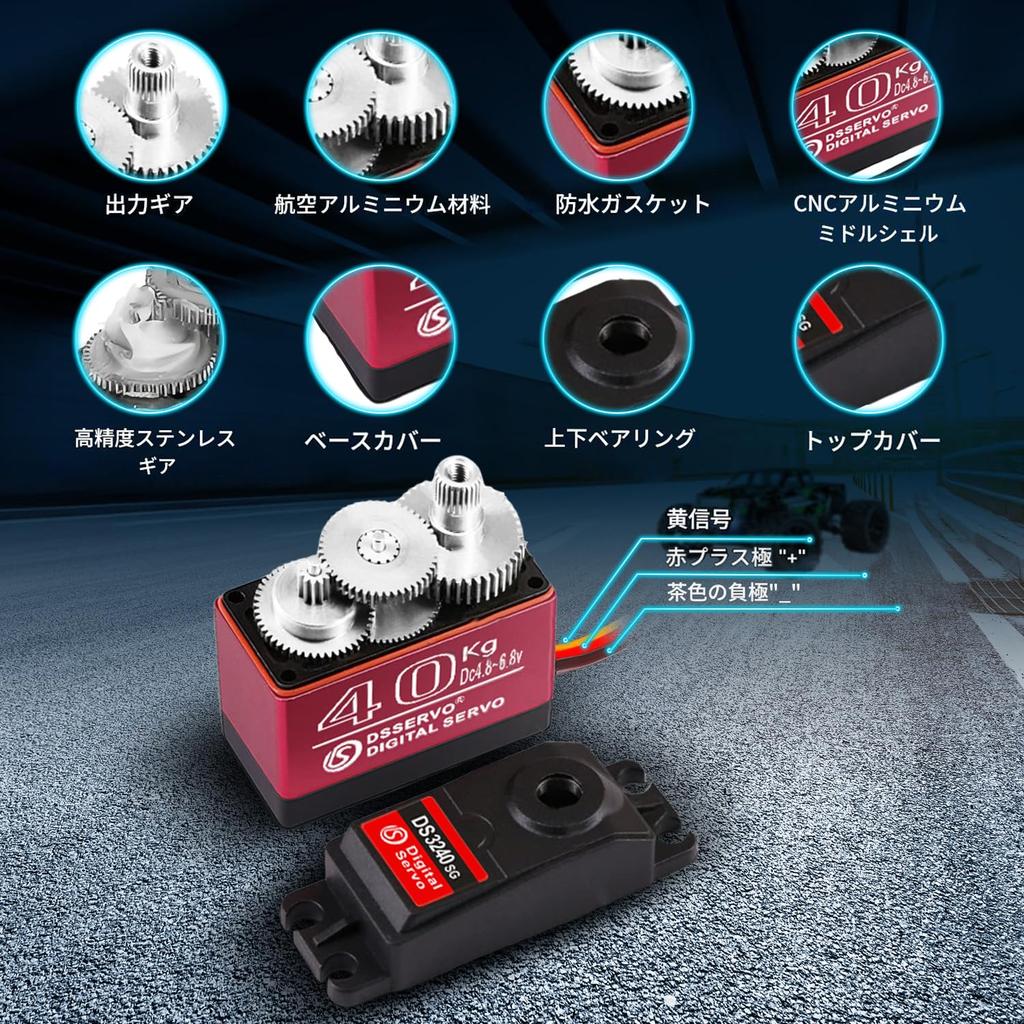

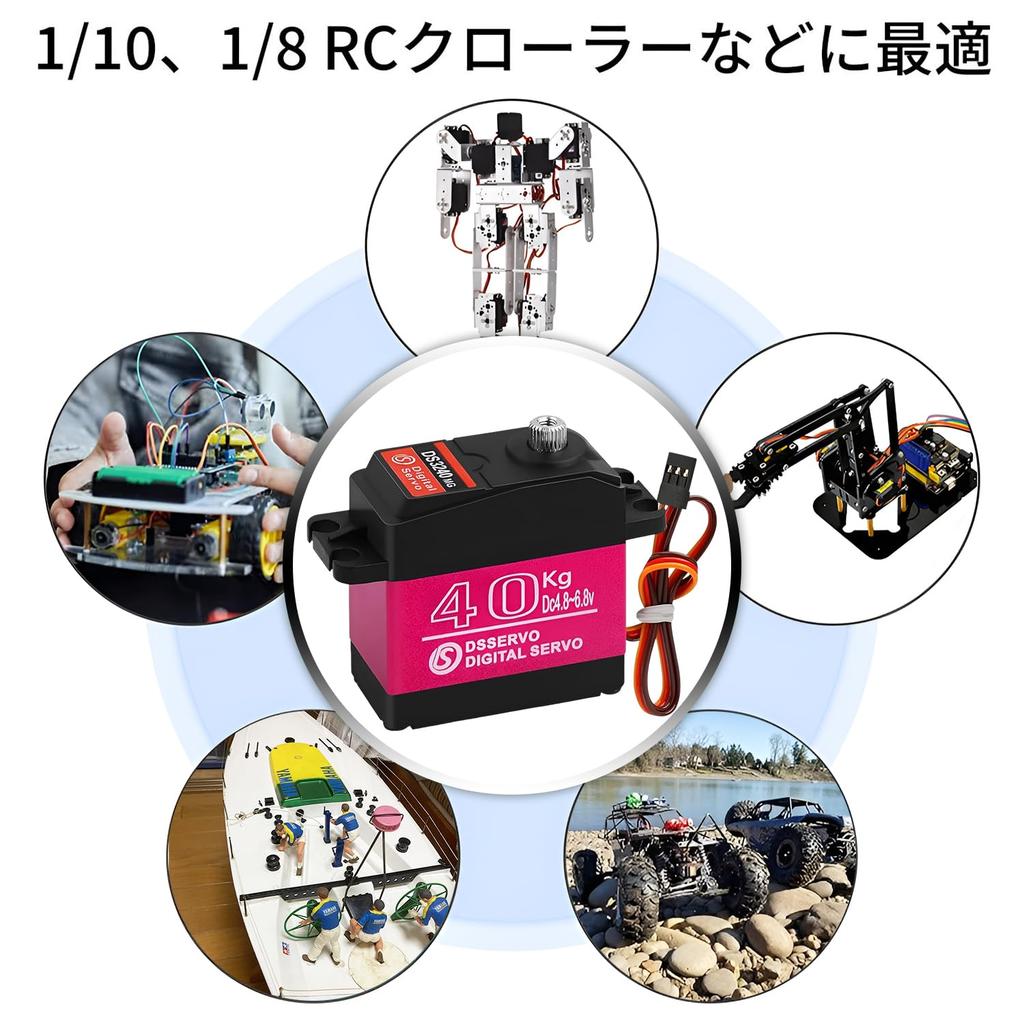

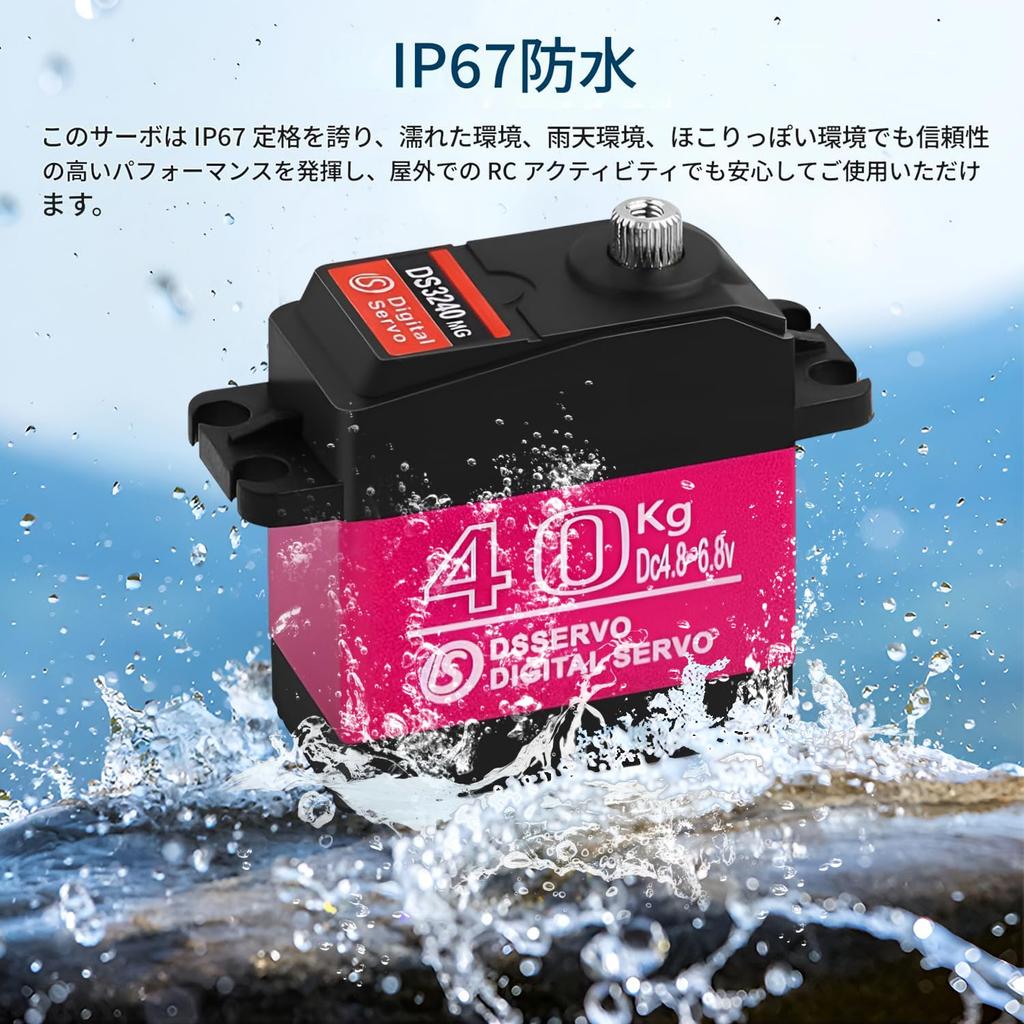

Keep away from sources of ignition. High-torque servo motor: Fast response and maximum torque of 45 kg-cm at 6.8V. Full metal gear RC car servo, quiet servo motor, lightweight, 180°/270° rotation servo. This servo features high-grade stainless steel gears designed for excellent wear resistance and smooth, precise operation. These high-performance gears are designed for long-term reliability, making it ideal for demanding applications. High-resolution digital chips, waterproof rubber seal screws, premium materials, and a CNC aluminum middle shell ensure stable performance and a long operating life. The servo features an IP67-rated waterproof design to prevent water and dust from entering, protecting the internal components and ensuring stable operation. The RC servo is suitable for 1/8, 1/10, and 1/12 scale cars, airboats, RC cars, robots, intelligent DIY projects, rigid wing models, helicopters, and other RC models.
