This 40kg high-torque RC digital servo is ideal for cars, airplanes, and robots.
-High-speed, high-torque digital servo.
-Powerful aluminum gears and iron-core motor.
-Full metal gears.
-CNC aluminum middle shell.
-Low noise and lightweight.
-Stable and waterproof.
Applicable environmental conditions:
Storage temperature range: -30°C to 80°C.
Operating temperature range: -15°C to 70°C.
Operating voltage range: 4.8 to 6.8V.
Mechanical specifications:
Dimensions: 40*20*40.5mm
Weight: 60g
Gear ratio: 275
Bearings: Double bearings
Connector wire: 300±5mm
Motor: 3-pole
Waterproof rating: IP67
Electrical specifications:
Operating voltage: 5V / 6.8V
Idle current (stopped): 4mA-5V / 5mA-6.8V.
Operating Speed (Unloaded): 0.18 sec/60° - 5V, 0.16 sec/60° - 6.8V.
Stall Torque (Locked): 36 kg-cm - 5V, 45 kg-cm - 6.8V.
Stall Current (Locked): 1.9 A - 5V, 2.3 A - 6.8V.

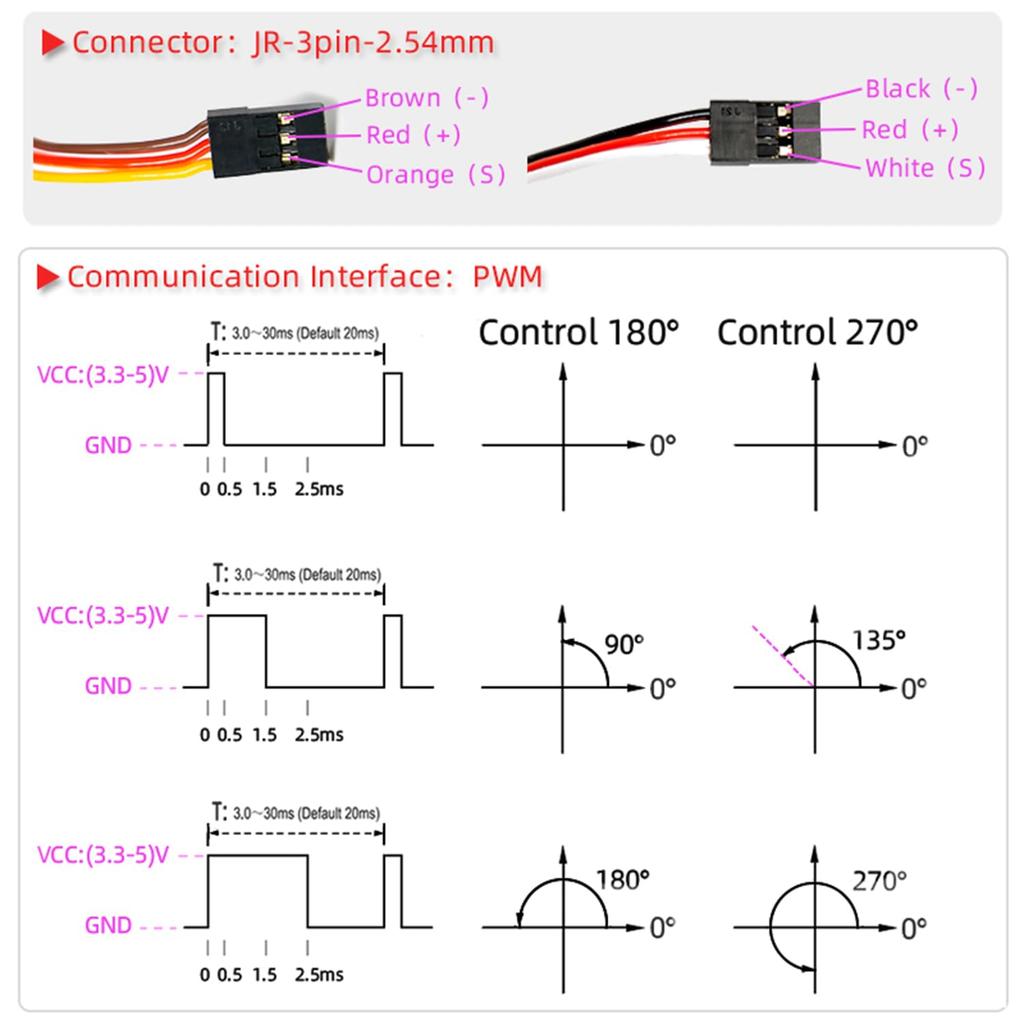

Control Specifications
Control System: PWM (Variable Pulse Width).
Pulse Width Range: 500-2500 µsec
Neutral Position: 1500 µsec.
Travel Angle: 180° (500-2500 µsec)
Deadband Width: 3 µsec.
Operating Frequency: 50-330 Hz.
Rotation Direction: Counterclockwise (500-2500 µsec)
Package Contents:
- 1 x 40KG Waterproof Digital Servo
- 1 x 25T Adjustable Metal Servo Arm.
40KG RC Servo, High Torque, Compatible with 1/8, 1/10, and 1/12 Scale Trucks, RC Cars, Robots, and Boats
This servo features a powerful aluminum gear, iron-core motor, and CNC aluminum middle shell.
Steering Servo Dimensions: 1.57 x 0.78 x 1.59 inches (40 x 20 x 40.5 mm). Weight: 2.64 ounces (75 g).
Waterproof servo, full metal gear, low noise, lightweight, and 180° of travel.
This digital servo is ideal for those interested in developing software for robotic components such as mechanical arms, quadcopter drones, and other remote-controlled devices.
