Label:Yes
Standard interface, can be expanded on various development boards

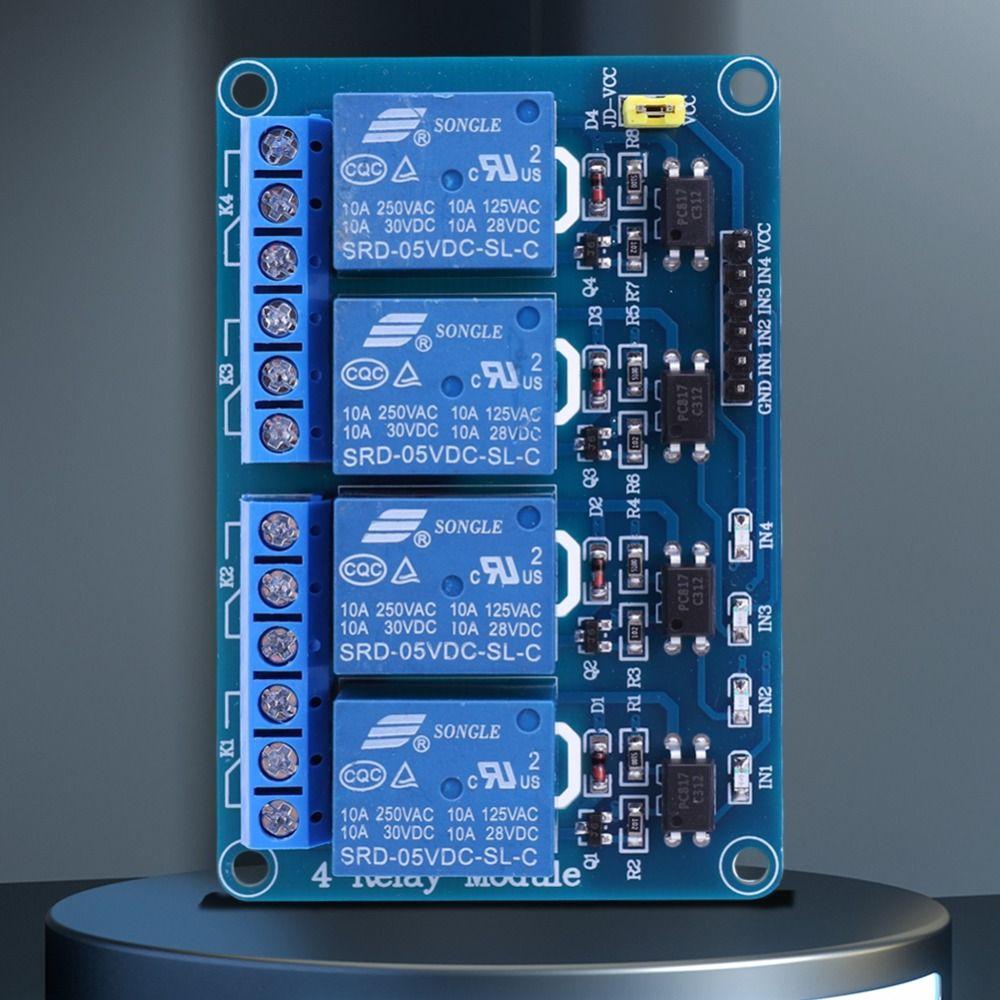

Description: 4-channel relay expansion board
Contact part of the independent wiring, reliable
Adopt high current relay, AC250V 10A DC30V 10A.
Equipped with fixing screw holes for easy installation
Origin: Mainland China
Applicable to 51/AVR/AVR/ARM and other platforms
Model Number: 4 Channel Relay Module
Type(optioanl): 5V, 12V
Condition: New
Can control all kinds of household appliances and high current loads.
Brand new and high quality
Type: Relay
Feature:
1. Versatile Control: The 4 channel relay module is designed to control various household appliances and high-current loads. It features large current relays with AC 250V 10A DC30V 10A, and independent wiring of contact parts for improved reliability.
2. Standard Interface: The 4 channel relay board has a standard interface that makes it easy to expand on various development boards. With its fixed screw hole positions, it's easy to install and ideal for 51/AVR/AVR/ARM and other platforms.
3. Multiple Applications: The expansion board can be used in a range of applications, from home automation and robotics to industrial control systems and IoT devices.
4. High-Quality Materials: Made with high-quality materials that are durable and reliable, the 4 way relay module is built to withstand frequent use and heavy loads.
5. Easy to Use: With simple wiring and easy-to-use features, even users with limited technical experience can quickly set up and start using the 4 way relay module shield.
Module size:
1: 50*25 * 18.5MM
2-way: 50*41 * 17.5MM
4-way: 75*51 * 16.5MM
Module interface:
1. DC +: connect to the positive pole of the power supply (the voltage is in accordance with the requirements of the relay)
2. DC-: connect to the negative pole of the power supply
3. IN: high or low Levcon level control relay snap
Relay output:
1. NO: the relay is normally open. The relay is suspended before being sucked and shorted with COM after being sucked
2. COM: relay common interface
3. NC: Relay normally closed interface, relay shorted with COM before snap-in, suspended after snap-in
high and Low Level trigger selection terminal:
1. When wire jumper and LOW are shorted, it is triggered at LOW level;
2. When the wire jumper and high are shorted, it is triggered at a high level.
Package Including:
1 x Relay Module Board
No-delivery refund
